Styczniki serii DILM-EA
| Producent | EATON ELECTRIC |
| Typ stycznika | 3-biegunowy |
| Montaż | na panel, na szynę DIN |
| Konfiguracja styków | NO x3 |
| Napięcie izolacji | 690V |
| Temperatura pracy | -25...40°C |
| Symbol | Uster | Ipracy max | Wyprowadzenia | Styki pomocnicze | Prąd styków pomocniczych | Wymiary | Seria producenta |
|---|---|---|---|---|---|---|---|
| [A] | [A] | ||||||

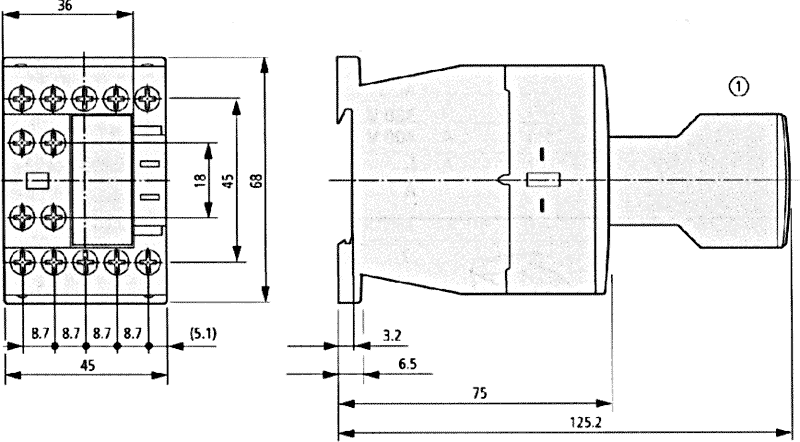

| DILM7-01-230AC-E | 230V AC | 7 | zaciski śrubowe | NC | 10 | Rys. 1. | DILM7 |
| DILM7-01-24DC-E | 24V DC | 7 | zaciski śrubowe | NC | 10 | Rys. 1. | DILM7 |
| DILM7-10-230AC-E | 230V AC | 7 | zaciski śrubowe | NO | 10 | Rys. 1. | DILM7 |
| DILM7-10-24DC-E | 24V DC | 7 | zaciski śrubowe | NO | 10 | Rys. 1. | DILM7 |
| DILM7-01-230AC-PI | 230V AC | 7 | zaciski push-in | NC | 10 | - | DILM7 |
| DILM7-01-24AC-PI | 24V AC | 7 | zaciski push-in | NC | 10 | - | DILM7 |
| DILM7-01-24DC-PI | 24V DC | 7 | zaciski push-in | NC | 10 | - | DILM7 |
| DILM7-10-230AC-PI | 230V AC | 7 | zaciski push-in | NO | 10 | - | DILM7 |
| DILM7-10-24AC-PI | 24V AC | 7 | zaciski push-in | NO | 10 | - | DILM7 |
| DILM7-10-24DC-PI | 24V DC | 7 | zaciski push-in | NO | 10 | - | DILM7 |
| DILM9-01-230AC-E | 230V AC | 9 | zaciski śrubowe | NC | 10 | Rys. 1. | DILM9 |
| DILM9-01-24DC-E | 24V DC | 9 | zaciski śrubowe | NC | 10 | Rys. 1. | DILM9 |
| DILM9-10-230AC-E | 230V AC | 9 | zaciski śrubowe | NO | 10 | Rys. 1. | DILM9 |
| DILM9-10-24DC-E | 24V DC | 9 | zaciski śrubowe | NO | 10 | Rys. 1. | DILM9 |
| DILM9-01-230AC-PI | 230V AC | 9 | zaciski push-in | NC | 10 | - | DILM9 |
| DILM9-01-24AC-PI | 24V AC | 9 | zaciski push-in | NC | 10 | - | DILM9 |
| DILM9-01-24DC-PI | 24V DC | 9 | zaciski push-in | NC | 10 | - | DILM9 |
| DILM9-10-230AC-PI | 230V AC | 9 | zaciski push-in | NO | 10 | - | DILM9 |
| DILM9-10-24AC-PI | 24V AC | 9 | zaciski push-in | NO | 10 | - | DILM9 |
| DILM9-10-24DC-PI | 24V DC | 9 | zaciski push-in | NO | 10 | - | DILM9 |
| DILM12-01-230AC-E | 230V AC | 12 | zaciski śrubowe | NC | 10 | Rys. 1. | DILM12 |
| DILM12-01-24DC-E | 24V DC | 12 | zaciski śrubowe | NC | 10 | Rys. 1. | DILM12 |
| DILM12-10-230AC-E | 230V AC | 12 | zaciski śrubowe | NO | 10 | Rys. 1. | DILM12 |
| DILM12-10-24DC-E | 24V DC | 12 | zaciski śrubowe | NO | 10 | Rys. 1. | DILM12 |
| DILM12-01-230AC-PI | 230V AC | 12 | zaciski push-in | NC | 10 | - | DILM12 |
| DILM12-01-24AC-PI | 24V AC | 12 | zaciski push-in | NC | 10 | - | DILM12 |
| DILM12-01-24DC-PI | 24V DC | 12 | zaciski push-in | NC | 10 | - | DILM12 |
| DILM12-10-230AC-PI | 230V AC | 12 | zaciski push-in | NO | 10 | - | DILM12 |
| DILM12-10-24AC-PI | 24V AC | 12 | zaciski push-in | NO | 10 | - | DILM12 |
| DILM12-10-24DC-PI | 24V DC | 12 | zaciski push-in | NO | 10 | - | DILM12 |

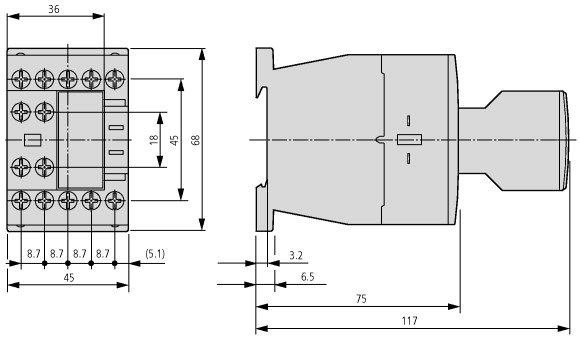

| DILM15-01-230AC-E | 230V AC | 15 | zaciski śrubowe | NC | 10 | Rys. 2. | DILM15 |
| DILM15-01-24DC-E | 24V DC | 15 | zaciski śrubowe | NC | 10 | Rys. 2. | DILM15 |
| DILM15-10-230AC-E | 230V AC | 15 | zaciski śrubowe | NO | 10 | Rys. 2. | DILM15 |
| DILM15-10-24DC-E | 24V DC | 15 | zaciski śrubowe | NO | 10 | Rys. 2. | DILM15 |
| DILM15-01-230AC-PI | 230V AC | 15 | zaciski push-in | NC | 10 | - | DILM15 |
| DILM15-01-24DC-PI | 24V DC | 15 | zaciski push-in | NC | 10 | - | DILM15 |
| DILM15-10-230AC-PI | 230V AC | 15 | zaciski push-in | NO | 10 | - | DILM15 |
| DILM15-10-24AC-PI | 24V AC | 15 | zaciski push-in | NO | 10 | - | DILM15 |
| DILM15-10-24DC-PI | 24V DC | 15 | zaciski push-in | NO | 10 | - | DILM15 |

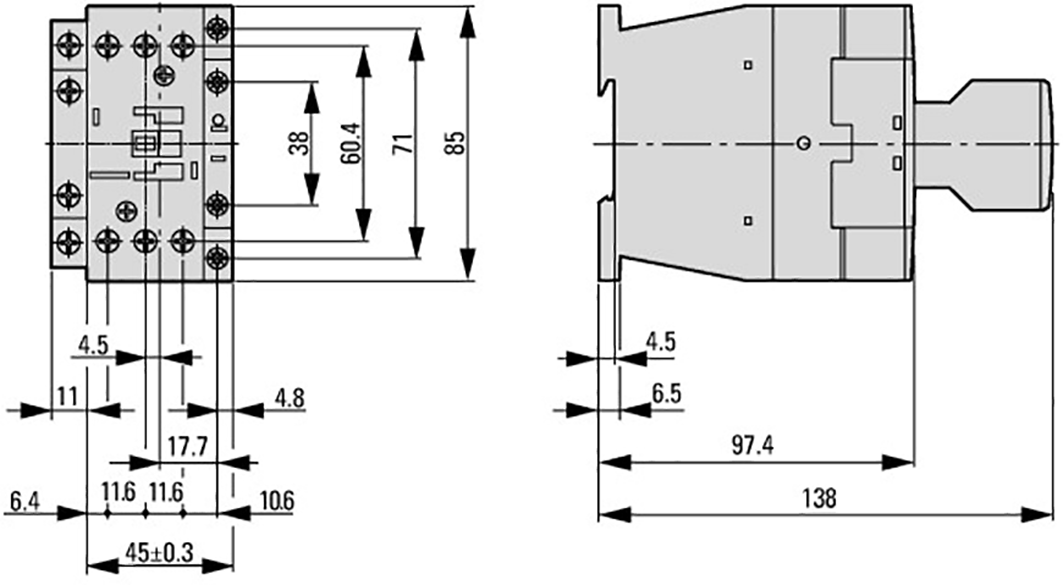

| DILM17-01-230AC-E | 230V AC | 17 | zaciski śrubowe | NC | 10 | Rys. 3. | DILM17 |
| DILM17-01-24DC-E | 24V DC | 17 | zaciski śrubowe | NC | 10 | Rys. 3. | DILM17 |
| DILM17-10-230AC-E | 230V AC | 17 | zaciski śrubowe | NO | 10 | Rys. 3. | DILM17 |
| DILM17-10-24DC-E | 24V DC | 17 | zaciski śrubowe | NO | 10 | Rys. 3. | DILM17 |
| DILM17-11-230AC-PI | 230V AC | 17 | zaciski push-in | NC + NO | 10 | - | DILM17 |
| DILM17-11-24AC-PI | 24V AC | 17 | zaciski push-in | NC + NO | 10 | - | DILM17 |
| DILM17-11-24DC-PI | 24V DC | 17 | zaciski push-in | NC + NO | 10 | - | DILM17 |
| DILM25-01-230AC-E | 230V AC | 25 | zaciski śrubowe | NC | 10 | Rys. 3. | DILM25 |
| DILM25-01-24DC-E | 24V DC | 25 | zaciski śrubowe | NC | 10 | Rys. 3. | DILM25 |
| DILM25-10-230AC-E | 230V AC | 25 | zaciski śrubowe | NO | 10 | Rys. 3. | DILM25 |
| DILM25-10-24DC-E | 24V DC | 25 | zaciski śrubowe | NO | 10 | Rys. 3. | DILM25 |
| DILM25-11-230AC-PI | 230V AC | 25 | zaciski push-in | NC + NO | 10 | - | DILM25 |
| DILM25-11-24AC-PI | 24V AC | 25 | zaciski push-in | NC + NO | 10 | - | DILM25 |
| DILM25-11-24DC-PI | 24V DC | 25 | zaciski push-in | NC + NO | 10 | - | DILM25 |
| DILM32-01-230AC-E | 230V AC | 32 | zaciski śrubowe | NC | 10 | Rys. 3. | DILM32 |
| DILM32-01-24DC-E | 24V DC | 32 | zaciski śrubowe | NC | 10 | Rys. 3. | DILM32 |
| DILM32-10-230AC-E | 230V AC | 32 | zaciski śrubowe | NO | 10 | Rys. 3. | DILM32 |
| DILM32-10-24DC-E | 24V DC | 32 | zaciski śrubowe | NO | 10 | Rys. 3. | DILM32 |
| DILM32-11-230AC-PI | 230V AC | 32 | zaciski push-in | NC + NO | 10 | - | DILM32 |
| DILM32-11-24AC-PI | 24V AC | 32 | zaciski push-in | NC + NO | 10 | - | DILM32 |
| DILM32-11-24DC-PI | 24V DC | 32 | zaciski push-in | NC + NO | 10 | - | DILM32 |
| DILM38-01-230AC-E | 230V AC | 38 | zaciski śrubowe | NC | 10 | Rys. 4. | DILM38 |
| DILM38-01-24DC-E | 24V DC | 38 | zaciski śrubowe | NC | 10 | Rys. 4. | DILM38 |
| DILM38-10-230AC-E | 230V AC | 38 | zaciski śrubowe | NO | 10 | Rys. 4. | DILM38 |
| DILM38-10-24DC-E | 24V DC | 38 | zaciski śrubowe | NO | 10 | Rys. 4. | DILM38 |

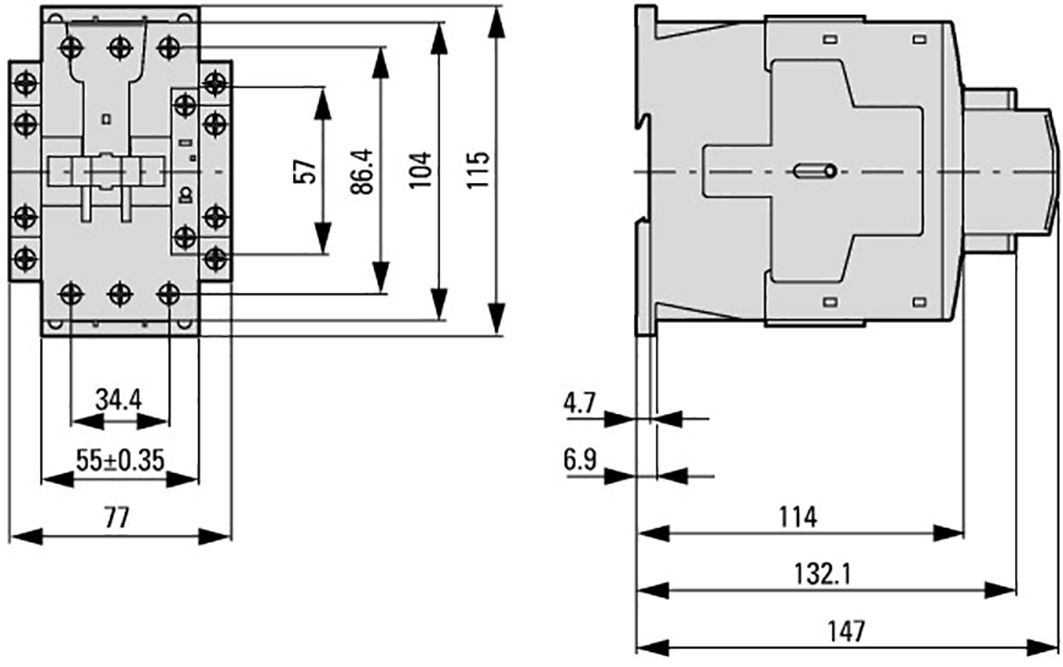

| DILM40-230AC-E | 230V AC | 40 | zaciski śrubowe | - | - | Rys. 5. | DILM40 |
| DILM40-24DC-E | 24V DC | 40 | zaciski śrubowe | - | - | Rys. 5. | DILM40 |
| DILM50-230AC-E | 230V AC | 50 | zaciski śrubowe | - | - | Rys. 5. | DILM50 |
| DILM50-24DC-E | 24V DC | 50 | zaciski śrubowe | - | - | Rys. 5. | DILM50 |
| DILM65-230AC-E | 230V AC | 65 | zaciski śrubowe | - | - | Rys. 5. | DILM65 |
| DILM65-24DC-E | 24V DC | 65 | zaciski śrubowe | - | - | Rys. 5. | DILM65 |
| DILM72-230AC-E | 230V AC | 72 | zaciski śrubowe | - | - | Rys. 6. | DILM72 |
| DILM72-24DC-E | 24V DC | 72 | zaciski śrubowe | - | - | Rys. 6. | DILM72 |

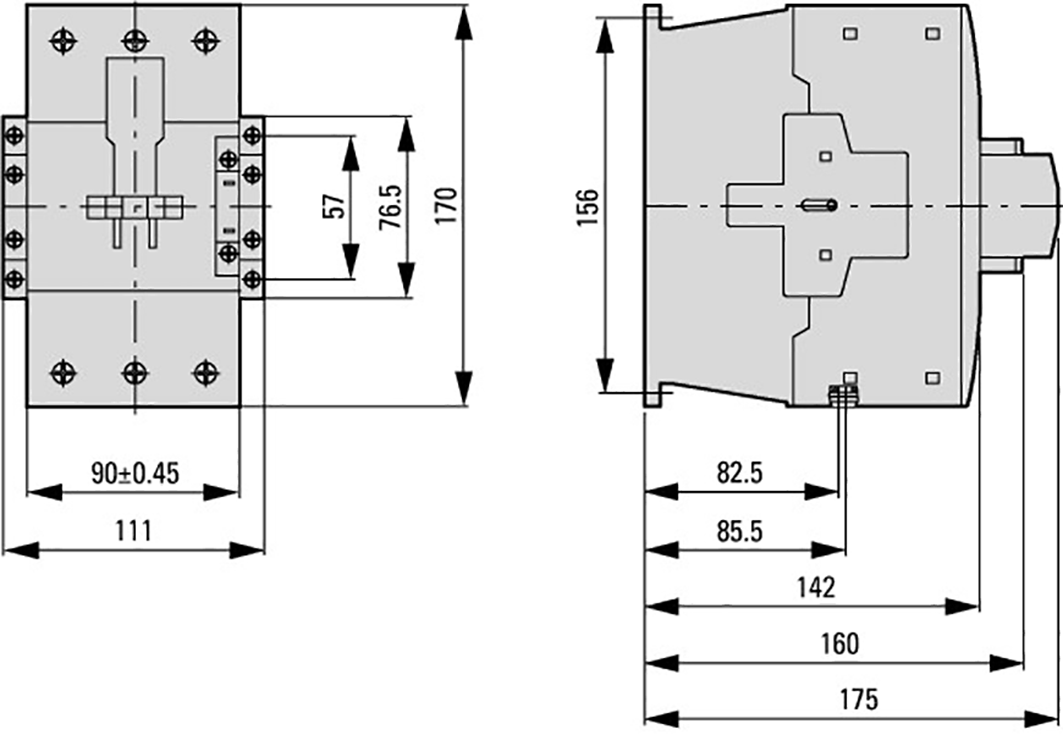

| DILM80-230AC-E | 230V AC | 80 | zaciski śrubowe | - | - | Rys. 7. | DILM80 |
| DILM80-24DC-E | 24V DC | 80 | zaciski śrubowe | - | - | Rys. 7. | DILM80 |
| DILM95-230AC-E | 230V AC | 95 | zaciski śrubowe | - | - | Rys. 7. | DILM95 |
| DILM95-24DC-E | 24V DC | 95 | zaciski śrubowe | - | - | Rys. 7. | DILM95 |
| DILM115-230AC-E | 230V AC | 115 | zaciski śrubowe | - | - | Rys. 7. | DILM115 |
| DILM115-24DC-E | 24V DC | 115 | zaciski śrubowe | - | - | Rys. 7. | DILM115 |
| DILM150-230AC-E | 230V AC | 150 | zaciski śrubowe | - | - | Rys. 7. | DILM150 |
| DILM150-24DC-E | 24V DC | 150 | zaciski śrubowe | - | - | Rys. 7. | DILM150 |
| DILM170-230AC-E | 230V AC | 170 | zaciski śrubowe | - | - | Rys. 7. | DILM170 |
| DILM170-24DC-E | 24V DC | 170 | zaciski śrubowe | - | - | Rys. 7. | DILM170 |
