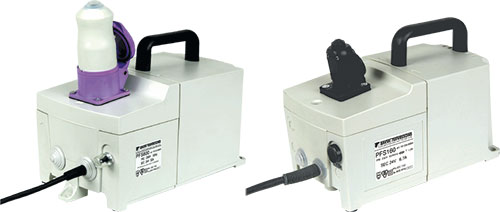

Transformator: ochronny; IP44; BREVE TUFVASSONS
| Typ transformatora | ochronny |
| Wyprowadzenia uzwojenia pierwotnego | przewód OW2x1-2m |
| Klasa izolacji | II |
| Zgodność z normą | PN EN 61558-2-4 PN EN 61558-2-6 |
| Klasa szczelności | IP44 |
| Klasa cieplna | Ta40B |

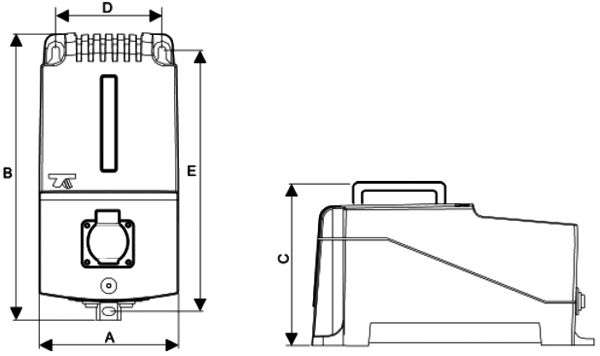

| Wymiary | Rys. 1. |
| Symbol | Moc | Upierw | Uwtórne 1 | Wymiary zewnętrzne |
|---|---|---|---|---|
| [VA] | [V AC] | [V] | [mm] | |
| PFS100/230/24V | 100 | 230 | 24 | 90x175x125 |
| PFS120/230/12V | 120 | 230 | 12 | 96x166x111 |
| PFS120/230/24V | 120 | 230 | 24 | 96x166x111 |
| PFS120/230/36V | 120 | 230 | 36 | 96x166x111 |
| PFS160/230/24V | 160 | 230 | 24 | 105x200x140 |
| PFS160/230/230V | 160 | 230 | 230 | 105x200x140 |
| PFS250/230/12V | 250 | 230 | 12 | 105x200x140 |
| PFS250/230/24V | 250 | 230 | 24 | 105x200x140 |
| PFS250/230/36V | 250 | 230 | 36 | 105x200x140 |
| PFS250/230/230V | 250 | 230 | 230 | 105x200x140 |
| PFS630/230/24V | 630 | 230 | 24 | 146x272x178 |
| PFS630/230/230V | 630 | 230 | 230 | 146x272x178 |
| PFS800/230/24V | 800 | 230 | 24 | 146x272x178 |
Wypr. uzw. wtórnego:
- gniazdo PCE 104-0b (PFSxx0/230/230V)
- gniazdo PCE 372f5 + wtyk PCE 072v (PFS630/230/24V, PFS800/230/24V)
