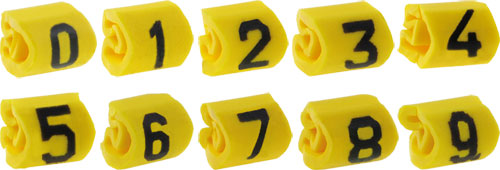

Kabelmärkningar HELAGRIP
| Tillverkare | HELLERMANNTYTON |
| Kabeltillbehör | markörer |
| Material | PVC |
| Arbetstemperatur | -65...105°C |
| Mekaniskt montage | hålmontage |
| Handelsnamn | Helagrip |
| Användning av kabeltillbehör | kablar och ledare |
| Symbol | Längd | Färg | Øext. kabel | Märkning | Tillverkarens beteckning | Tillverkarens serie |
|---|---|---|---|---|---|---|
| [mm] | [mm] | |||||
| 515-01604 | 3,5 | gul | 1...3 | 0 | 515-01604 | HGDC1-3 |
| 515-01614 | 3,5 | gul | 1...3 | 1 | 515-01614 | HGDC1-3 |
| 515-01624 | 3,5 | gul | 1...3 | 2 | 515-01624 | HGDC1-3 |
| 515-01634 | 3,5 | gul | 1...3 | 3 | 515-01634 | HGDC1-3 |
| 515-01644 | 3,5 | gul | 1...3 | 4 | 515-01644 | HGDC1-3 |
| 515-01654 | 3,5 | gul | 1...3 | 5 | 515-01654 | HGDC1-3 |
| 515-01664 | 3,5 | gul | 1...3 | 6 | 515-01664 | HGDC1-3 |
| 515-01674 | 3,5 | gul | 1...3 | 7 | 515-01674 | HGDC1-3 |
| 515-01684 | 3,5 | gul | 1...3 | 8 | 515-01684 | HGDC1-3 |
| 515-01694 | 3,5 | gul | 1...3 | 9 | 515-01694 | HGDC1-3 |
| HGDC1-3-J-PVC-YE | 3,5 | gul | 1...3 | J | 515-01104 | HGDC1-3 |
| HGDC1-3-X-PVC-YE | 3,5 | gul | 1...3 | X | 515-01244 | HGDC1-3 |
| HGDC2-5-0-PVC-YE | 3,5 | gul | 2...5 | 0 | 515-02604 | HGDC2-5 |
| HGDC2-5-1-PVC-YE | 3,5 | gul | 2...5 | 1 | 515-02614 | HGDC2-5 |
| HGDC2-5-2-PVC-YE | 3,5 | gul | 2...5 | 2 | 515-02624 | HGDC2-5 |
| HGDC2-5-3-PVC-YE | 3,5 | gul | 2...5 | 3 | 515-02634 | HGDC2-5 |
| HGDC2-5-4-PVC-YE | 3,5 | gul | 2...5 | 4 | 515-02644 | HGDC2-5 |
| HGDC2-5-5-PVC-YE | 3,5 | gul | 2...5 | 5 | 515-02654 | HGDC2-5 |
| HGDC2-5-6-PVC-YE | 3,5 | gul | 2...5 | 6 | 515-02664 | HGDC2-5 |
| HGDC2-5-7-PVC-YE | 3,5 | gul | 2...5 | 7 | 515-02674 | HGDC2-5 |
| HGDC2-5-8-PVC-YE | 3,5 | gul | 2...5 | 8 | 515-02684 | HGDC2-5 |
| HGDC2-5-9-PVC-YE | 3,5 | gul | 2...5 | 9 | 515-02694 | HGDC2-5 |
| HGDC2-5-A-PVC-YE | 3,5 | gul | 2...5 | A | 515-02014 | HGDC2-5 |
| HGDC2-5-B-PVC-YE | 3,5 | gul | 2...5 | B | 515-02024 | HGDC2-5 |
| HGDC2-5-E-PVC-YE | 3,5 | gul | 2...5 | E | 515-02054 | HGDC2-5 |
| HGDC2-5-I-PVC-YE | 3,5 | gul | 2...5 | I | 515-02094 | HGDC2-5 |
| HGDC2-5-L-PVC-YE | 3,5 | gul | 2...5 | L | 515-02124 | HGDC2-5 |
| HGDC2-5-N-PVC-YE | 3,5 | gul | 2...5 | N | 515-02144 | HGDC2-5 |
| HGDC2-5-P-PVC-YE | 3,5 | gul | 2...5 | P | 515-02164 | HGDC2-5 |
| HGDC2-5-X-PVC-YE | 3,5 | gul | 2...5 | X | 515-02244 | HGDC2-5 |
| HGDC1-3.-PVC-YE | 3,5 | gul | 1...3 | . | 515-01804 | HGDC1-3 |
| HGDC1-3/-PVC-YE | 3,5 | gul | 1...3 | / | 515-01724 | HGDC1-3 |
| HGDC1-3+-PVC-YE | 3,5 | gul | 1...3 | + | 515-01704 | HGDC1-3 |
| HGDC1-30-PVC-BK | 3,5 | svart | 1...3 | 0 | 515-01600 | HGDC1-3 |
| HGDC1-31-PVC-BN | 3,5 | brun | 1...3 | 1 | 515-01611 | HGDC1-3 |
| HGDC1-32-PVC-RD | 3,5 | röd | 1...3 | 2 | 515-01622 | HGDC1-3 |
| HGDC1-33-PVC-OG | 3,5 | orange | 1...3 | 3 | 515-01633 | HGDC1-3 |
| HGDC1-35-PVC-GN | 3,5 | grön | 1...3 | 5 | 515-01655 | HGDC1-3 |
| HGDC1-36-PVC-BU | 3,5 | blå | 1...3 | 6 | 515-01666 | HGDC1-3 |
| HGDC1-37-PVC-VT | 3,5 | violet | 1...3 | 7 | 515-01677 | HGDC1-3 |
| HGDC1-38-PVC-GY | 3,5 | grå | 1...3 | 8 | 515-01688 | HGDC1-3 |
| HGDC1-3A-PVC-YE | 3,5 | gul | 1...3 | A | 515-01014 | HGDC1-3 |
| HGDC1-3B-PVC-YE | 3,5 | gul | 1...3 | B | 515-01024 | HGDC1-3 |
| HGDC1-3C-PVC-YE | 3,5 | gul | 1...3 | C | 515-01034 | HGDC1-3 |
| HGDC1-3D-PVC-YE | 3,5 | gul | 1...3 | D | 515-01044 | HGDC1-3 |
| HGDC1-3EARTH-YE | 3,5 | gul | 1...3 | jord | 515-01734 | HGDC1-3 |
| HGDC1-3E-PVC-YE | 3,5 | gul | 1...3 | E | 515-01054 | HGDC1-3 |
| HGDC1-3F-PVC-YE | 3,5 | gul | 1...3 | F | 515-01064 | HGDC1-3 |
| HGDC1-3G-PVC-YE | 3,5 | gul | 1...3 | G | 515-01074 | HGDC1-3 |
| HGDC1-3H-PVC-YE | 3,5 | gul | 1...3 | H | 515-01084 | HGDC1-3 |
| HGDC1-3I-PVC-YE | 3,5 | gul | 1...3 | I | 515-01094 | HGDC1-3 |
| HGDC1-3K-PVC-YE | 3,5 | gul | 1...3 | K | 515-01114 | HGDC1-3 |
| HGDC1-3L-PVC-YE | 3,5 | gul | 1...3 | L | 515-01124 | HGDC1-3 |
| HGDC1-3M-PVC-YE | 3,5 | gul | 1...3 | M | 515-01134 | HGDC1-3 |
| HGDC1-3N-PVC-YE | 3,5 | gul | 1...3 | N | 515-01144 | HGDC1-3 |
| HGDC1-3O-PVC-YE | 3,5 | gul | 1...3 | O | 515-01154 | HGDC1-3 |
| HGDC1-3P-PVC-YE | 3,5 | gul | 1...3 | P | 515-01164 | HGDC1-3 |
| HGDC1-3Q-PVC-YE | 3,5 | gul | 1...3 | Q | 515-01174 | HGDC1-3 |
| HGDC1-3R-PVC-YE | 3,5 | gul | 1...3 | R | 515-01184 | HGDC1-3 |
| HGDC1-3S-PVC-YE | 3,5 | gul | 1...3 | S | 515-01194 | HGDC1-3 |
| HGDC1-3T-PVC-YE | 3,5 | gul | 1...3 | T | 515-01204 | HGDC1-3 |
| HGDC1-3U-PVC-YE | 3,5 | gul | 1...3 | U | 515-01214 | HGDC1-3 |
| HGDC1-3V-PVC-YE | 3,5 | gul | 1...3 | V | 515-01224 | HGDC1-3 |
| HGDC1-3W-PVC-YE | 3,5 | gul | 1...3 | W | 515-01234 | HGDC1-3 |
| HGDC1-3Y-PVC-YE | 3,5 | gul | 1...3 | Y | 515-01254 | HGDC1-3 |
| HGDC1-3Z-PVC-YE | 3,5 | gul | 1...3 | Z | 515-01264 | HGDC1-3 |
| HGDC2-5.-PVC-YE | 3,5 | gul | 2...5 | . | 515-02715 | HGDC2-5 |
| HGDC2-5/-PVC-YE | 3,5 | gul | 2...5 | / | 515-02724 | HGDC2-5 |
| HGDC2-5+-PVC-YE | 3,5 | gul | 2...5 | + | 515-02704 | HGDC2-5 |
| HGDC2-50-PVC-BK | 3,5 | svart | 2...5 | 0 | 515-02600 | HGDC2-5 |
| HGDC2-51-PVC-BN | 3,5 | brun | 2...5 | 1 | 515-02611 | HGDC2-5 |
| HGDC2-52-PVC-RD | 3,5 | röd | 2...5 | 2 | 515-02622 | HGDC2-5 |
| HGDC2-53-PVC-OG | 3,5 | orange | 2...5 | 3 | 515-02633 | HGDC2-5 |
| HGDC2-55-PVC-GN | 3,5 | grön | 2...5 | 5 | 515-02655 | HGDC2-5 |
| HGDC2-56-PVC-BU | 3,5 | blå | 2...5 | 6 | 515-02666 | HGDC2-5 |
| HGDC2-57-PVC-VT | 3,5 | violet | 2...5 | 7 | 515-02677 | HGDC2-5 |
| HGDC2-58-PVC-GY | 3,5 | grå | 2...5 | 8 | 515-02688 | HGDC2-5 |
| HGDC2-5C-PVC-YE | 3,5 | gul | 2...5 | C | 515-02034 | HGDC2-5 |
| HGDC2-5D-PVC-YE | 3,5 | gul | 2...5 | D | 515-02044 | HGDC2-5 |
| HGDC2-5EARTH-YE | 3,5 | gul | 2...5 | - | 515-02734 | HGDC2-5 |
| HGDC2-5F-PVC-YE | 3,5 | gul | 2...5 | F | 515-02064 | HGDC2-5 |
| HGDC2-5G-PVC-YE | 3,5 | gul | 2...5 | G | 515-02074 | HGDC2-5 |
| HGDC2-5H-PVC-YE | 3,5 | gul | 2...5 | H | 515-02084 | HGDC2-5 |
| HGDC2-5J-PVC-YE | 3,5 | gul | 2...5 | J | 515-02104 | HGDC2-5 |
| HGDC2-5K-PVC-YE | 3,5 | gul | 2...5 | K | 515-02114 | HGDC2-5 |
| HGDC2-5M-PVC-YE | 3,5 | gul | 2...5 | M | 515-02134 | HGDC2-5 |
| HGDC2-5O-PVC-YE | 3,5 | gul | 2...5 | O | 515-02154 | HGDC2-5 |
| HGDC2-5-PVC-YE | 3,5 | gul | 2...5 | P | 515-02714 | HGDC2-5 |
| HGDC2-5S-PVC-YE | 3,5 | gul | 2...5 | S | 515-02194 | HGDC2-5 |
| HGDC2-5T-PVC-YE | 3,5 | gul | 2...5 | T | 515-02204 | HGDC2-5 |
| HGDC2-5V-PVC-YE | 3,5 | gul | 2...5 | V | 515-02224 | HGDC2-5 |
| HGDC2-5Y-PVC-YE | 3,5 | gul | 2...5 | Y | 515-02254 | HGDC2-5 |
| HGDC2-5Z-PVC-YE | 3,5 | gul | 2...5 | Z | 515-02264 | HGDC2-5 |
| HGDC4-9.-PVC-YE | 5 | gul | 4...9 | . | 515-01946 | HGDC4-9 |
| HGDC4-9/-PVC-YE | 5 | gul | 4...9 | / | 515-03724 | HGDC4-9 |
| HGDC4-9+-PVC-YE | 5 | gul | 4...9 | + | 515-03704 | HGDC4-9 |
| HGDC4-90-PVC-BK | 5 | svart | 4...9 | 0 | 515-03600 | HGDC4-9 |
| HGDC4-90-PVC-YE | 5 | gul | 4...9 | 0 | 515-03604 | HGDC4-9 |
| HGDC4-91-PVC-BN | 5 | brun | 4...9 | 1 | 515-03611 | HGDC4-9 |
| HGDC4-91-PVC-YE | 5 | gul | 4...9 | 1 | 515-03614 | HGDC4-9 |
| HGDC4-92-PVC-RD | 5 | röd | 4...9 | 2 | 515-03622 | HGDC4-9 |
| HGDC4-92-PVC-YE | 5 | gul | 4...9 | 2 | 515-03624 | HGDC4-9 |
| HGDC4-93-PVC-OG | 5 | orange | 4...9 | 3 | 515-03633 | HGDC4-9 |
| HGDC4-93-PVC-YE | 5 | gul | 4...9 | 3 | 515-03634 | HGDC4-9 |
| HGDC4-94-PVC-YE | 5 | gul | 4...9 | 4 | 515-03644 | HGDC4-9 |
| HGDC4-95-PVC-GN | 5 | grön | 4...9 | 5 | 515-03655 | HGDC4-9 |
| HGDC4-95-PVC-YE | 5 | gul | 4...9 | 5 | 515-03654 | HGDC4-9 |
| HGDC4-96-PVC-BU | 5 | blå | 4...9 | 6 | 515-03666 | HGDC4-9 |
| HGDC4-96-PVC-YE | 5 | gul | 4...9 | 6 | 515-03664 | HGDC4-9 |
| HGDC4-97-PVC-YE | 5 | gul | 4...9 | 7 | 515-03674 | HGDC4-9 |
| HGDC4-98-PVC-GY | 5 | grå | 4...9 | 8 | 515-03688 | HGDC4-9 |
| HGDC4-98-PVC-YE | 5 | gul | 4...9 | 8 | 515-03684 | HGDC4-9 |
| HGDC4-99-PVC-YE | 5 | gul | 4...9 | 9 | 515-03694 | HGDC4-9 |
| HGDC4-9A-PVC-YE | 5 | gul | 4...9 | A | 515-03014 | HGDC4-9 |
| HGDC4-9B-PVC-YE | 5 | gul | 4...9 | B | 515-03024 | HGDC4-9 |
| HGDC4-9C-PVC-YE | 5 | gul | 4...9 | C | 515-03034 | HGDC4-9 |
| HGDC4-9D-PVC-YE | 5 | gul | 4...9 | D | 515-03044 | HGDC4-9 |
| HGDC4-9EARTH-YE | 5 | gul | 4...9 | jord | 515-01947 | HGDC4-9 |
| HGDC4-9E-PVC-YE | 5 | gul | 4...9 | E | 515-03054 | HGDC4-9 |
| HGDC4-9F-PVC-YE | 5 | gul | 4...9 | F | 515-03064 | HGDC4-9 |
| HGDC4-9G-PVC-YE | 5 | gul | 4...9 | G | 515-03074 | HGDC4-9 |
| HGDC4-9H-PVC-YE | 5 | gul | 4...9 | H | 515-03084 | HGDC4-9 |
| HGDC4-9I-PVC-YE | 5 | gul | 4...9 | I | 515-03094 | HGDC4-9 |
| HGDC4-9J-PVC-YE | 5 | gul | 4...9 | J | 515-03104 | HGDC4-9 |
| HGDC4-9K-PVC-YE | 5 | gul | 4...9 | K | 515-03114 | HGDC4-9 |
| HGDC4-9L-PVC-YE | 5 | gul | 4...9 | L | 515-03124 | HGDC4-9 |
| HGDC4-9M-PVC-YE | 5 | gul | 4...9 | M | 515-03134 | HGDC4-9 |
| HGDC4-9N-PVC-YE | 5 | gul | 4...9 | N | 515-03144 | HGDC4-9 |
| HGDC4-9O-PVC-YE | 5 | gul | 4...9 | O | 515-03154 | HGDC4-9 |
| HGDC4-9P-PVC-YE | 5 | gul | 4...9 | P | 515-03164 | HGDC4-9 |
| HGDC4-9-PVC-YE | 5 | gul | 4...9 | - | 515-03714 | HGDC4-9 |
| HGDC4-9Q-PVC-YE | 5 | gul | 4...9 | Q | 515-03174 | HGDC4-9 |
| HGDC4-9R-PVC-YE | 5 | gul | 4...9 | R | 515-03184 | HGDC4-9 |
| HGDC4-9S-PVC-YE | 5 | gul | 4...9 | S | 515-03194 | HGDC4-9 |
| HGDC4-9T-PVC-YE | 5 | gul | 4...9 | T | 515-03204 | HGDC4-9 |
| HGDC4-9U-PVC-YE | 5 | gul | 4...9 | U | 515-03214 | HGDC4-9 |
| HGDC4-9V-PVC-YE | 5 | gul | 4...9 | V | 515-03224 | HGDC4-9 |
| HGDC4-9W-PVC-YE | 5 | gul | 4...9 | W | 515-03234 | HGDC4-9 |
| HGDC4-9X-PVC-YE | 5 | gul | 4...9 | X | 515-03244 | HGDC4-9 |
| HGDC4-9Y-PVC-YE | 5 | gul | 4...9 | Y | 515-03254 | HGDC4-9 |
| HGDC4-9Z-PVC-YE | 5 | gul | 4...9 | Z | 515-03264 | HGDC4-9 |
