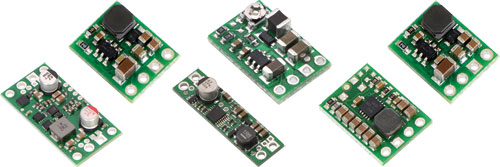

Converter: step down; POLOLU
| Manufacturer | POLOLU |
| Information | product is not a working device, but only component |
| Type of converter | step down |
| Symbol | Manufacturer's part number | Uin | Uout | Iout max | Efficiency | Board dimensions |
|---|---|---|---|---|---|---|
| [V] | [V] | [A] | [%] | [mm] | ||
| POLOLU-2099 | POLOLU-2099 | 11...42 | 9 | 300m | 80...90 | 13x10 |
| POLOLU-2106 | STEP-DOWN VOLTAGE REGULATOR D24V6F3 | 3.8...42 | 3.3 | 600m | 80...90 | 10.1x12.7 |
| POLOLU-2830 | 3.3V 1A STEP-DOWN D24V10F3 | 3.4...36 | 3.3 | 1 | 80...90 | 12.7x17.8 |
| POLOLU-2831 | 5V 1A STEP-DOWN D24V10F5 | 5.1...36 | 5 | 1 | 85...95 | 12.7x17.8 |
| POLOLU-2832 | 6V 1A STEP-DOWN D24V10F6 | 6.1...36 | 6 | 1 | 85...93 | 12.7x17.8 |
| POLOLU-2833 | 9V 1A STEP-DOWN D24V10F9 | 9.1...36 | 9 | 1 | 85...93 | 12.7x17.8 |
| POLOLU-2834 | 12V 1A STEP-DOWN D24V10F12 | 12.1...36 | 12 | 1 | 85...93 | 12.7x17.8 |
| POLOLU-2840 | POLOLU-2840 | 3...36 | 1.8 | 500m | 75...90 | 13x10 |
| POLOLU-2841 | POLOLU-2841 | 3...36 | 2.5 | 500m | 80...90 | 13x10 |
| POLOLU-2842 | POLOLU-2842 | 3.4...36 | 3.3 | 500m | 80...90 | 13x10 |
| POLOLU-2843 | POLOLU-2843 | 5.1...36 | 5 | 500m | 80...93 | 13x10 |
| POLOLU-2844 | POLOLU-2844 | 6.1...36 | 6 | 500m | 85...93 | 13x10 |
| POLOLU-2845 | POLOLU-2845 | 9.1...36 | 9 | 500m | 85...93 | 13x10 |
| POLOLU-2846 | POLOLU-2846 | 12.1...36 | 12 | 500m | 85...93 | 13x10 |
| POLOLU-2849 | D24V25F3 | 4.5...38 | 3.3 | 2.5 | 80...95 | 17.8x17.8 |
| POLOLU-2850 | 5V 2.5A STEP-DOWN D24V25F5 | 6...38 | 5 | 2.5 | 85...95 | 17.8x17.8 |
| POLOLU-2851 | 5V 5A STEP-DOWN D24V50F5 | 6...38 | 5 | 5 | 85...95 | 17.8x17.8 |
| POLOLU-2852 | D24V25F6 | 7...38 | 6 | 2.5 | 85...95 | 17.8x17.8 |
| POLOLU-2853 | D24V25F7 | 8.3...38 | 7.5 | 2.5 | 85...95 | 17.8x17.8 |
| POLOLU-2854 | D24V25F9 | 10.5...38 | 9 | 2.5 | 82...95 | 17.8x17.8 |
| POLOLU-2855 | 12V 2.2A STEP-DOWN D24V22F12 | 12.7...36 | 12 | 2.2 | 90...95 | 17.8x17.8 |
| POLOLU-2857 | 3.3V 2.6A STEP-DOWN D24V22F3 | 4...36 | 3.3 | 2.6 | 85...95 | 17.8x17.8 |
| POLOLU-2858 | 5V 2.5A STEP-DOWN D24V22F5 | 5.3...36 | 5 | 2.5 | 85...95 | 17.8x17.8 |
| POLOLU-2859 | 6V 2.5A STEP-DOWN D24V22F6 | 6.4...36 | 6 | 2.5 | 85...95 | 17.8x17.8 |
| POLOLU-2860 | 7.5V 2.4A STEP-DOWN D24V22F7 | 8...36 | 7.5 | 2.4 | 85...95 | 17.8x17.8 |
| POLOLU-2861 | 9V 2.3A STEP-DOWN D24V22F9 | 9.6...36 | 9 | 2.3 | 90...95 | 17.8x17.8 |
| POLOLU-2866 | POLOLU-2866 | 5...38 | 5 | 9 | 80...95 | 40.6x20.3 |
| POLOLU-2881 | D24V150F5 | 6...40 | 5 | 15 | 80...95 | 43x31.8 |
| POLOLU-2882 | D24V150F6 | 7.2...40 | 6 | 15 | 80...95 | 43x31.8 |
| POLOLU-2883 | D24V150F7 | 9...40 | 7.5 | 15 | 80...95 | 43x31.8 |
| POLOLU-2884 | D24V150F9 | 11...40 | 9 | 15 | 80...95 | 43x31.8 |
| POLOLU-2885 | D24V150F12 | 14.5...40 | 12 | 15 | 80...95 | 43x31.8 |
| POLOLU-3781 | 3.3V, 3.6A STEP-DOWN VOLTAGE REG. D36V28 | 4.5...50 | 3.3 | 3.6 | 80...90 | 20.3x17.8 |
| POLOLU-3782 | 5V, 3.2A STEP-DOWN VOLTAGE REG. D36V28F5 | 5.3...50 | 5 | 3.2 | 80...90 | 20.3x17.8 |
| POLOLU-3784 | 7.5V, 2.6A STEP-DOWN VOLTAGE REG. D36V28 | 8...50 | 7.5 | 2.6 | 85...95 | 20.3x17.8 |
| POLOLU-3785 | 9V, 2.6A STEP-DOWN VOLTAGE REG. D36V28F9 | 9.8...50 | 9 | 2.6 | 85...95 | 20.3x17.8 |
| POLOLU-3786 | 12V, 2.4A STEP-DOWN VOLTAGE REG. D36V28F | 12.9...50 | 12 | 2.4 | 90...95 | 20.3x17.8 |
| POLOLU-3791 | 3.3V, 600MA STEP-DOWN VOLTAGE REGULATOR | 4...50 | 3.3 | 600m | - | 13x10 |
| POLOLU-3792 | 5V, 600MA STEP-DOWN VOLTAGE REGULATOR | 5.2...50 | 5 | 600m | - | 13x10 |
| POLOLU-3794 | 7.5V, 600MA STEP-DOWN VOLTAGE REGULATOR | 7.7...50 | 7.5 | 600m | - | 13x10 |
| POLOLU-3796 | 12V, 600MA STEP-DOWN VOLTAGE REGULATOR | 12.2...50 | 12 | 600m | - | 13x10 |
| POLOLU-3797 | 15V, 600MA STEP-DOWN VOLTAGE REGULATOR | 15.2...50 | 15 | 600m | - | 13x10 |
| POLOLU-3798 | 2.5-7.5V ADJUSTABLE STEP-DOWN REGULATOR | 4...50 | 2.5...7.5 | 600m | - | 15x10 |
| POLOLU-3799 | 4-25V ADJUSTABLE STEP-DOWN REGULULATOR | 4...50 | 4...25 | 600m | - | 13x10 |
| POLOLU-4090 | 3.3V, 6.5A STEP-DOWN VOLT REG. D36V50F3 | 4.5...50 | 3.3 | 6.5 | 80...95 | 25.4x25.4 |
| POLOLU-4091 | 5V, 5.5A STEP-DOWN VOLT REG. D36V50F5 | 5.5...50 | 5 | 5.5 | 80...95 | 25.4x25.4 |
| POLOLU-4092 | 6V, 5.5A STEP-DOWN VOLT REG. D36V50F6 | 6.5...50 | 6 | 5.5 | 80...95 | 25.4x25.4 |
| POLOLU-4093 | 7.5V, 5A STEP-DOWN VOLT REG. D36V50F7 | 8.3...50 | 7.5 | 5 | 80...95 | 25.4x25.4 |
| POLOLU-4094 | 9V, 5A STEP-DOWN VOLT REG. D36V50F9 | 9.9...50 | 9 | 5 | 80...95 | 25.4x25.4 |
| POLOLU-4095 | 12V, 4.5A STEP-DOWN VOLT REG. D36V50F12 | 13.3...50 | 12 | 4.5 | 80...95 | 25.4x25.4 |
| POLOLU-4854 | 4854 | 4.2...45 | 4.2...15 | 3.3 | 80...95 | 22.8x30.5 |
| POLOLU-4855 | 4855 | 4.2...45 | 4.2...15 | 3.3 | 80...95 | 22.8x30.5 |
| POLOLU-4874 | 4874 | 4.2...45 | 4.2...15 | 3 | 80...95 | 15.2x25.4 |
| POLOLU-4875 | 4875 | 4.2...45 | 4.2...15 | 3 | 80...95 | 15.2x25.4 |
| POLOLU-4891 | 3.3V, 3.7A STEP-DOWN VOLTAGE REGULATOR D | 3.3...45 | 3.3 | 3.7 | 80...95 | 17.8x20.3x9 |
| POLOLU-4892 | 5V, 3.4A STEP-DOWN VOLTAGE REGULATOR D30 | 5...45 | 5 | 3.4 | 80...95 | 17.8x20.3x9 |
| POLOLU-4893 | 6V, 3.3A STEP-DOWN VOLTAGE REGULATOR D30 | 6...45 | 6 | 3.3 | 80...95 | 17.8x20.3x9 |
| POLOLU-4894 | 7.5V, 3A STEP-DOWN VOLTAGE REGULATOR D30 | 7.5...45 | 7.5 | 3 | 80...95 | 17.8x20.3x9 |
| POLOLU-4895 | 9V, 2.9A STEP-DOWN VOLTAGE REGULATOR D30 | 9...45 | 9 | 2.9 | 80...95 | 17.8x20.3x9 |
| POLOLU-4896 | 12V, 2.8A STEP-DOWN VOLTAGE REGULATOR D3 | 12...45 | 12 | 2.8 | 80...95 | 17.8x20.3x9 |
| POLOLU-4897 | 15V, 2.7A STEP-DOWN VOLTAGE REGULATOR D3 | 15...45 | 15 | 2.7 | 80...95 | 17.8x20.3x9 |
| Symbol | Additional functions |
|---|---|
| POLOLU-2099 | current shutoff; over-temperature shutoff |
| POLOLU-2106 | soft-start; over-temperature shutoff |
| POLOLU-2830 | soft-start; over-temperature shutoff |
| POLOLU-2831 | soft-start; over-temperature shutoff |
| POLOLU-2832 | soft-start; over-temperature shutoff |
| POLOLU-2833 | soft-start; over-temperature shutoff |
| POLOLU-2834 | soft-start; over-temperature shutoff |
| POLOLU-2840 | current shutoff; over-temperature shutoff |
| POLOLU-2841 | current shutoff; over-temperature shutoff |
| POLOLU-2842 | current shutoff; over-temperature shutoff |
| POLOLU-2843 | current shutoff; over-temperature shutoff |
| POLOLU-2844 | current shutoff; over-temperature shutoff |
| POLOLU-2845 | current shutoff; over-temperature shutoff |
| POLOLU-2846 | current shutoff; over-temperature shutoff |
| POLOLU-2849 | current shutoff; over-temperature shutoff |
| POLOLU-2850 | soft-start; over-temperature shutoff |
| POLOLU-2851 | soft-start; over-temperature shutoff |
| POLOLU-2852 | current shutoff; over-temperature shutoff |
| POLOLU-2853 | current shutoff; over-temperature shutoff |
| POLOLU-2854 | current shutoff; over-temperature shutoff |
| POLOLU-2855 | soft-start; over-temperature shutoff |
| POLOLU-2857 | soft-start; over-temperature shutoff |
| POLOLU-2858 | soft-start; over-temperature shutoff |
| POLOLU-2859 | soft-start; over-temperature shutoff |
| POLOLU-2860 | soft-start; over-temperature shutoff |
| POLOLU-2861 | soft-start; over-temperature shutoff |
| POLOLU-2866 | current shutoff; over-temperature shutoff |
| POLOLU-2881 | current shutoff; over-temperature shutoff |
| POLOLU-2882 | current shutoff; over-temperature shutoff |
| POLOLU-2883 | current shutoff; over-temperature shutoff |
| POLOLU-2884 | current shutoff; over-temperature shutoff |
| POLOLU-2885 | current shutoff; over-temperature shutoff |
