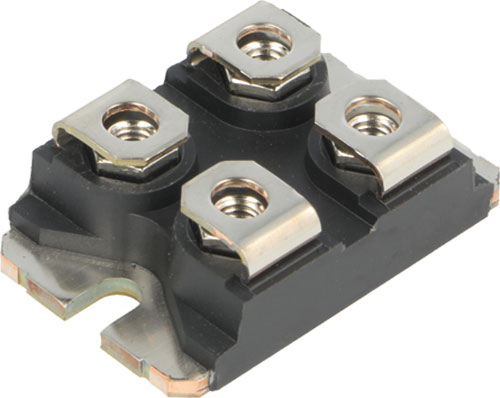

IXYS IGBT modules
| Manufacturer | IXYS |
| Type of semiconductor module | IGBT |
| Symbol | Structure | Urmax | Ic | Icm | Uge | Power dissipation | Case | Mech. mounting | Electr. mounting | Topology | Technology | Features | Application |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| [V] | [A] | [A] | [V] | [W] | |||||||||
| IXA20PG1200DHGLB | diode/transistor | 1.2k | 23 | 45 | ±20 | 130 | SMPD-B | SMT | IGBT half-bridge | ISOPLUS, Sonic FRD | - | - | |
| IXA30RG1200DHGLB | diode/transistor | 1.2k | 30 | 75 | ±20 | 147 | SMPD-B | - | SMT | boost chopper | ISOPLUS, Sonic FRD | - | - |
| IXBN42N170A | single transistor | 1.7k | 21 | 265 | ±20 | 313 | SOT227B | screw | screw | - | BiMOSFET | high voltage | - |
| IXBN75N170 | single transistor | 1.7k | 75 | 680 | ±20 | 625 | SOT227B | screw | screw | - | BiMOSFET | high voltage | - |
| IXDN75N120 | single transistor | 1.2k | 150 | 190 | ±20 | 660 | SOT227B | screw | screw | - | NPT | - | - |
| IXG70IF1200NA | single transistor | 1.2k | 86 | - | - | - | SOT227B | screw | screw | - | X2PT | integrated anti-parallel diode | - |
| IXGN100N170 | single transistor | 1.7k | 95 | 600 | ±20 | 735 | SOT227B | screw | screw | - | NPT | high voltage | - |
| IXGN200N170 | single transistor | 1.7k | 160 | 1.05k | ±20 | 1.25k | SOT227B | screw | screw | - | NPT | - | - |
| IXGN200N60B3 | single transistor | 600 | 200 | 1.2k | ±20 | 830 | SOT227B | screw | screw | - | GenX3, PT | - | - |
| IXGN320N60A3 | single transistor | 600 | 170 | 1.2k | ±20 | 735 | SOT227B | screw | screw | - | GenX3, PT | - | - |
| IXGN400N60A3 | single transistor | 600 | 190 | 800 | ±20 | 830 | SOT227B | screw | screw | - | GenX3, PT | - | - |
| IXGN400N60B3 | single transistor | 600 | 200 | 1.5k | ±20 | 1k | SOT227B | screw | screw | - | GenX3, PT | - | - |
| IXGN50N120C3H1 | single transistor | 1.2k | 50 | 240 | ±20 | 460 | SOT227B | screw | screw | - | GenX3, PT | - | - |
| IXGN72N60C3H1 | single transistor | 600 | 52 | 360 | ±20 | 360 | SOT227B | screw | screw | - | GenX3, PT | - | - |
| IXXN100N60B3H1 | single transistor | 600 | 98 | 440 | ±20 | 500 | SOT227B | screw | screw | - | GenX3, XPT | - | - |
| IXXN110N65B4H1 | single transistor | 650 | 110 | 650 | ±20 | 750 | SOT227B | screw | screw | - | GenX4, XPT | - | - |
| IXXN110N65C4H1 | single transistor | 650 | 110 | 470 | ±20 | 750 | SOT227B | screw | screw | - | GenX3, XPT | - | - |
| IXXN200N60B3 | single transistor | 600 | 160 | 1k | ±20 | 940 | SOT227B | screw | screw | - | GenX3, XPT | - | - |
| IXXN200N60B3H1 | single transistor | 600 | 98 | 1k | ±20 | 780 | SOT227B | screw | screw | - | GenX3, XPT | - | - |
| IXXN200N60C3H1 | single transistor | 600 | 98 | 1k | ±20 | 780 | SOT227B | screw | screw | - | GenX3, XPT | - | - |
| IXYN100N120B3H1 | single transistor | 1.2k | 76 | 480 | ±20 | 690 | SOT227B | screw | screw | - | GenX3, XPT | - | - |
| IXYN100N120C3 | single transistor | 1.2k | 84 | 460 | ±20 | 830 | SOT227B | screw | screw | - | GenX3, XPT | - | - |
| IXYN100N120C3H1 | single transistor | 1.2k | 62 | 440 | ±20 | 690 | SOT227B | screw | screw | - | GenX3, XPT | - | - |
| IXYN100N65A3 | single transistor | 650 | 100 | 460 | ±20 | 600 | SOT227B | screw | screw | - | GenX3, XPT | - | - |
| IXYN100N65B3D1 | single transistor | 650 | 100 | 490 | ±20 | 600 | SOT227B | screw | screw | - | GenX3, XPT | - | - |
| IXYN100N65C3H1 | single transistor | 650 | 90 | 420 | ±20 | 600 | SOT227B | screw | screw | - | GenX3, XPT | - | - |
| IXYN120N120C3 | single transistor | 1.2k | 120 | 700 | ±20 | 1.2k | SOT227B | screw | screw | - | GenX3, XPT | - | - |
| IXYN150N60B3 | single transistor | 600 | 140 | 750 | ±20 | 830 | SOT227B | screw | screw | - | GenX3, XPT | - | - |
| IXYN30N170CV1 | single transistor | 1.7k | 30 | 275 | ±20 | 680 | SOT227B | screw | screw | - | XPT | - | - |
| IXYN50N170CV1 | single transistor | 1.7k | 50 | 485 | ±20 | 880 | SOT227B | screw | screw | - | XPT | - | - |
| IXYN75N65C3D1 | single transistor | 650 | 75 | 360 | ±20 | 600 | SOT227B | screw | screw | - | GenX3, XPT | - | - |
| IXYN80N90C3H1 | single transistor | 900 | 70 | 340 | ±20 | 500 | SOT227B | screw | screw | - | GenX3, XPT | - | - |
| IXYN82N120C3 | single transistor | 1.2k | 46 | 380 | ±20 | 600 | SOT227B | screw | screw | - | GenX3, XPT | - | - |
| IXYN82N120C3H1 | single transistor | 1.2k | 66 | 320 | ±20 | 500 | SOT227B | screw | screw | - | GenX3, XPT | - | - |
| IXYN85N120C4H1 | single transistor | 1.2k | 85 | 420 | ±20 | 600 | SOT227B | screw | screw | - | GenX4, XPT | - | - |
| MCMA240UI1600ED | diode/thyristor/IGBT | 1.6k | 140 | 300 | ±20 | - | E2-Pack | screw | Press-in PCB | boost chopper, 3-phase diode-thyristor bridge | - | - | Inverter |
| MCMA240UI1600PED | diode/thyristor/IGBT | 1.6k | 140 | 300 | ±20 | - | E2-Pack | screw | Press-in PCB | boost chopper, 3-phase diode-thyristor bridge | - | - | Inverter |
| MCNA120UI2200PED | diode/thyristor/IGBT | 2.2k | 80 | 150 | ±20 | - | E2-Pack | screw | Press-in PCB | boost chopper, 3-phase diode-thyristor bridge | - | - | Inverter |
| MCNA120UI2200P-PC | diode/thyristor/IGBT | 2.2k | 80 | 150 | ±20 | - | E2-Pack | screw | Press-in PCB | boost chopper, 3-phase diode-thyristor bridge | - | - | Inverter |
| MCNA120UI2200TED | diode/thyristor/IGBT | 2.2k | 80 | 150 | ±20 | - | E2-Pack | screw | Press-in PCB | boost chopper, 3-phase diode-thyristor bridge, NTC thermistor | - | - | Inverter |
| MDI100-12A3 | diode/transistor | 1.2k | 90 | 150 | ±20 | 560 | Y4-M5 | screw | FASTON connectors, screw | buck chopper | NPT | - | for pump, photovoltaics, motors, fans |
| MDI150-12A4 | diode/transistor | 1.2k | 120 | 200 | ±20 | 760 | Y3-DCB | screw | FASTON connectors, screw | buck chopper | NPT | - | motors |
| MDI300-12A4 | diode/transistor | 1.2k | 220 | 400 | ±20 | 1.38k | Y3-DCB | screw | FASTON connectors, screw | buck chopper | NPT | - | motors |
| MDI550-12A4 | diode/transistor | 1.2k | 460 | 800 | ±20 | 2.75k | Y3-DCB | screw | FASTON connectors, screw | buck chopper | NPT | - | motors |
| MDI75-12A3 | diode/transistor | 1.2k | 60 | 100 | ±20 | 370 | Y4-M5 | screw | FASTON connectors, screw | buck chopper | NPT | - | for pump, photovoltaics, motors, fans |
| MDMA210UB1600PTED | diode/transistor | 1.2k | 84 | 225 | ±20 | - | E2-Pack | screw | Press-in PCB | boost chopper, three-phase diode bridge, NTC thermistor | - | - | - |
| MDMA240UB1600ED | diode/transistor | 1.2k | 140 | 300 | ±20 | - | E2-Pack | screw | Press-in PCB | boost chopper, three-phase diode bridge | - | - | - |
| MDMA280UB1600PTED | diode/transistor | 1.2k | 140 | 300 | ±20 | - | E2-Pack | screw | Press-in PCB | boost chopper, three-phase diode bridge, NTC thermistor | - | - | - |
| MDMA360UB1600PTED | diode/transistor | 1.2k | 175 | 400 | ±20 | - | E2-Pack | screw | Press-in PCB | boost chopper, three-phase diode bridge, NTC thermistor | - | - | - |
| MDNA210UB2200PTED | diode/transistor | 1.7k | 100 | 200 | ±20 | - | E2-Pack | screw | Press-in PCB | boost chopper, three-phase diode bridge, NTC thermistor | - | - | - |
| MDNA280UB2200PTED | diode/transistor | 1.7k | 100 | 200 | ±20 | - | E2-Pack | screw | Press-in PCB | boost chopper, three-phase diode bridge, NTC thermistor | - | - | - |
| MDNA360UB2200PTED | diode/transistor | 1.7k | 135 | 280 | ±20 | - | E2-Pack | screw | Press-in PCB | boost chopper, three-phase diode bridge, NTC thermistor | - | - | - |
| MG06100S-BN4MM | transistor/transistor | 600 | 100 | 200 | ±20 | - | package S | screw | FASTON connectors, screw | IGBT half-bridge | - | - | - |
| MG06150S-BN4MM | transistor/transistor | 600 | 150 | 300 | ±20 | - | package S | screw | FASTON connectors, screw | IGBT half-bridge | - | - | - |
| MG06300D-BN4MM | transistor/transistor | 600 | 300 | 600 | ±20 | - | Y3-DCB | screw | FASTON connectors, screw | IGBT half-bridge | - | - | - |
| MG06400D-BN4MM | transistor/transistor | 600 | 400 | 800 | ±20 | - | Y3-DCB | screw | FASTON connectors, screw | IGBT half-bridge | - | - | - |
| MG0675S-BN4MM | transistor/transistor | 600 | 75 | 150 | ±20 | - | package S | screw | FASTON connectors, screw | IGBT half-bridge | - | - | - |
| MG12100S-BN2MM | transistor/transistor | 1.2k | 100 | 200 | ±20 | - | package S | screw | FASTON connectors, screw | IGBT half-bridge | Field Stop, Trench | - | - |
| MG12150W-XN2MM | transistor/transistor | 1.2k | 150 | 300 | ±20 | - | package W | screw | Press-in PCB | IGBT three-phase bridge, NTC thermistor | Field Stop, Trench | - | - |
| MG12200D-BN2MM | transistor/transistor | 1.2k | 200 | 400 | ±20 | - | Y3-DCB | screw | FASTON connectors, screw | IGBT half-bridge | Field Stop, Trench | - | - |
| MG12300D-BN2MM | transistor/transistor | 1.2k | 300 | 600 | ±20 | - | Y3-DCB | screw | FASTON connectors, screw | IGBT half-bridge | Field Stop, Trench | - | - |
| MG17100S-BN4MM | transistor/transistor | 1.7k | 100 | 200 | ±20 | - | Y4-M5 | screw | FASTON connectors, screw | IGBT half-bridge | Field Stop, Trench | - | - |
| MG1750S-BN4MM | transistor/transistor | 1.7k | 50 | - | - | - | Y4-M5 | screw | FASTON connectors, screw | IGBT half-bridge | Field Stop, Trench | - | - |
| MG1775S-BN4MM | transistor/transistor | 1.7k | 75 | 150 | ±20 | - | Y4-M5 | screw | FASTON connectors, screw | IGBT half-bridge | Field Stop, Trench | - | - |
| MID100-12A3 | diode/transistor | 1.2k | 90 | 150 | ±20 | 560 | Y4-M5 | screw | FASTON connectors, screw | boost chopper | NPT | - | for pump, photovoltaics, motors, fans |
| MID145-12A3 | diode/transistor | 1.2k | 110 | 200 | ±20 | 700 | Y4-M5 | screw | FASTON connectors, screw | boost chopper | NPT | - | for pump, photovoltaics, motors, fans |
| MID150-12A4 | diode/transistor | 1.2k | 120 | 200 | ±20 | 760 | Y3-DCB | screw | FASTON connectors, screw | boost chopper | NPT | - | motors |
| MID200-12A4 | diode/transistor | 1.2k | 180 | 360 | ±20 | 1.13k | Y3-DCB | screw | FASTON connectors, screw | boost chopper | NPT | - | motors |
| MID300-12A4 | diode/transistor | 1.2k | 220 | 400 | ±20 | 1.38k | Y3-DCB | screw | FASTON connectors, screw | boost chopper | NPT | - | motors |
| MID550-12A4 | diode/transistor | 1.2k | 460 | 800 | ±20 | 2.75k | Y3-DCB | screw | FASTON connectors, screw | boost chopper | NPT | - | motors |
| MIEB100W1200TEH | transistor/transistor | 1.2k | 128 | - | - | - | E3-Pack | screw | Press-in PCB | MOSFET three-phase bridge, NTC thermistor | - | - | - |
| MIEB101H1200EH | transistor/transistor | 1.2k | 128 | 200 | ±20 | 630 | E3-Pack | screw | Press-in PCB | H-bridge | Sonic FRD, SPT+ | - | photovoltaics, motors |
| MIEB101W1200EH | transistor/transistor | 1.2k | 128 | 200 | ±20 | 630 | E3-Pack | screw | Press-in PCB | IGBT three-phase bridge | Sonic FRD, SPT+ | - | photovoltaics, motors |
| MII145-12A3 | transistor/transistor | 1.2k | 110 | 200 | ±20 | 700 | Y4-M5 | screw | FASTON connectors, screw | IGBT half-bridge | NPT | - | for pump, photovoltaics, motors, fans |
| MII200-12A4 | transistor/transistor | 1.2k | 180 | 360 | ±20 | 1.13k | Y3-DCB | screw | FASTON connectors, screw | IGBT half-bridge | NPT | - | motors |
| MII300-12A4 | transistor/transistor | 1.2k | 220 | 400 | ±20 | 1.38k | Y3-DCB | screw | FASTON connectors, screw | IGBT half-bridge | NPT | - | motors |
| MII75-12A3 | transistor/transistor | 1.2k | 60 | 100 | ±20 | 370 | Y4-M5 | screw | FASTON connectors, screw | IGBT half-bridge | NPT | - | for pump, photovoltaics, motors, fans |
| MITA300RF1700PTED | diode/transistor | 1.7k | 310 | - | - | - | E2-Pack PFP | screw | Press-Fit | boost chopper | Trench | - | - |
| MIXA100W1200TEH | transistor/transistor | 1.2k | 108 | 300 | ±20 | 500 | E3-Pack | screw | Press-in PCB | IGBT three-phase bridge, NTC thermistor | Sonic FRD, XPT | - | photovoltaics, motors |
| MIXA101W1200EH | transistor/transistor | 1.2k | 108 | - | ±20 | - | E3-Pack | screw | Press-in PCB | MOSFET three-phase bridge | XPT | - | - |
| MIXA10W1200TML | transistor/transistor | 1.2k | 12 | 30 | ±20 | 65 | E1-Pack | screw | Press-in PCB | IGBT three-phase bridge, NTC thermistor | Sonic FRD, XPT | - | for pump, motors, fans |
| MIXA10WB1200TED | diode/transistor | 1.2k | 12 | 30 | ±20 | 60 | E2-Pack | screw | Press-in PCB | buck chopper, three-phase diode bridge, IGBT three-phase bridge, NTC thermistor | Sonic FRD, XPT | - | photovoltaics, motors |
| MIXA10WB1200TML | diode/transistor | 1.2k | 12 | 30 | ±20 | 63 | E1-Pack | screw | Press-in PCB | buck chopper, three-phase diode bridge, IGBT three-phase bridge, NTC thermistor | Sonic FRD, XPT | - | for pump, motors, fans |
| MIXA150Q1200VA | diode/transistor | 1.2k | 175 | 450 | ±20 | 695 | V1-A-Pack | screw | FASTON connectors | buck chopper | Sonic FRD, XPT | - | - |
| MIXA150R1200VA | diode/transistor | 1.2k | 175 | 450 | ±20 | 695 | V1-A-Pack | screw | FASTON connectors | boost chopper | Sonic FRD, XPT | - | for pump, photovoltaics, motors, fans |
| MIXA150W1200TEH | transistor/transistor | 1.2k | 150 | 450 | ±20 | 695 | E3-Pack | screw | Press-in PCB | IGBT three-phase bridge, NTC thermistor | Sonic FRD, XPT | - | photovoltaics, motors |
| MIXA151W1200EH | transistor/transistor | 1.2k | 150 | 340 | ±20 | 695 | E3-Pack | screw | Press-in PCB | IGBT three-phase bridge | Sonic FRD, XPT | - | photovoltaics, motors |
| MIXA20W1200TML | transistor/transistor | 1.2k | 20 | 45 | ±20 | 100 | E1-Pack | screw | Press-in PCB | IGBT three-phase bridge, NTC thermistor | Sonic FRD, XPT | - | for pump, motors, fans |
| MIXA20WB1200TED | diode/transistor | 1.2k | 20 | 45 | ±20 | 100 | E2-Pack | screw | Press-in PCB | buck chopper, three-phase diode bridge, IGBT three-phase bridge, NTC thermistor | Sonic FRD, XPT | - | photovoltaics, motors |
| MIXA20WB1200TML | diode/transistor | 1.2k | 20 | 45 | ±20 | 100 | E1-Pack | screw | Press-in PCB | buck chopper, three-phase diode bridge, IGBT three-phase bridge, NTC thermistor | Sonic FRD, XPT | - | for pump, motors, fans |
| MIXA225PF1200TSF | transistor/transistor | 1.2k | 250 | 500 | ±20 | 1.1k | SimBus F | screw | Press-in PCB | IGBT half-bridge, NTC thermistor | Sonic FRD, XPT | - | for pump, for UPS, motors, fans |
| MIXA225RF1200TSF | diode/transistor | 1.2k | 250 | 500 | ±20 | 1.1k | SimBus F | screw | Press-in PCB | boost chopper, NTC thermistor | Sonic FRD, XPT | - | |
| MIXA300PF1200TSF | transistor/transistor | 1.2k | 325 | 650 | ±20 | 1.5k | SimBus F | screw | Press-in PCB | IGBT half-bridge, NTC thermistor | Sonic FRD, XPT | - | for pump, for UPS, motors, fans |
| MIXA30W1200TED | transistor/transistor | 1.2k | 30 | 75 | ±20 | 150 | E2-Pack | screw | Press-in PCB | IGBT three-phase bridge, NTC thermistor | Sonic FRD, XPT | - | photovoltaics, motors |
| MIXA30W1200TML | transistor/transistor | 1.2k | 30 | 75 | ±20 | 150 | E1-Pack | screw | Press-in PCB | IGBT three-phase bridge, NTC thermistor | Sonic FRD, XPT | - | for pump, motors, fans |
| MIXA30WB1200TED | diode/transistor | 1.2k | 30 | 75 | ±20 | 150 | E2-Pack | screw | Press-in PCB | buck chopper, three-phase diode bridge, IGBT three-phase bridge, NTC thermistor | Sonic FRD, XPT | - | photovoltaics, motors |
| MIXA40W1200TED | transistor/transistor | 1.2k | 40 | 105 | ±20 | 195 | E2-Pack | screw | Press-in PCB | IGBT three-phase bridge, NTC thermistor | Sonic FRD, XPT | - | photovoltaics, motors |
| MIXA40W1200TML | transistor/transistor | 1.2k | 40 | 105 | ±20 | 195 | E1-Pack | screw | Press-in PCB | IGBT three-phase bridge, NTC thermistor | Sonic FRD, XPT | - | for pump, motors, fans |
| MIXA41W1200ED | transistor/transistor | 1.2k | 40 | - | - | - | E2-Pack | screw | Press-in PCB | IGBT three-phase bridge | XPT | - | - |
| MIXA450PF1200TSF | transistor/transistor | 1.2k | 450 | 900 | ±20 | 2.1k | SimBus F | screw | Press-in PCB | IGBT half-bridge, NTC thermistor | Sonic FRD, XPT | - | for pump, for UPS, motors, fans |
| MIXA600PF650TSF | transistor/transistor | 650 | 490 | 1.2k | ±20 | 1.75k | SimBus F | screw | Press-in PCB | IGBT half-bridge, NTC thermistor | Sonic FRD, XPT | - | for pump, for UPS, motors, fans |
| MIXA60HU1200VA | diode/transistor | 1.2k | 60 | 150 | ±20 | 290 | V1-A-Pack | screw | FASTON connectors | boost chopper, buck chopper, H-bridge | Sonic FRD, XPT | - | - |
| MIXA60W1200TED | transistor/transistor | 1.2k | 60 | 150 | ±20 | 290 | E2-Pack | screw | Press-in PCB | IGBT three-phase bridge, NTC thermistor | Sonic FRD, XPT | - | photovoltaics, motors |
| MIXA60WB1200TEH | diode/transistor | 1.2k | 60 | 150 | ±20 | 290 | E3-Pack | screw | Press-in PCB | buck chopper, three-phase diode bridge, IGBT three-phase bridge, NTC thermistor | Sonic FRD, XPT | - | photovoltaics, motors |
| MIXA60WH1200TEH | diode/transistor | 1.2k | 60 | 150 | ±20 | 290 | E3-Pack | screw | Press-in PCB | buck chopper, three-phase diode bridge, IGBT three-phase bridge, NTC thermistor | Sonic FRD, XPT | - | for pump, photovoltaics, motors, fans |
| MIXA61H1200ED | transistor/transistor | 1.2k | 60 | 150 | ±20 | 290 | E2-Pack | screw | Press-in PCB | H-bridge | Sonic FRD, XPT | - | photovoltaics, motors |
| MIXA61WB1200TEH | diode/transistor | 1.2k | 190 | - | - | - | E3-Pack | screw | Press-in PCB | boost chopper, three-phase diode bridge, IGBT three-phase bridge, NTC thermistor | XPT | - | - |
| MIXA80R1200VA | diode/transistor | 1.2k | 84 | 225 | ±20 | 390 | V1-A-Pack | screw | FASTON connectors | boost chopper | Sonic FRD, XPT | - | for pump, photovoltaics, motors, fans |
| MIXA80W1200PTEH | transistor/transistor | 1.2k | 84 | - | - | - | E3-Pack | screw | Press-in PCB | IGBT three-phase bridge, NTC thermistor | XPT | - | - |
| MIXA80W1200TED | transistor/transistor | 1.2k | 84 | 225 | ±20 | 390 | E2-Pack | screw | Press-in PCB | IGBT three-phase bridge, NTC thermistor | Sonic FRD, XPT | - | photovoltaics, motors |
| MIXA80W1200TEH | transistor/transistor | 1.2k | 84 | 225 | ±20 | 390 | E3-Pack | screw | Press-in PCB | IGBT three-phase bridge, NTC thermistor | Sonic FRD, XPT | - | photovoltaics, motors |
| MIXA81H1200EH | transistor/transistor | 1.2k | 84 | 225 | ±20 | 390 | E3-Pack | screw | Press-in PCB | H-bridge | Sonic FRD, XPT | - | photovoltaics, motors |
| MIXA81WB1200TEH | diode/transistor | 1.2k | 84 | 225 | ±20 | 390 | E3-Pack | screw | Press-in PCB | buck chopper, three-phase diode bridge, IGBT three-phase bridge, NTC thermistor | Sonic FRD, XPT | - | for pump, photovoltaics, motors, fans |
| MIXG120W1200PTEH | transistor/transistor | 1.2k | 140 | - | - | - | E3-Pack | screw | Press-in PCB | IGBT three-phase bridge, NTC thermistor | X2PT | - | - |
| MIXG120W1200TEH | transistor/transistor | 1.2k | 140 | - | - | - | E3-Pack | screw | Press-in PCB | IGBT three-phase bridge, NTC thermistor | X2PT | - | - |
| MIXG180W1200PTEH | transistor/transistor | 1.2k | 195 | - | - | - | E3-Pack | screw | Press-in PCB | IGBT three-phase bridge, NTC thermistor | X2PT | - | - |
| MIXG180W1200TEH | transistor/transistor | 1.2k | 195 | - | - | - | E3-Pack | screw | Press-in PCB | IGBT three-phase bridge, NTC thermistor | X2PT | - | - |
| MIXG240RF1200PTED | diode/transistor | 1.2k | 250 | - | - | - | E2-Pack PFP | screw | Press-Fit | boost chopper | X2PT | - | - |
| MIXG240W1200PTEH | transistor/transistor | 1.2k | 233 | - | - | - | E3-Pack | screw | Press-in PCB | IGBT three-phase bridge, NTC thermistor | X2PT | - | - |
| MIXG240W1200PZTEH | transistor/transistor | 1.2k | 233 | - | - | - | E3-Pack | screw | Press-in PCB | current shunt, IGBT three-phase bridge, NTC thermistor | X2PT | - | - |
| MIXG240W1200TEH | transistor/transistor | 1.2k | 233 | - | - | - | E3-Pack | screw | Press-in PCB | IGBT three-phase bridge, NTC thermistor | X2PT | - | - |
| MIXG300PF1700TSF | transistor/transistor | 1.7k | 315 | - | - | - | SimBus F | screw | Press-in PCB | IGBT half-bridge, NTC thermistor | X2PT | - | - |
| MIXG330PF1200PTSF | transistor/transistor | 1.2k | - | - | - | - | SimBus F | screw | Press-in PCB | IGBT half-bridge, NTC thermistor | X2PT | - | - |
| MIXG330PF1200TSF | transistor/transistor | 1.2k | - | - | - | - | SimBus F | screw | Press-in PCB | IGBT half-bridge, NTC thermistor | X2PT | - | - |
| MIXG450PF1700TSF | transistor/transistor | 1.7k | 435 | - | - | - | SimBus F | screw | Press-in PCB | IGBT half-bridge, NTC thermistor | X2PT | - | - |
| MIXG490PF1200PTSF | transistor/transistor | 1.2k | - | - | - | - | SimBus F | screw | Press-in PCB | IGBT half-bridge, NTC thermistor | X2PT | - | - |
| MIXG490PF1200TSF | transistor/transistor | 1.2k | - | - | - | - | SimBus F | screw | Press-in PCB | IGBT half-bridge, NTC thermistor | X2PT | - | - |
| MIXG70W1200TED | transistor/transistor | 1.2k | 79 | - | - | - | E2-Pack | screw | Press-in PCB | IGBT three-phase bridge, NTC thermistor | X2PT | - | - |
| MKI100-12F8 | diode/transistor | 1.2k | 125 | 200 | ±20 | 640 | E3-Pack | screw | Press-in PCB | H-bridge | HiPerFRED, NPT | - | - |
| MKI50-06A7 | transistor/transistor | 600 | 50 | 100 | ±20 | 225 | E2-Pack | screw | Press-in PCB | H-bridge, NTC thermistor | NPT | - | for UPS, motors |
| MKI50-06A7T | transistor/transistor | 600 | 50 | 100 | ±20 | 225 | E2-Pack | screw | Press-in PCB | H-bridge | NPT | - | for UPS, motors |
| MKI50-12F7 | transistor/transistor | 1.2k | 45 | 100 | ±20 | 350 | E2-Pack | screw | Press-in PCB | H-bridge | HiPerFRED, NPT | - | motors |
| MKI65-06A7T | transistor/transistor | 600 | - | - | - | - | E2-Pack | screw | Press-in PCB | H-bridge, NTC thermistor | NPT | - | motors |
| MKI75-06A7 | transistor/transistor | 600 | 60 | 120 | ±20 | 280 | E2-Pack | screw | Press-in PCB | H-bridge, NTC thermistor | NPT | - | for UPS, motors |
| MKI75-06A7T | transistor/transistor | 600 | 60 | 120 | ±20 | 280 | E2-Pack | screw | Press-in PCB | H-bridge | NPT | - | for UPS, motors |
| MUBW100-06A8 | diode/transistor | 600 | 85 | 200 | ±20 | 410 | E3-Pack | screw | Press-in PCB | buck chopper, three-phase diode bridge, IGBT three-phase bridge, NTC thermistor | NPT | - | motors |
| MUBW10-06A6K | diode/transistor | 600 | 8 | 18 | ±20 | 50 | E1-Pack | screw | Press-in PCB | buck chopper, three-phase diode bridge, IGBT three-phase bridge, NTC thermistor | NPT | - | motors |
| MUBW10-06A7 | diode/transistor | 600 | 15 | 20 | ±20 | 85 | E2-Pack | screw | Press-in PCB | buck chopper, three-phase diode bridge, IGBT three-phase bridge, NTC thermistor | NPT | - | motors |
| MUBW10-12A7 | diode/transistor | 1.2k | 25 | 35 | ±20 | 180 | E2-Pack | screw | Press-in PCB | buck chopper, three-phase diode bridge, IGBT three-phase bridge, NTC thermistor | NPT | - | motors |
| MUBW15-06A6K | diode/transistor | 600 | 14 | 20 | ±20 | 75 | E1-Pack | screw | Press-in PCB | buck chopper, three-phase diode bridge, IGBT three-phase bridge, NTC thermistor | NPT | - | motors |
| MUBW15-06A7 | diode/transistor | 600 | 18 | 30 | ±20 | 100 | E2-Pack | screw | Press-in PCB | buck chopper, three-phase diode bridge, IGBT three-phase bridge, NTC thermistor | NPT | - | motors |
| MUBW15-12T7 | diode/transistor | 1.2k | 15 | 60 | ±20 | 140 | E2-Pack | screw | Press-in PCB | buck chopper, three-phase diode bridge, IGBT three-phase bridge, NTC thermistor | NPT | - | motors |
| MUBW20-06A6K | diode/transistor | 600 | 17 | 30 | ±20 | 85 | E1-Pack | screw | Press-in PCB | buck chopper, three-phase diode bridge, IGBT three-phase bridge, NTC thermistor | NPT | - | motors |
| MUBW25-06A6K | diode/transistor | 600 | 21 | 40 | ±20 | 100 | E1-Pack | screw | Press-in PCB | buck chopper, three-phase diode bridge, IGBT three-phase bridge, NTC thermistor | NPT | - | motors |
| MUBW25-12A7 | diode/transistor | 1.2k | 35 | 50 | ±20 | 225 | E2-Pack | screw | Press-in PCB | buck chopper, three-phase diode bridge, IGBT three-phase bridge, NTC thermistor | NPT | - | motors |
| MUBW30-06A7 | diode/transistor | 600 | 35 | 60 | ±20 | 180 | E2-Pack | screw | Press-in PCB | buck chopper, three-phase diode bridge, IGBT three-phase bridge, NTC thermistor | NPT | - | motors |
| MUBW30-12A6K | diode/transistor | 1.2k | 21 | 45 | ±20 | 130 | E1-Pack | screw | Press-in PCB | buck chopper, three-phase diode bridge, IGBT three-phase bridge, NTC thermistor | NPT | - | motors |
| MUBW35-06A6K | diode/transistor | 600 | 29 | 60 | ±20 | 130 | E1-Pack | screw | Press-in PCB | buck chopper, three-phase diode bridge, IGBT three-phase bridge, NTC thermistor | NPT | - | motors |
| MUBW35-12A8 | diode/transistor | 1.2k | 35 | 70 | ±20 | 225 | E3-Pack | screw | Press-in PCB | buck chopper, three-phase diode bridge, IGBT three-phase bridge, NTC thermistor | NPT | - | motors |
| MUBW50-06A8 | diode/transistor | 600 | 50 | 100 | ±20 | 250 | E3-Pack | screw | Press-in PCB | buck chopper, three-phase diode bridge, IGBT three-phase bridge, NTC thermistor | NPT | - | motors |
| MUBW50-12A8 | diode/transistor | 1.2k | 60 | 100 | ±20 | 350 | E3-Pack | screw | Press-in PCB | buck chopper, three-phase diode bridge, IGBT three-phase bridge, NTC thermistor | NPT | - | motors |
| MUBW50-12T8 | diode/transistor | 1.2k | 50 | 200 | ±20 | 270 | E3-Pack | screw | Press-in PCB | buck chopper, three-phase diode bridge, IGBT three-phase bridge, NTC thermistor | - | motors | |
| MUBW50-17T8 | diode/transistor | 1.7k | 53 | 100 | ±20 | 290 | E3-Pack | screw | Press-in PCB | buck chopper, three-phase diode bridge, IGBT three-phase bridge, NTC thermistor | - | - | motors |
| MUBW75-06A8 | diode/transistor | 600 | 65 | 150 | ±20 | 320 | E3-Pack | screw | Press-in PCB | buck chopper, three-phase diode bridge, IGBT three-phase bridge, NTC thermistor | NPT | - | motors |
| MUBW75-12T8 | diode/transistor | 1.2k | 75 | 300 | ±20 | 355 | E3-Pack | screw | Press-in PCB | buck chopper, three-phase diode bridge, IGBT three-phase bridge, NTC thermistor | - | - | motors |
| MUBW75-17T8 | diode/transistor | 1.7k | 34 | 60 | ±20 | 450 | E3-Pack | screw | Press-in PCB | buck chopper, three-phase diode bridge, IGBT three-phase bridge, NTC thermistor | - | - | motors |
| MWI100-06A8 | transistor/transistor | 600 | 88 | 200 | ±20 | 410 | E3-Pack | screw | Press-in PCB | IGBT three-phase bridge | NPT | - | motors |
| MWI100-12A8 | transistor/transistor | 1.2k | 110 | 200 | ±20 | 640 | E3-Pack | screw | Press-in PCB | IGBT three-phase bridge | NPT | - | motors |
| MWI150-12T8T | transistor/transistor | 1.2k | 150 | 300 | ±20 | 690 | E3-Pack | screw | Press-in PCB | IGBT three-phase bridge, NTC thermistor | - | photovoltaics, motors | |
| MWI15-12A7 | transistor/transistor | 1.2k | 20 | 35 | ±20 | 140 | E2-Pack | screw | Press-in PCB | IGBT three-phase bridge | NPT | - | motors |
| MWI200-06A8 | transistor/transistor | 600 | 115 | 400 | ±20 | 675 | E3-Pack | screw | Press-in PCB | IGBT three-phase bridge | NPT | - | motors |
| MWI25-12A7T | transistor/transistor | 1.2k | 35 | 70 | ±20 | 225 | E2-Pack | screw | Press-in PCB | IGBT three-phase bridge, NTC thermistor | NPT | - | motors |
| MWI30-06A7 | transistor/transistor | 600 | 30 | 60 | ±20 | 140 | E2-Pack | screw | Press-in PCB | IGBT three-phase bridge | NPT | - | motors |
| MWI30-06A7T | transistor/transistor | 600 | 30 | 60 | ±20 | 140 | E2-Pack | screw | Press-in PCB | IGBT three-phase bridge, NTC thermistor | NPT | - | motors |
| MWI35-12A7 | transistor/transistor | 1.2k | 44 | 70 | ±20 | - | E2-Pack | screw | Press-in PCB | IGBT three-phase bridge | NPT | - | motors |
| MWI50-12A7 | transistor/transistor | 1.2k | 60 | 100 | ±20 | - | E2-Pack | screw | Press-in PCB | IGBT three-phase bridge | NPT | - | motors |
| MWI50-12T7T | transistor/transistor | 1.2k | 50 | 100 | ±20 | 270 | E2-Pack | screw | Press-in PCB | IGBT three-phase bridge, NTC thermistor | - | - | photovoltaics, motors |
| MWI60-12T6K | transistor/transistor | 1.2k | 41 | 70 | ±20 | 200 | E1-Pack | screw | Press-in PCB | IGBT three-phase bridge, NTC thermistor | NPT | - | for UPS, motors |
| MWI75-06A7T | transistor/transistor | 600 | 60 | 120 | ±20 | 280 | E2-Pack | screw | Press-in PCB | IGBT three-phase bridge, NTC thermistor | NPT | - | motors |
| MWI75-12A8 | transistor/transistor | 1.2k | 85 | 150 | ±20 | 500 | E3-Pack | screw | Press-in PCB | IGBT three-phase bridge | NPT | - | motors |
| MWI75-12T7T | transistor/transistor | 1.2k | 75 | 100 | ±20 | 355 | E2-Pack | screw | Press-in PCB | IGBT three-phase bridge, NTC thermistor | - | - | photovoltaics, motors |
| MWI80-12T6K | transistor/transistor | 1.2k | 56 | 100 | ±20 | 270 | E1-Pack | screw | Press-in PCB | IGBT three-phase bridge, NTC thermistor | HiPerFRED | - | for UPS, motors |
| VUB116-16NOXT | diode/transistor | 1.2k | 84 | 225 | ±20 | 390 | E2-Pack | screw | Press-in PCB | buck chopper, three-phase diode bridge, NTC thermistor | - | - | Inverter |
| VUB135-22NO1 | diode/transistor | 1.7k | 80 | 150 | ±20 | 445 | E2-Pack | screw | Press-in PCB | buck chopper, three-phase diode bridge, NTC thermistor | - | Inverter | |
| VUB160-16NOX | diode/transistor | 1.2k | 175 | 450 | ±20 | 695 | V2-Pack | screw | Press-in PCB | buck chopper, three-phase diode bridge | X2PT | - | Inverter |
| VUI30-12N1 | diode/transistor | 1.2k | 65 | - | ±20 | - | V1-A-Pack | screw | FASTON connectors | 3-phase PFC | FRED, NPT | - | Inverter |
| VUI72-16NOXT | diode/transistor | 1.2k | 40 | 105 | ±20 | 195 | V1-A-Pack | screw | FASTON connectors | buck chopper, three-phase diode bridge, NTC thermistor | - | - | Inverter |
| VVZB120-16IOX | diode/thyristor/IGBT | 1.2k | 180 | 300 | ±20 | - | V2-Pack | screw | Press-in PCB | boost chopper, 3-phase diode-thyristor bridge | - | - | Inverter |
| VVZB135-16IOXT | diode/thyristor/IGBT | 1.2k | 84 | 225 | ±20 | 390 | E2-Pack | screw | Press-in PCB | boost chopper, 3-phase diode-thyristor bridge, NTC thermistor | X2PT | - | Inverter |
| VVZB170-16IOXT | diode/thyristor/IGBT | 1.2k | 140 | 300 | ±20 | 500 | E2-Pack | screw | Press-in PCB | boost chopper, 3-phase diode-thyristor bridge, NTC thermistor | X2PT | - | Inverter |
