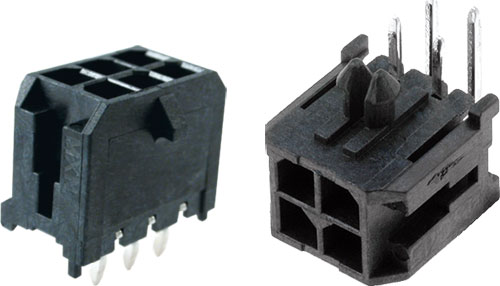

Socket; male; MOLEX
| Manufacturer | MOLEX |
| Connector | socket |
| Contacts pitch | 3mm |
| Kind | male |
| Type of connector | wire-board |
| Locking system | for latch |
| Manufacturer series | Micro-Fit 3.0 |
| Symbol | No. of pins | Layout | Orientation | Mechanical mounting | Electr. mounting | Plating | Maximum current | Connector variant |
|---|---|---|---|---|---|---|---|---|
| [A] | ||||||||
| MX-43045-0200 | 2 | 2x1 | angled 90° | on PCBs | THT | tinned | 8.5 | Glow-Wire; PCB snap-in |
| MX-43045-0202 | 2 | 2x1 | angled 90° | on PCBs | THT | gold-plated | 8.5 | Glow-Wire; PCB snap-in |
| MX-43045-0206 | 2 | 2x1 | horizontal | - | - | - | - | - |
| MX-43045-0209 | 2 | 2x1 | angled 90° | - | THT | tinned | 8.5 | Glow-Wire; PCB snap-in |
| MX-43045-0210 | 2 | 2x1 | - | - | - | - | - | - |
| MX-43045-0212 | 2 | 2x1 | straight | - | THT | tinned | 5 | Glow-Wire; with peg |
| MX-43045-0213 | 2 | 2x1 | - | - | - | - | - | - |
| MX-43045-0214 | 2 | 2x1 | - | - | - | - | - | - |
| MX-43045-0215 | 2 | 2x1 | - | - | - | - | - | - |
| MX-43045-0218 | 2 | 2x1 | vertical | - | SMT | tinned | 5 | Glow-Wire |
| MX-43045-0219 | 2 | 2x1 | - | - | - | - | - | - |
| MX-43045-0221 | 2 | 2x1 | - | - | - | - | - | - |
| MX-43045-0222 | 2 | 2x1 | - | - | - | - | - | - |
| MX-43045-0224 | 2 | 2x1 | - | - | - | - | - | - |
| MX-43045-0225 | 2 | 2x1 | - | - | - | - | - | - |
| MX-43045-0227 | 2 | 2x1 | - | - | - | - | - | - |
| MX-43045-0228 | 2 | 2x1 | - | - | - | - | - | - |
| MX-43045-0400 | 4 | 2x2 | angled 90° | on PCBs | THT | tinned | 8.5 | Glow-Wire; PCB snap-in |
| MX-43045-0401 | 4 | 2x2 | angled 90° | on PCBs | THT | gold-plated | 8.5 | Glow-Wire; PCB snap-in |
| MX-43045-0402 | 4 | 2x2 | angled 90° | - | - | - | - | - |
| MX-43045-0406 | 4 | 2x2 | horizontal | - | SMT | tinned | 5 | Glow-Wire; PCB snap-in |
| MX-43045-0407 | 4 | 2x2 | - | - | - | - | - | - |
| MX-43045-0408 | 4 | 2x2 | horizontal | - | SMT | gold-plated | 5 | Glow-Wire; PCB snap-in |
| MX-43045-0409 | 4 | 2x2 | horizontal | - | SMT | tinned | 5 | Glow-Wire |
| MX-43045-0410 | 4 | 2x2 | angled 90° | - | - | - | - | - |
| MX-43045-0411/C | 4 | 2x2 | horizontal | - | SMT | gold-plated | 5 | Glow-Wire |
| MX-43045-0412 | 4 | 2x2 | straight | - | THT | tinned | 5 | Glow-Wire; with peg |
| MX-43045-0413 | 4 | 2x2 | straight | - | THT | gold-plated | 5 | Glow-Wire; PCB snap-in |
| MX-43045-0414 | 4 | 2x2 | straight | - | THT | gold-plated | 8.5 | Glow-Wire |
| MX-43045-0415 | 4 | 2x2 | - | - | - | - | - | - |
| MX-43045-0418 | 4 | 2x2 | horizontal | - | SMT | tinned | 5 | Glow-Wire; with peg |
| MX-43045-0419 | 4 | 2x2 | - | - | - | - | - | - |
| MX-43045-0420 | 4 | 2x2 | - | - | - | - | - | - |
| MX-43045-0421 | 4 | 2x2 | - | - | - | - | - | - |
| MX-43045-0422 | 4 | 2x2 | angled 90° | - | THT | gold-plated | 5 | Glow-Wire; PCB snap-in |
| MX-43045-0423 | 4 | 2x2 | - | - | - | - | - | - |
| MX-43045-0424 | 4 | 2x2 | - | - | - | - | - | - |
| MX-43045-0425 | 4 | 2x2 | - | - | - | - | - | - |
| MX-43045-0426 | 4 | 2x2 | - | - | - | - | - | - |
| MX-43045-0427 | 4 | 2x2 | - | - | - | - | - | - |
| MX-43045-0428 | 4 | 2x2 | - | - | - | - | - | |
| MX-43045-0600 | 6 | 2x3 | angled 90° | on PCBs | THT | tinned | 8.5 | Glow-Wire; PCB snap-in |
| MX-43045-0601 | 6 | 2x3 | angled 90° | on PCBs | THT | gold-plated | 8.5 | Glow-Wire; PCB snap-in |
| MX-43045-0602 | 6 | 2x3 | - | - | - | - | - | - |
| MX-43045-0606 | 6 | 2x3 | - | - | - | - | - | - |
| MX-43045-0607 | 6 | 2x3 | - | - | - | - | - | - |
| MX-43045-0609 | 6 | 2x3 | horizontal | - | SMT | tinned | 5 | Glow-Wire; with peg |
| MX-43045-0610 | 6 | 2x3 | angled 90° | - | - | - | - | - |
| MX-43045-0611 | 6 | 2x3 | - | - | - | - | - | - |
| MX-43045-0612 | 6 | 2x3 | straight | - | THT | tinned | 5 | Glow-Wire; with peg |
| MX-43045-0613 | 6 | 2x3 | straight | - | THT | gold-plated | 5 | Glow-Wire; PCB snap-in |
| MX-43045-0614 | 6 | 2x3 | - | - | - | - | - | - |
| MX-43045-0616 | 6 | 2x3 | - | - | - | - | - | - |
| MX-43045-0618 | 6 | 2x3 | vertical | - | SMT | tinned | 5 | Glow-Wire |
| MX-43045-0619 | 6 | 2x3 | - | - | - | - | - | - |
| MX-43045-0620 | 6 | 2x3 | horizontal | - | SMT | tinned | 5 | Glow-Wire; with peg |
| MX-43045-0621 | 6 | 2x3 | - | - | - | - | - | - |
| MX-43045-0622 | 6 | 2x3 | - | - | - | - | - | - |
| MX-43045-0623 | 6 | 2x3 | - | - | - | - | - | - |
| MX-43045-0624 | 6 | 2x3 | - | - | - | - | - | - |
| MX-43045-0625 | 6 | 2x3 | - | - | - | - | - | - |
| MX-43045-0626 | 6 | 2x3 | - | - | - | - | - | - |
| MX-43045-0627 | 6 | 2x3 | - | - | - | - | - | - |
| MX-43045-0628 | 6 | 2x3 | - | - | - | - | - | - |
| MX-43045-0800 | 8 | 2x4 | angled 90° | on PCBs | THT | tinned | 8.5 | Glow-Wire; PCB snap-in |
| MX-43045-0801 | 8 | 2x4 | angled 90° | on PCBs | THT | gold-plated | 8.5 | Glow-Wire; PCB snap-in |
| MX-43045-0802 | 8 | 2x4 | angled 90° | - | - | - | - | - |
| MX-43045-0806 | 8 | 2x4 | - | - | - | - | - | - |
| MX-43045-0809 | 8 | 2x4 | horizontal | - | SMT | tinned | 5 | Glow-Wire; with peg |
| MX-43045-0810 | 8 | 2x4 | angled 90° | - | - | - | - | - |
| MX-43045-0812 | 8 | 2x4 | straight | - | THT | tinned | 5 | Glow-Wire; with peg |
| MX-43045-0813 | 8 | 2x4 | straight | - | THT | gold-plated | 5 | Glow-Wire; PCB snap-in |
| MX-43045-0814 | 8 | 2x4 | straight | - | THT | gold-plated | 8.5 | Glow-Wire; PCB snap-in |
| MX-43045-0815 | 8 | 2x4 | - | - | - | - | - | - |
| MX-43045-0818 | 8 | 2x4 | - | - | - | - | - | - |
| MX-43045-0818/C | 8 | 2x4 | vertical | - | SMT | tinned | 5 | Glow-Wire |
| MX-43045-0819 | 8 | 2x4 | - | - | - | - | - | - |
| MX-43045-0820 | 8 | 2x4 | - | - | - | - | - | - |
| MX-43045-0822 | 8 | 2x4 | - | - | - | - | - | - |
| MX-43045-0823 | 8 | 2x4 | - | - | - | - | - | - |
| MX-43045-0824 | 8 | 2x4 | - | - | - | - | - | - |
| MX-43045-0825 | 8 | 2x4 | - | - | - | - | - | - |
| MX-43045-0826 | 8 | 2x4 | - | - | - | - | - | - |
| MX-43045-0827 | 8 | 2x4 | - | - | - | - | - | - |
| MX-43045-0828 | 8 | 2x4 | - | - | - | - | - | - |
| MX-43045-0829 | 8 | 2x4 | - | - | - | - | - | - |
| MX-43045-1000 | 10 | 2x5 | angled 90° | on PCBs | THT | tinned | 8.5 | Glow-Wire; PCB snap-in |
| MX-43045-1001 | 10 | 2x5 | angled 90° | on PCBs | THT | gold-plated | 8.5 | Glow-Wire; PCB snap-in |
| MX-43045-1002 | 10 | 2x5 | angled 90° | - | - | - | - | - |
| MX-43045-1006 | 10 | 2x5 | - | - | - | - | - | - |
| MX-43045-1008 | 10 | 2x5 | - | - | - | - | - | - |
| MX-43045-1009 | 10 | 2x5 | - | - | - | - | - | - |
| MX-43045-1010 | 10 | 2x5 | angled 90° | - | - | - | - | - |
| MX-43045-1012 | 10 | 2x5 | straight | - | THT | tinned | 5 | Glow-Wire; with peg |
| MX-43045-1013 | 10 | 2x5 | - | - | - | - | - | - |
| MX-43045-1014 | 10 | 2x5 | - | - | - | - | - | - |
| MX-43045-1015 | 10 | 2x5 | - | - | - | - | - | - |
| MX-43045-1018 | 10 | 2x5 | vertical | - | SMT | tinned | 5 | Glow-Wire |
| MX-43045-1019 | 10 | 2x5 | - | - | - | - | - | - |
| MX-43045-1020 | 10 | 2x5 | - | - | - | - | - | - |
| MX-43045-1021 | 10 | 2x5 | - | - | - | - | - | - |
| MX-43045-1024 | 10 | 2x5 | - | - | - | - | - | - |
| MX-43045-1025 | 10 | 2x5 | - | - | - | - | - | - |
| MX-43045-1027 | 10 | 2x5 | straight | - | THT | tinned | 5 | Glow-Wire; with peg |
| MX-43045-1028 | 10 | 2x5 | - | - | - | - | - | - |
| MX-43045-1200 | 12 | 2x6 | angled 90° | on PCBs | THT | tinned | 8.5 | Glow-Wire; PCB snap-in |
| MX-43045-1201 | 12 | 2x6 | angled 90° | on PCBs | THT | gold-plated | 8.5 | Glow-Wire; PCB snap-in |
| MX-43045-1202 | 12 | 2x6 | angled 90° | - | - | - | - | - |
| MX-43045-1206 | 12 | 2x6 | - | - | - | - | - | - |
| MX-43045-1209 | 12 | 2x6 | horizontal | on PCBs | SMT | tinned | 5 | - |
| MX-43045-1212 | 12 | 2x6 | straight | - | THT | tinned | 5 | Glow-Wire; with peg |
| MX-43045-1213 | 12 | 2x6 | - | - | - | - | - | - |
| MX-43045-1214 | 12 | 2x6 | - | - | - | - | - | - |
| MX-43045-1218 | 12 | 2x6 | - | - | - | - | - | - |
| MX-43045-1219 | 12 | 2x6 | - | - | - | - | - | - |
| MX-43045-1220 | 12 | 2x6 | - | - | - | - | - | - |
| MX-43045-1221 | 12 | 2x6 | angled 90° | - | THT | tinned | 5 | Glow-Wire; PCB snap-in |
| MX-43045-1224 | 12 | 2x6 | - | - | - | - | - | - |
| MX-43045-1228 | 12 | 2x6 | - | - | - | - | - | - |
| MX-43045-1400 | 14 | 2x7 | angled 90° | on PCBs | THT | tinned | 8.5 | Glow-Wire; PCB snap-in |
| MX-43045-1409 | 14 | 2x7 | horizontal | - | SMT | tinned | 5 | Glow-Wire; with peg |
| MX-43045-1412 | 14 | 2x7 | straight | - | THT | tinned | 5 | Glow-Wire; with peg |
| MX-43045-1413 | 14 | 2x7 | - | - | - | - | - | - |
| MX-43045-1414 | 14 | 2x7 | - | - | - | - | - | - |
| MX-43045-1418 | 14 | 2x7 | - | - | - | - | - | - |
| MX-43045-1419 | 14 | 2x7 | - | - | - | - | - | - |
| MX-43045-1600 | 16 | 2x8 | angled 90° | on PCBs | THT | tinned | 8.5 | Glow-Wire; PCB snap-in |
| MX-43045-1601 | 16 | 2x8 | angled 90° | on PCBs | THT | gold-plated | 8.5 | Glow-Wire; PCB snap-in |
| MX-43045-1606 | 16 | 2x8 | horizontal | - | SMT | tinned | 5 | Glow-Wire; PCB snap-in |
| MX-43045-1609 | 16 | 2x8 | - | - | - | - | - | - |
| MX-43045-1612 | 16 | 2x8 | straight | - | THT | tinned | 5 | Glow-Wire; PCB snap-in |
| MX-43045-1613 | 16 | 2x8 | - | - | - | - | - | - |
| MX-43045-1618 | 16 | 2x8 | - | - | - | - | - | - |
| MX-43045-1800 | 18 | 2x9 | angled 90° | on PCBs | THT | tinned | 8.5 | Glow-Wire; PCB snap-in |
| MX-43045-1809 | 18 | 2x9 | horizontal | - | SMT | tinned | 5 | Glow-Wire; with peg |
| MX-43045-1812 | 18 | 2x9 | straight | - | THT | tinned | 5 | Glow-Wire; PCB snap-in |
| MX-43045-1818 | 18 | 2x9 | - | - | - | - | - | - |
| MX-43045-1821 | 18 | 2x9 | angled 90° | - | THT | tinned | 5 | Glow-Wire; PCB snap-in |
| MX-43045-1827 | 18 | 2x9 | - | - | - | - | - | - |
| MX-43045-2000 | 20 | 2x10 | angled 90° | on PCBs | THT | tinned | 8.5 | Glow-Wire; PCB snap-in |
| MX-43045-2007 | 20 | 2x10 | angled 90° | - | SMT | tinned | 8.5 | Glow-Wire; PCB snap-in |
| MX-43045-2012 | 20 | 2x10 | straight | - | THT | tinned | 5 | Glow-Wire; PCB snap-in |
| MX-43045-2013 | 20 | 2x10 | - | - | - | - | - | - |
| MX-43045-2018 | 20 | 2x10 | - | - | - | - | - | - |
| MX-43045-2019 | 20 | 2x10 | - | - | - | - | - | - |
| MX-43045-2027 | 20 | 2x10 | - | - | - | - | - | - |
| MX-43045-2101 | 20 | 2x10 | angled 90° | - | - | - | - | - |
| MX-43045-2200 | 22 | 2x11 | angled 90° | on PCBs | THT | tinned | 8.5 | Glow-Wire; PCB snap-in |
| MX-43045-2212 | 22 | 2x11 | straight | - | THT | tinned | 5 | Glow-Wire; with peg |
| MX-43045-2400 | 24 | 2x12 | angled 90° | on PCBs | THT | tinned | 8.5 | Glow-Wire; PCB snap-in |
| MX-43045-2406 | 24 | 2x12 | horizontal | - | SMT | tinned | 5 | Glow-Wire; PCB snap-in |
| MX-43045-2409 | 24 | 2x12 | - | - | - | - | - | - |
| MX-43045-2412 | 24 | 2x12 | - | - | - | - | - | - |
| MX-43045-2418 | 24 | 2x12 | - | - | - | - | - | - |
| MX-43045-2428 | 24 | 2x12 | - | - | - | - | - | - |
| MX-44428-0401 | 4 | 2x2 | angled 90° | on PCBs | THT | tinned | 8.5 | - |
| MX-44428-2401 | 24 | 2x12 | angled 90° | on PCBs | THT | tinned | 8.5 | - |
