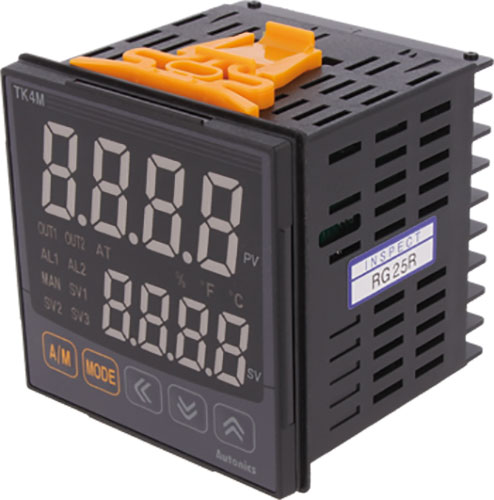

Temperature; TK4M; AUTONICS
| Manufacturer | AUTONICS |
| Mounting | on panel |
| IP rating | IP65 |
| Operating temperature | -10...50°C |
| The programming method | foil keypad |
| Controlled parameter | temperature |
| Regulation for output 1 | ON-OFF, P, PD, PI, PID |
| Kind of temperature sensor | Cu100, Cu50, JPt100, Ni120, Pt100, Pt50, thermocouple B, thermocouple C, thermocouple E, thermocouple G, thermocouple J, thermocouple K, thermocouple L, thermocouple N, thermocouple PLII, thermocouple R, thermocouple S, thermocouple T, thermocouple U |
| Input properties | analogue voltage; current analog; RTD; thermocouple |
| Display height 1 | 20mm |
| Display 2 height | 15mm |
| Mounting hole | 68x68mm |
| Body dimensions | 72x72x70.5mm |
| Display | LED x2 |
| Controlled parameter range | -1999...9999 |
| Manufacturer series | TK4M |
| Kind of input 1 | 0...100mV, 0...10V, 0...20mA, 0...5V, 4...20mA, universal |
| Type of automation module | regulator |
| Symbol | Usup | Usup | Kind of output 1 | Kind of output 3 | Kind of output 2 | Output 2 electrical parameters |
|---|---|---|---|---|---|---|
| [V AC] | [V DC] | |||||
| TK4M-14RN | 100...240 | - | SPST-NO | alarm, SPST-NO | - | - |
| TK4M-12CC | 24 | 24...48 | analogue, SSR | alarm, SPST-NO | transfer, SSR | 4...20mA, 11V DC / 20mA |
| TK4M-12CN | 24 | 24...48 | analogue, SSR | alarm, SPST-NO | - | - |
| TK4M-12CR | 24 | 24...48 | analogue, SSR | alarm, SPST-NO | alarm, SPST-NO | 250V AC / 3A |
| TK4M-12RC | 24 | 24...48 | SPST-NO | alarm, SPST-NO | transfer, SSR | 4...20mA, 11V DC / 20mA |
| TK4M-12RN | 24 | 24...48 | SPST-NO | alarm, SPST-NO | - | - |
| TK4M-12RR | 24 | 24...48 | SPST-NO | alarm, SPST-NO | alarm, SPST-NO | 250V AC / 3A |
| TK4M-14CC | 100...240 | - | analogue, SSR | alarm, SPST-NO | transfer, SSR | 4...20mA, 11V DC / 20mA |
| TK4M-14CN | 100...240 | - | analogue, SSR | alarm, SPST-NO | - | - |
| TK4M-14CR | 100...240 | - | analogue, SSR | alarm, SPST-NO | alarm, SPST-NO | 250V AC / 3A |
| TK4M-14RC | 100...240 | - | SPST-NO | alarm, SPST-NO | transfer, SSR | 4...20mA, 11V DC / 20mA |
| TK4M-14RR | 100...240 | - | SPST-NO | alarm, SPST-NO | alarm, SPST-NO | 250V AC / 3A |
| TK4M-14SC | 100...240 | - | SSR | alarm, SPST-NO | transfer, SSR | 4...20mA, 11V DC / 20mA |
| TK4M-14SN | 100...240 | - | SSR | alarm, SPST-NO | - | - |
| TK4M-14SR | 100...240 | - | SSR | alarm, SPST-NO | alarm, SPST-NO | 250V AC / 3A |
| TK4M-22CC | 24 | 24...48 | analogue, SSR | alarm x2, SPST-NO | transfer, SSR | 4...20mA, 11V DC / 20mA |
| TK4M-22CN | 24 | 24...48 | analogue, SSR | alarm x2, SPST-NO | - | - |
| TK4M-22CR | 24 | 24...48 | analogue, SSR | alarm x2, SPST-NO | alarm, SPST-NO | 250V AC / 3A |
| TK4M-22RC | 24 | 24...48 | SPST-NO | alarm x2, SPST-NO | transfer, SSR | 4...20mA, 11V DC / 20mA |
| TK4M-22RN | 24 | 24...48 | SPST-NO | alarm x2, SPST-NO | - | - |
| TK4M-22RR | 24 | 24...48 | SPST-NO | alarm x2, SPST-NO | alarm, SPST-NO | 250V AC / 3A |
| TK4M-24CC | 24 | 24...48 | analogue, SSR | alarm x2, SPST-NO | transfer, SSR | 4...20mA, 11V DC / 20mA |
| TK4M-24CN | 100...240 | - | analogue, SSR | alarm x2, SPST-NO | - | - |
| TK4M-24CR | 100...240 | - | analogue, SSR | alarm x2, SPST-NO | alarm, SPST-NO | 250V AC / 3A |
| TK4M-24RC | 100...240 | - | SPST-NO | alarm x2, SPST-NO | transfer, SSR | 4...20mA, 11V DC / 20mA |
| TK4M-24RN | 100...240 | - | SPST-NO | alarm x2, SPST-NO | - | - |
| TK4M-24RR | 100...240 | - | SPST-NO | alarm x2, SPST-NO | alarm, SPST-NO | 250V AC / 3A |
| TK4M-24SC | 100...240 | - | SSR | alarm x2, SPST-NO | transfer, SSR | 4...20mA, 11V DC / 20mA |
| TK4M-24SN | 100...240 | - | SSR | alarm x2, SPST-NO | - | - |
| TK4M-24SR | 100...240 | - | SSR | alarm x2, SPST-NO | alarm, SPST-NO | 250V AC / 3A |
| TK4M-A2CC | 24 | 24...48 | analogue, SSR | alarm x2, transfer, SPST-NO | transfer, SSR | 4...20mA, 11V DC / 20mA |
| TK4M-A2CN | 24 | 24...48 | analogue, SSR | alarm x2, transfer, SPST-NO | - | - |
| TK4M-A2CR | 24 | 24...48 | analogue, SSR | alarm x2, transfer, SPST-NO | alarm, SPST-NO | 250V AC / 3A |
| TK4M-A2RC | 24 | 24...48 | SPST-NO | alarm x2, transfer, SPST-NO | transfer, SSR | 4...20mA, 11V DC / 20mA |
| TK4M-A2RN | 24 | 24...48 | SPST-NO | alarm x2, transfer, SPST-NO | - | - |
| TK4M-A2RR | 24 | 24...48 | SPST-NO | alarm x2, transfer, SPST-NO | alarm, SPST-NO | 250V AC / 3A |
| TK4M-A4CC | 100...240 | - | analogue, SSR | alarm x2, transfer, SPST-NO | transfer, SSR | 4...20mA, 11V DC / 20mA |
| TK4M-A4CN | 100...240 | - | analogue, SSR | alarm x2, transfer, SPST-NO | - | - |
| TK4M-A4CR | 100...240 | - | analogue, SSR | alarm x2, transfer, SPST-NO | alarm, SPST-NO | 250V AC / 3A |
| TK4M-A4RC | 100...240 | - | SPST-NO | alarm x2, transfer, SPST-NO | transfer, SSR | 4...20mA, 11V DC / 20mA |
| TK4M-A4RN | 100...240 | - | SPST-NO | alarm x2, transfer, SPST-NO | - | - |
| TK4M-A4RR | 100...240 | - | SPST-NO | alarm x2, transfer, SPST-NO | alarm, SPST-NO | 250V AC / 3A |
| TK4M-A4SC | 100...240 | - | SSR | alarm x2, transfer, SPST-NO | transfer, SSR | 4...20mA, 11V DC / 20mA |
| TK4M-A4SN | 100...240 | - | SSR | alarm x2, transfer, SPST-NO | - | - |
| TK4M-A4SR | 100...240 | - | SSR | alarm x2, transfer, SPST-NO | alarm, SPST-NO | 250V AC / 3A |
| TK4M-B2CC | 24 | 24...48 | analogue, SSR | alarm x2, RS485 Modbus RTU, SPST-NO | transfer, SSR | 4...20mA, 11V DC / 20mA |
| TK4M-B2CN | 24 | 24...48 | analogue, SSR | alarm x2, RS485 Modbus RTU, SPST-NO | - | - |
| TK4M-B2CR | 24 | 24...48 | analogue, SSR | alarm x2, RS485 Modbus RTU, SPST-NO | alarm, SPST-NO | 250V AC / 3A |
| TK4M-B2RC | 24 | 24...48 | SPST-NO | alarm x2, RS485 Modbus RTU, SPST-NO | transfer, SSR | 4...20mA, 11V DC / 20mA |
| TK4M-B2RN | 24 | 24...48 | SPST-NO | alarm x2, RS485 Modbus RTU, SPST-NO | - | - |
| TK4M-B2RR | 24 | 24...48 | SPST-NO | alarm x2, RS485 Modbus RTU, SPST-NO | alarm, SPST-NO | 250V AC / 3A |
| TK4M-B4CC | 100...240 | - | analogue, SSR | alarm x2, RS485 Modbus RTU, SPST-NO | transfer, SSR | 4...20mA, 11V DC / 20mA |
| TK4M-B4CN | 100...240 | - | analogue, SSR | alarm x2, RS485 Modbus RTU, SPST-NO | - | - |
| TK4M-B4CR | 100...240 | - | analogue, SSR | alarm x2, RS485 Modbus RTU, SPST-NO | alarm, SPST-NO | 250V AC / 3A |
| TK4M-B4RC | 100...240 | - | SPST-NO | alarm x2, RS485 Modbus RTU, SPST-NO | transfer, SSR | 4...20mA, 11V DC / 20mA |
| TK4M-B4RN | 100...240 | - | SPST-NO | alarm x2, RS485 Modbus RTU, SPST-NO | - | - |
| TK4M-B4RR | 100...240 | - | SPST-NO | alarm x2, RS485 Modbus RTU, SPST-NO | alarm, SPST-NO | 250V AC / 3A |
| TK4M-B4SC | 100...240 | - | SSR | alarm x2, RS485 Modbus RTU, SPST-NO | transfer, SSR | 4...20mA, 11V DC / 20mA |
| TK4M-B4SN | 100...240 | - | SSR | alarm x2, RS485 Modbus RTU, SPST-NO | - | - |
| TK4M-B4SR | 100...240 | - | SSR | alarm x2, RS485 Modbus RTU, SPST-NO | alarm, SPST-NO | 250V AC / 3A |
| TK4M-R2CC | 24 | 24...48 | analogue, SSR | alarm, transfer, SPST-NO | transfer, SSR | 4...20mA, 11V DC / 20mA |
| TK4M-R2CN | 24 | 24...48 | analogue, SSR | alarm, transfer, SPST-NO | - | - |
| TK4M-R2CR | 24 | 24...48 | analogue, SSR | alarm, transfer, SPST-NO | alarm, SPST-NO | 250V AC / 3A |
| TK4M-R2RC | 24 | 24...48 | SPST-NO | alarm, transfer, SPST-NO | transfer, SSR | 4...20mA, 11V DC / 20mA |
| TK4M-R2RN | 24 | 24...48 | SPST-NO | alarm, transfer, SPST-NO | - | - |
| TK4M-R2RR | 24 | 24...48 | SPST-NO | alarm, transfer, SPST-NO | alarm, SPST-NO | 250V AC / 3A |
| TK4M-R4CC | 100...240 | - | analogue, SSR | alarm, transfer, SPST-NO | transfer, SSR | 4...20mA, 11V DC / 20mA |
| TK4M-R4CN | 100...240 | - | analogue, SSR | alarm, transfer, SPST-NO | - | - |
| TK4M-R4CR | 100...240 | - | analogue, SSR | alarm, transfer, SPST-NO | alarm, SPST-NO | 250V AC / 3A |
| TK4M-R4RC | 100...240 | - | SPST-NO | alarm, transfer, SPST-NO | transfer, SSR | 4...20mA, 11V DC / 20mA |
| TK4M-R4RN | 100...240 | - | SPST-NO | alarm, transfer, SPST-NO | - | - |
| TK4M-R4RR | 100...240 | - | SPST-NO | alarm, transfer, SPST-NO | alarm, SPST-NO | 250V AC / 3A |
| TK4M-R4SC | 100...240 | - | SSR | alarm, transfer, SPST-NO | transfer, SSR | 4...20mA, 11V DC / 20mA |
| TK4M-R4SN | 100...240 | - | SSR | alarm, transfer, SPST-NO | - | - |
| TK4M-R4SR | 100...240 | - | SSR | alarm, transfer, SPST-NO | alarm, SPST-NO | 250V AC / 3A |
| TK4M-T2CC | 24 | 24...48 | analogue, SSR | alarm, RS485 Modbus RTU | transfer, SSR | 4...20mA, 11V DC / 20mA |
| TK4M-T2CN | 24 | 24...48 | analogue, SSR | alarm, RS485 Modbus RTU | - | - |
| TK4M-T2CR | 24 | 24...48 | analogue, SSR | alarm, RS485 Modbus RTU | alarm, SPST-NO | 250V AC / 3A |
| TK4M-T2RC | 24 | 24...48 | SPST-NO | alarm, RS485 Modbus RTU | transfer, SSR | 4...20mA, 11V DC / 20mA |
| TK4M-T2RN | 24 | 24...48 | SPST-NO | alarm, RS485 Modbus RTU | - | - |
| TK4M-T2RR | 24 | 24...48 | SPST-NO | alarm, RS485 Modbus RTU | alarm, SPST-NO | 250V AC / 3A |
| TK4M-T4CC | 100...240 | - | analogue, SSR | alarm, RS485 Modbus RTU | transfer, SSR | 4...20mA, 11V DC / 20mA |
| TK4M-T4CN | 100...240 | - | analogue, SSR | alarm, RS485 Modbus RTU | - | - |
| TK4M-T4CR | 100...240 | - | analogue, SSR | alarm, RS485 Modbus RTU | alarm, SPST-NO | 250V AC / 3A |
| TK4M-T4RC | 100...240 | - | SPST-NO | alarm, RS485 Modbus RTU | transfer, SSR | 4...20mA, 11V DC / 20mA |
| TK4M-T4RN | 100...240 | - | SPST-NO | alarm, RS485 Modbus RTU | - | - |
| TK4M-T4RR | 100...240 | - | SPST-NO | alarm, RS485 Modbus RTU | alarm, SPST-NO | 250V AC / 3A |
| TK4M-T4SC | 100...240 | - | SSR | alarm, RS485 Modbus RTU | transfer, SSR | 4...20mA, 11V DC / 20mA |
| TK4M-T4SN | 100...240 | - | SSR | alarm, RS485 Modbus RTU | - | - |
| TK4M-T4SR | 100...240 | - | SSR | alarm, RS485 Modbus RTU | alarm, SPST-NO | 250V AC / 3A |
