Alimentations à impulsion pour intégrer de série ECL
| Fabricant | XP POWER |
| Référence | Série du fabricant | Type d'accessoires pour alimentations | Type alimentation | Type de convertisseur | Montage | Connexion électrique | Nombre de sorties | Puissance | Ualim. | Ualim. | Tension de sortie | Usortie2 | Usortie3 | Ibase | Isortie2 | Isortie3 | Performance | Protection | Tension d'isolement | Fréq. de commut. | Température de travail | Dim. extérieures | Dimension | Consommation d'énergie sans charge | Tension d'entrée | Genre de alimentation | Usage - série/fabricant |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| [W] | [V AC] | [V DC] | [V DC] | [V DC] | [V DC] | [A] | [A] | [mA] | [%] | [kV] | [kHz] | [°C] | [mm] | [W] | |||||||||||||

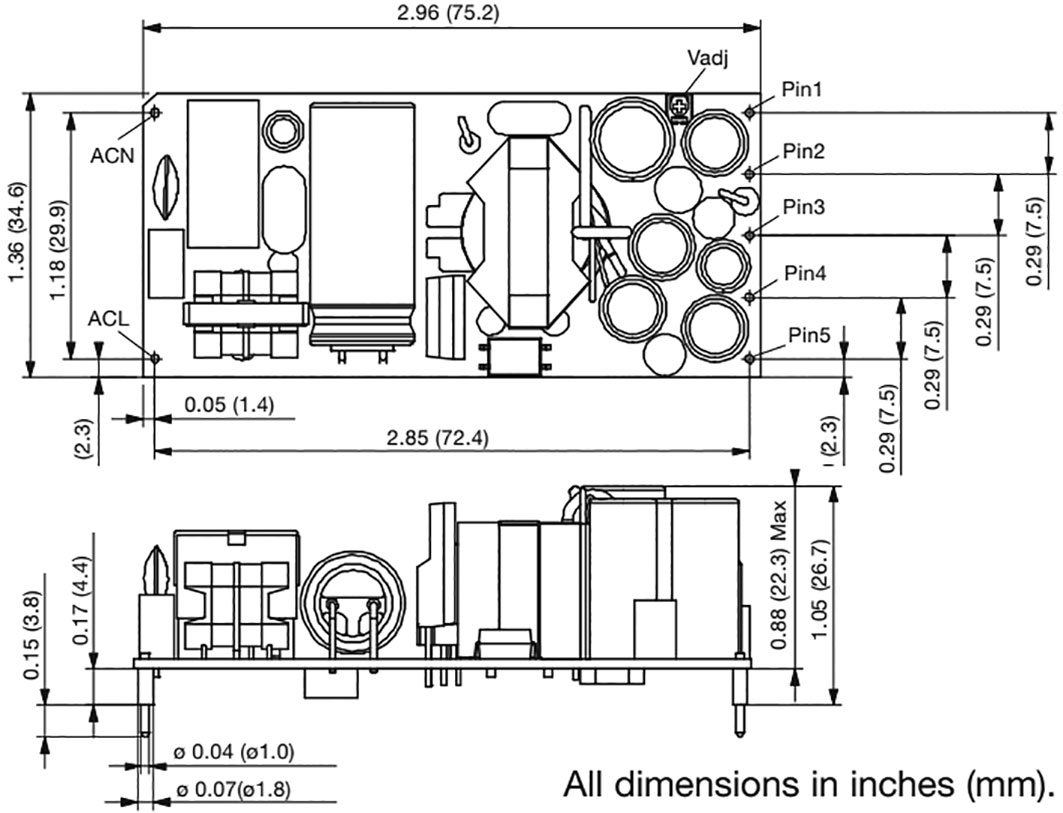

| ECL05US05-E | ECL | - | - | AC/DC | PCB | THT | 1 | 5 | - | - | 5 | - | - | 1 | - | - | 75 | anti-surcharge OPP, anti-surtension OVP, contre court-circuit SCP | 3 | 70 | -20...70 | 52,4x27,2x23 | Graph.1. | <0,3 | 85...264V AC, 120...370V DC | - | - |
| ECL10US03-P | ECL | - | impulsions | - | PCB | THT | 1 | 10 | 85...264 | 120...370 | 3,3 | - | - | 2,6 | - | - | 72 | anti-surcharge OPP, anti-surtension OVP, contre court-circuit SCP | 3 | 70 | -20...70 | 49,5x25,4x18,5 | Graph.2. | <0,3 | - | - | - |
| ECL10US05-P | ECL | - | impulsions | - | PCB | THT | 1 | 10 | 85...264 | 120...370 | 5 | - | - | 2 | - | - | 75 | anti-surcharge OPP, anti-surtension OVP, contre court-circuit SCP | 3 | 70 | -20...70 | 49,5x25,4x18,5 | Graph.2. | <0,3 | - | - | - |

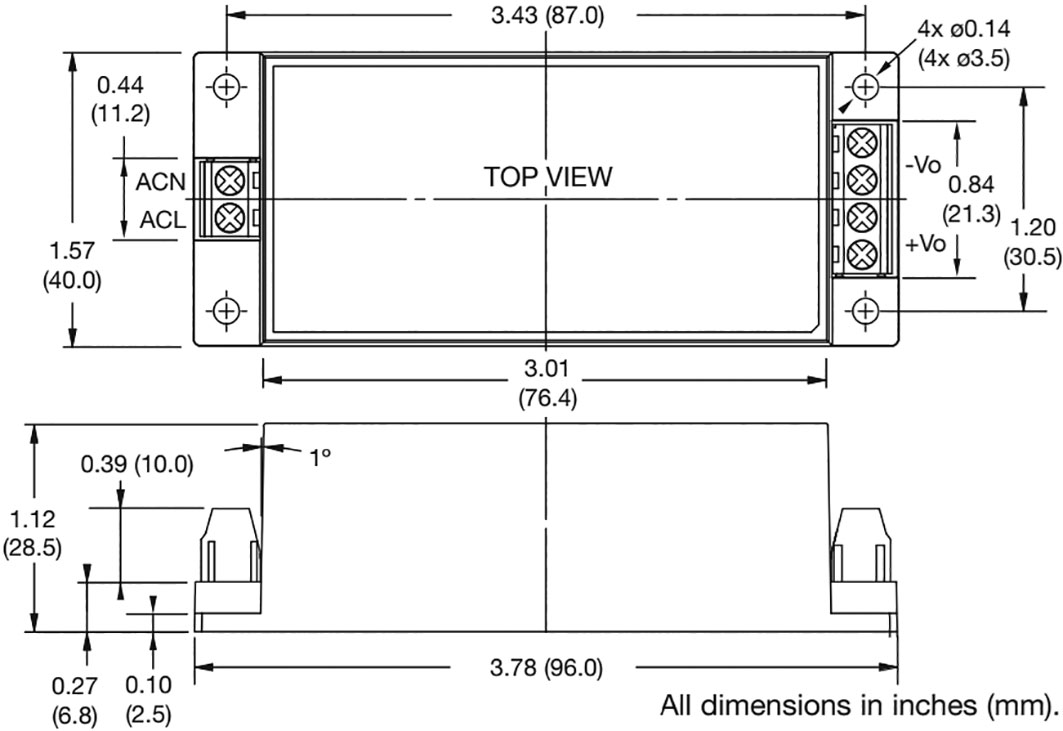

| ECL10US05-T | ECL | - | impulsions | - | trous de fixation, vis M3 | prise avec mécanisme à loquet | 1 | 10 | 85...264 | 120...370 | 5 | - | - | 2 | - | - | 75 | anti-surcharge OPP, anti-surtension OVP, contre court-circuit SCP | 3 | 70 | -20...70 | 65x25,4x18,5 | Graph.3. | <0,3 | - | ouvert | - |
| ECL10US09-E | ECL | - | - | AC/DC | PCB | THT | 1 | 10 | - | - | 9 | - | - | 1100m | - | - | 78 | anti-surcharge OPP, anti-surtension OVP, contre court-circuit SCP | 3 | 70 | -20...70 | 52,4x27,2x23 | Graph.1. | <0,3 | 85...264V AC, 120...370V DC | - | - |
| ECL10US09-P | ECL | - | impulsions | - | PCB | THT | 1 | 10 | 85...264 | 120...370 | 9 | - | - | 1100m | - | - | 78 | anti-surcharge OPP, anti-surtension OVP, contre court-circuit SCP | 3 | 70 | -20...70 | 49,5x25,4x18,5 | Graph.1. | <0,3 | - | - | - |
| ECL10US09-T | ECL | - | impulsions | - | trous de fixation, vis M3 | prise avec mécanisme à loquet | 1 | 10 | 85...264 | 120...370 | 9 | - | - | 1100m | - | - | 78 | anti-surcharge OPP, anti-surtension OVP, contre court-circuit SCP | 3 | 70 | -20...70 | 65x25,4x18,5 | Graph.3. | <0,3 | - | ouvert | - |
| ECL10US12-E | ECL | - | - | AC/DC | PCB | THT | 1 | 10 | - | - | 12 | - | - | 830m | - | - | 78 | anti-surcharge OPP, anti-surtension OVP, contre court-circuit SCP | 3 | 70 | -20...70 | 52,4x27,2x23 | Graph.1. | <0,3 | 85...264V AC, 120...370V DC | - | - |
| ECL10US12-P | ECL | - | impulsions | - | PCB | THT | 1 | 10 | 85...264 | 120...370 | 12 | - | - | 830m | - | - | 78 | anti-surcharge OPP, anti-surtension OVP, contre court-circuit SCP | 3 | 70 | -20...70 | 49,5x25,4x18,5 | Graph.2. | <0,3 | - | - | - |
| ECL10US12-T | ECL | - | impulsions | - | trous de fixation, vis M3 | prise avec mécanisme à loquet | 1 | 10 | 85...264 | 120...370 | 12 | - | - | 830m | - | - | 78 | anti-surcharge OPP, anti-surtension OVP, contre court-circuit SCP | 3 | 70 | -20...70 | 65x25,4x18,5 | Graph.3. | <0,3 | - | ouvert | - |
| ECL10US15-E | ECL | - | - | AC/DC | PCB | THT | 1 | 10 | - | - | 15 | - | - | 670m | - | - | 80 | anti-surcharge OPP, anti-surtension OVP, contre court-circuit SCP | 3 | 70 | -20...70 | 52,4x27,2x23 | Graph.1. | <0,3 | 85...264V AC, 120...370V DC | - | - |
| ECL10US15-P | ECL | - | impulsions | - | PCB | THT | 1 | 10 | 85...264 | 120...370 | 15 | - | - | 670m | - | - | 80 | anti-surcharge OPP, anti-surtension OVP, contre court-circuit SCP | 3 | 70 | -20...70 | 49,5x25,4x18,5 | Graph.2. | <0,3 | - | - | - |
| ECL10US24-E | ECL | - | - | AC/DC | PCB | THT | 1 | 10 | - | - | 24 | - | - | 420m | - | - | 82 | anti-surcharge OPP, anti-surtension OVP, contre court-circuit SCP | 3 | 70 | -20...70 | 52,4x27,2x23 | Graph.1. | <0,3 | 85...264V AC, 120...370V DC | - | - |
| ECL10US24-P | ECL | - | impulsions | - | PCB | THT | 1 | 10 | 85...264 | 120...370 | 24 | - | - | 420m | - | - | 82 | anti-surcharge OPP, anti-surtension OVP, contre court-circuit SCP | 3 | 70 | -20...70 | 49,5x25,4x18,5 | Graph.2. | <0,3 | - | - | - |
| ECL10US48-E | ECL | - | - | AC/DC | PCB | THT | 1 | 10 | - | - | 48 | - | - | 210m | - | - | 82 | anti-surcharge OPP, anti-surtension OVP, contre court-circuit SCP | 3 | 70 | -20...70 | 52,4x27,2x23 | Graph.1. | <0,3 | 85...264V AC, 120...370V DC | - | - |
| ECL10US48-P | ECL | - | impulsions | - | PCB | THT | 1 | 10 | 85...264 | 120...370 | 48 | - | - | 210m | - | - | 82 | anti-surcharge OPP, anti-surtension OVP, contre court-circuit SCP | 3 | 70 | -20...70 | 49,5x25,4x18,5 | Graph.2. | <0,3 | - | - | - |
| ECL15US03-S | ECL | - | impulsions | - | pour rail DIN | vis de serrage | 1 | 15 | 85...264 | 120...370 | 3,3 | - | - | 3 | - | - | 75 | anti-surcharge OPP, anti-surtension OVP, contre court-circuit SCP | 3 | 70 | -20...70 | 84x34,5x26,4 | Graph.4. | <0,3 | - | pour le montage | - |
| ECL15US05-E | ECL | - | - | AC/DC | PCB | THT | 1 | 15 | - | - | 5 | - | - | 3 | - | - | 78 | anti-surcharge OPP, anti-surtension OVP, contre court-circuit SCP | 3 | 70 | -20...70 | 65x33,3x24,4 | Graph.5. | <0,3 | 85...264V AC, 120...370V DC | - | - |
| ECL15US05-P | ECL | - | impulsions | - | PCB | THT | 1 | 15 | 85...264 | 120...370 | 5 | - | - | 3 | - | - | 78 | anti-surcharge OPP, anti-surtension OVP, contre court-circuit SCP | 3 | 70 | -20...70 | 62x30,7x20 | Graph.6. | <0,3 | - | - | - |
| ECL15US05-S | ECL | - | impulsions | - | pour rail DIN | vis de serrage | 1 | 15 | 85...264 | 120...370 | 5 | - | - | 3 | - | - | 78 | anti-surcharge OPP, anti-surtension OVP, contre court-circuit SCP | 3 | 70 | -20...70 | 84x34,5x26,4 | Graph.4. | <0,3 | - | pour le montage | - |
| ECL15US05-T | ECL | - | impulsions | - | trous de fixation, vis M3 | prise avec mécanisme à loquet | 1 | 15 | 85...264 | 120...370 | 5 | - | - | 3 | - | - | 78 | anti-surcharge OPP, anti-surtension OVP, contre court-circuit SCP | 3 | 70 | -20...70 | 78,7x31,7x20 | Graph.7. | <0,3 | - | ouvert | - |
| ECL15US09-P | ECL | - | impulsions | - | PCB | THT | 1 | 15 | 85...264 | 120...370 | 9 | - | - | 1,67 | - | - | 80 | anti-surcharge OPP, anti-surtension OVP, contre court-circuit SCP | 3 | 70 | -20...70 | 62x30,7x20 | Graph.6. | <0,3 | - | - | - |
| ECL15US09-S | ECL | - | impulsions | - | pour rail DIN | vis de serrage | 1 | 15 | 85...264 | 120...370 | 9 | - | - | 1,67 | - | - | 80 | anti-surcharge OPP, anti-surtension OVP, contre court-circuit SCP | 3 | 70 | -20...70 | 84x34,5x26,4 | Graph.4. | <0,3 | - | pour le montage | - |
| ECL15US12-E | ECL | - | - | AC/DC | PCB | THT | 1 | 15 | - | - | 12 | - | - | 1,25 | - | - | 80 | anti-surcharge OPP, anti-surtension OVP, contre court-circuit SCP | 3 | 70 | -20...70 | 65x33,3x24,4 | Graph.5. | <0,3 | 85...264V AC, 120...370V DC | - | - |
| ECL15US12-P | ECL | - | impulsions | - | PCB | THT | 1 | 15 | 85...264 | 120...370 | 12 | - | - | 1,25 | - | - | 80 | anti-surcharge OPP, anti-surtension OVP, contre court-circuit SCP | 3 | 70 | -20...70 | 62x30,7x20 | Graph.6. | <0,3 | - | - | - |
| ECL15US12-S | ECL | - | impulsions | - | pour rail DIN | vis de serrage | 1 | 15 | 85...264 | 120...370 | 12 | - | - | 1,25 | - | - | 80 | anti-surcharge OPP, anti-surtension OVP, contre court-circuit SCP | 3 | 70 | -20...70 | 84x34,5x26,4 | Graph.4. | <0,3 | - | ouvert | - |
| ECL15US12-T | ECL | - | impulsions | - | trous de fixation, vis M3 | prise avec mécanisme à loquet | 1 | 15 | 85...264 | 120...370 | 12 | - | - | 1,25 | - | - | 80 | anti-surcharge OPP, anti-surtension OVP, contre court-circuit SCP | 3 | 70 | -20...70 | 78,7x31,7x20 | Graph.7. | <0,3 | - | ouvert | - |
| ECL15US15-E | ECL | - | - | AC/DC | PCB | THT | 1 | 15 | - | - | 15 | - | - | 1 | - | - | 80 | anti-surcharge OPP, anti-surtension OVP, contre court-circuit SCP | 3 | 70 | -20...70 | 65x33,3x24,4 | Graph.5. | <0,3 | 85...264V AC, 120...370V DC | - | - |
| ECL15US15-P | ECL | - | impulsions | - | PCB | THT | 1 | 15 | 85...264 | 120...370 | 15 | - | - | 1 | - | - | 80 | anti-surcharge OPP, anti-surtension OVP, contre court-circuit SCP | 3 | 70 | -20...70 | 62x30,7x20 | Graph.6. | <0,3 | - | - | - |
| ECL15US15-S | ECL | - | impulsions | - | pour rail DIN | vis de serrage | 1 | 15 | 85...264 | 120...370 | 15 | - | - | 1 | - | - | 80 | anti-surcharge OPP, anti-surtension OVP, contre court-circuit SCP | 3 | 70 | -20...70 | 84x34,5x26,4 | Graph.4. | <0,3 | - | pour le montage | - |
| ECL15US24-E | ECL | - | - | AC/DC | PCB | THT | 1 | 15 | - | - | 24 | - | - | 630m | - | - | 82 | anti-surcharge OPP, anti-surtension OVP, contre court-circuit SCP | 3 | 70 | -20...70 | 65x33,3x24,4 | Graph.5. | <0,3 | 85...264V AC, 120...370V DC | - | - |
| ECL15US24-S | ECL | - | impulsions | - | pour rail DIN | vis de serrage | 1 | 15 | 85...264 | 120...370 | 24 | - | - | 630m | - | - | 82 | anti-surcharge OPP, anti-surtension OVP, contre court-circuit SCP | 3 | 70 | -20...70 | 84x34,5x26,4 | Graph.4. | <0,3 | - | pour le montage | - |
| ECL15US24-T | ECL | - | impulsions | - | trous de fixation, vis M3 | prise avec mécanisme à loquet | 1 | 15 | 85...264 | 120...370 | 24 | - | - | 630m | - | - | 82 | anti-surcharge OPP, anti-surtension OVP, contre court-circuit SCP | 3 | 70 | -20...70 | 78,7x31,7x20 | Graph.7. | <0,3 | - | ouvert | - |
| ECL15US48-E | ECL | - | - | AC/DC | PCB | THT | 1 | 15 | - | - | 48 | - | - | 320m | - | - | 82 | anti-surcharge OPP, anti-surtension OVP, contre court-circuit SCP | 3 | 70 | -20...70 | 65x33,3x24,4 | Graph.5. | <0,3 | 85...264V AC, 120...370V DC | - | - |
| ECL15UD01-E | ECL | - | - | AC/DC | PCB | THT | 2 | 15 | - | - | 12 | -12 | - | 650m | 650m | - | 82 | anti-surcharge OPP, anti-surtension OVP, contre court-circuit SCP | 3 | 70 | -20...70 | 65x33,5x24,4 | Graph.8. | <0,3 | 85...264V AC, 120...370V DC | - | - |
| ECL15UD01-S | ECL | - | impulsions | - | pour rail DIN | vis de serrage | 2 | 15 | 85...264 | 120...370 | 12 | -12 | - | 650m | 650m | - | 82 | anti-surcharge OPP, anti-surtension OVP, contre court-circuit SCP | 3 | 70 | -20...70 | 84x34,5x26,4 | Graph.9. | <0,3 | - | pour le montage | - |
| ECL15UD01-T | ECL | - | impulsions | - | trous de fixation, vis M3 | prise avec mécanisme à loquet | 2 | 15 | 85...264 | 120...370 | 12 | -12 | - | 650m | 650m | - | 82 | anti-surcharge OPP, anti-surtension OVP, contre court-circuit SCP | 3 | 70 | -20...70 | 78,7x31,8x23,1 | Graph.10. | <0,3 | - | ouvert | - |
| ECL15UD02-E | ECL | - | - | AC/DC | PCB | THT | 2 | 15 | - | - | 15 | -15 | - | 500m | 500m | - | 82 | anti-surcharge OPP, anti-surtension OVP, contre court-circuit SCP | 3 | 70 | -20...70 | 65x33,5x24,4 | Graph.8. | <0,3 | 85...264V AC, 120...370V DC | - | - |
| ECL15UD02-P | ECL | - | impulsions | - | PCB | THT | 2 | 15 | 85...264 | 120...370 | 15 | -15 | - | 500m | 500m | - | 82 | anti-surcharge OPP, anti-surtension OVP, contre court-circuit SCP | 3 | 70 | -20...70 | 62x30,7x20 | Graph.11. | <0,3 | - | - | - |
| ECL15UD02-S | ECL | - | impulsions | - | pour rail DIN | vis de serrage | 2 | 15 | 85...264 | 120...370 | 15 | -15 | - | 500m | 500m | - | 82 | anti-surcharge OPP, anti-surtension OVP, contre court-circuit SCP | 3 | 70 | -20...70 | 84x34,5x26,4 | Graph.9. | <0,3 | - | pour le montage | - |
| ECL15UD02-T | ECL | - | impulsions | - | trous de fixation, vis M3 | prise avec mécanisme à loquet | 2 | 15 | 85...264 | 120...370 | 15 | -15 | - | 500m | 500m | - | 82 | anti-surcharge OPP, anti-surtension OVP, contre court-circuit SCP | 3 | 70 | -20...70 | 78,7x31,8x23,1 | Graph.10. | <0,3 | - | ouvert | - |
| ECL15UD03-E | ECL | - | - | AC/DC | PCB | THT | 2 | 15 | - | - | 5 | 12 | - | 1,5 | 625m | - | 81 | anti-surcharge OPP, anti-surtension OVP, contre court-circuit SCP | 3 | 70 | -20...70 | 65x33,5x24,4 | Graph.8. | <0,3 | 85...264V AC, 120...370V DC | - | - |
| ECL15UD03-P | ECL | - | impulsions | - | PCB | THT | 2 | 15 | 85...264 | 120...370 | 5 | 12 | - | 1,5 | 625m | - | 81 | anti-surcharge OPP, anti-surtension OVP, contre court-circuit SCP | 3 | 70 | -20...70 | 62x30,7x20 | Graph.11. | <0,3 | - | - | - |
| ECL15UD03-S | ECL | - | impulsions | - | pour rail DIN | vis de serrage | 2 | 15 | 85...264 | 120...370 | 5 | 12 | - | 1,5 | 625m | - | 81 | anti-surcharge OPP, anti-surtension OVP, contre court-circuit SCP | 3 | 70 | -20...70 | 84x34,5x26,4 | Graph.9. | <0,3 | - | pour le montage | - |
| ECL15UD03-T | ECL | - | impulsions | - | trous de fixation, vis M3 | prise avec mécanisme à loquet | 2 | 15 | 85...264 | 120...370 | 5 | 12 | - | 1,5 | 625m | - | 81 | anti-surcharge OPP, anti-surtension OVP, contre court-circuit SCP | 3 | 70 | -20...70 | 78,7x31,8x23,1 | Graph.10. | <0,3 | - | ouvert | - |
| ECL15UT02-S | ECL | - | impulsions | - | pour rail DIN | vis de serrage | 3 | 15 | 85...264 | 120...370 | 5 | 12 | -12 | 2 | 200m | 200 | 82 | anti-surcharge OPP, anti-surtension OVP, contre court-circuit SCP | 3 | 70 | -20...70 | 84x34,5x26,4 | Graph.9. | <0,3 | - | ouvert | - |
| ECL15UT02-T | ECL | - | impulsions | - | trous de fixation, vis M3 | prise avec mécanisme à loquet | 3 | 15 | 85...264 | 120...370 | 5 | 12 | -12 | 2 | 200m | 200 | 82 | anti-surcharge OPP, anti-surtension OVP, contre court-circuit SCP | 3 | 70 | -20...70 | 78,7x31,8x23,1 | Graph.10. | <0,3 | - | ouvert | - |
| ECL15UT03-E | ECL | - | - | AC/DC | PCB | THT | 3 | 15 | - | - | 5 | 15 | -15 | 2 | 150m | 150 | 81 | anti-surcharge OPP, anti-surtension OVP, contre court-circuit SCP | 3 | 70 | -20...70 | 65x33,5x24,4 | Graph.8. | <0,3 | 85...264V AC, 120...370V DC | - | - |
| ECL15UT03-P | ECL | - | impulsions | - | PCB | THT | 3 | 15 | 85...264 | 120...370 | 5 | 15 | -15 | 2 | 150m | 150 | 81 | anti-surcharge OPP, anti-surtension OVP, contre court-circuit SCP | 3 | 70 | -20...70 | 62x30,7x20 | Graph.11. | <0,3 | - | - | - |
| ECL15UT03-S | ECL | - | impulsions | - | pour rail DIN | vis de serrage | 3 | 15 | 85...264 | 120...370 | 5 | 15 | -15 | 2 | 150m | 150 | 81 | anti-surcharge OPP, anti-surtension OVP, contre court-circuit SCP | 3 | 70 | -20...70 | 84x34,5x26,4 | Graph.9. | <0,3 | - | pour le montage | - |
| ECL15UT03-T | ECL | - | impulsions | - | trous de fixation, vis M3 | prise avec mécanisme à loquet | 3 | 15 | 85...264 | 120...370 | 5 | 15 | -15 | 2 | 150m | 150 | 81 | anti-surcharge OPP, anti-surtension OVP, contre court-circuit SCP | 3 | 70 | -20...70 | 78,7x31,8x23,1 | Graph.10. | <0,3 | - | ouvert | - |
| ECL25US05-E | ECL | - | - | AC/DC | PCB | THT | 1 | 25 | - | - | 5 | - | - | 5 | - | - | 78 | anti-surcharge OPP, anti-surtension OVP, contre court-circuit SCP | 3 | 70 | -20...70 | 78,7x38,1x27,9 | Graph.12. | <0,3 | 85...264V AC, 120...370V DC | - | - |
| ECL25US05-P | ECL | - | impulsions | - | PCB | THT | 1 | 25 | 85...264 | 120...370 | 5 | - | - | 5 | - | - | 78 | anti-surcharge OPP, anti-surtension OVP, contre court-circuit SCP | 3 | 70 | -20...70 | 75,2x34,6x22,3 | Graph.13. | <0,3 | - | - | - |
| ECL25US05-S | ECL | - | impulsions | - | pour rail DIN | vis de serrage | 1 | 25 | 85...264 | 120...370 | 5 | - | - | 5 | - | - | 78 | anti-surcharge OPP, anti-surtension OVP, contre court-circuit SCP | 3 | 70 | -20...70 | 96x40x28,5 | Graph.14. | <0,3 | - | pour le montage | - |
| ECL25US05-T | ECL | - | impulsions | - | trous de fixation, vis M3 | prise avec mécanisme à loquet | 1 | 25 | 85...264 | 120...370 | 5 | - | - | 5 | - | - | 78 | anti-surcharge OPP, anti-surtension OVP, contre court-circuit SCP | 3 | 70 | -20...70 | 87,9x34,6x25,4 | Graph.15. | <0,3 | - | ouvert | - |
| ECL25US09-P | ECL | - | impulsions | - | PCB | THT | 1 | 25 | 85...264 | 120...370 | 9 | - | - | 2,8 | - | - | 80 | anti-surcharge OPP, anti-surtension OVP, contre court-circuit SCP | 3 | 70 | -20...70 | 75,2x34,6x22,3 | Graph.13. | <0,3 | - | - | - |
| ECL25US09-S | ECL | - | impulsions | - | pour rail DIN | vis de serrage | 1 | 25 | 85...264 | 120...370 | 9 | - | - | 2,8 | - | - | 80 | anti-surcharge OPP, anti-surtension OVP, contre court-circuit SCP | 3 | 70 | -20...70 | 96x40x28,5 | Graph.14. | <0,3 | - | pour le montage | - |
| ECL25US12-E | ECL | - | - | AC/DC | PCB | THT | 1 | 25 | - | - | 12 | - | - | 2,1 | - | - | 80 | anti-surcharge OPP, anti-surtension OVP, contre court-circuit SCP | 3 | 70 | -20...70 | 78,7x38,1x27,9 | Graph.12. | <0,3 | 85...264V AC, 120...370V DC | - | - |
| ECL25US12-P | ECL | - | impulsions | - | PCB | THT | 1 | 25 | 85...264 | 120...370 | 12 | - | - | 2,1 | - | - | 80 | anti-surcharge OPP, anti-surtension OVP, contre court-circuit SCP | 3 | 70 | -20...70 | 75,2x34,6x22,3 | Graph.13. | <0,3 | - | - | - |
| ECL25US12-T | ECL | - | impulsions | - | trous de fixation, vis M3 | prise avec mécanisme à loquet | 1 | 25 | 85...264 | 120...370 | 12 | - | - | 2,1 | - | - | 80 | anti-surcharge OPP, anti-surtension OVP, contre court-circuit SCP | 3 | 70 | -20...70 | 87,9x34,6x25,4 | Graph.15. | <0,3 | - | ouvert | - |
| ECL25US15-P | ECL | - | impulsions | - | PCB | THT | 1 | 25 | 85...264 | 120...370 | 15 | - | - | 1,67 | - | - | 80 | anti-surcharge OPP, anti-surtension OVP, contre court-circuit SCP | 3 | 70 | -20...70 | 75,2x34,6x22,3 | Graph.13. | <0,3 | - | - | - |
| ECL25US15-S | ECL | - | impulsions | - | pour rail DIN | vis de serrage | 1 | 25 | 85...264 | 120...370 | 15 | - | - | 1,67 | - | - | 80 | anti-surcharge OPP, anti-surtension OVP, contre court-circuit SCP | 3 | 70 | -20...70 | 96x40x28,5 | Graph.14. | <0,3 | - | pour le montage | - |
| ECL25US24-E | ECL | - | - | AC/DC | PCB | THT | 1 | 25 | - | - | 24 | - | - | 1,04 | - | - | 82 | anti-surcharge OPP, anti-surtension OVP, contre court-circuit SCP | 3 | 70 | -20...70 | 78,7x38,1x27,9 | Graph.12. | <0,3 | 85...264V AC, 120...370V DC | - | - |
| ECL25US24-P | ECL | - | impulsions | - | PCB | THT | 1 | 25 | 85...264 | 120...370 | 24 | - | - | 1,04 | - | - | 82 | anti-surcharge OPP, anti-surtension OVP, contre court-circuit SCP | 3 | 70 | -20...70 | 75,2x34,6x22,3 | Graph.13. | <0,3 | - | ouvert | - |
| ECL25US24-S | ECL | - | impulsions | - | pour rail DIN | vis de serrage | 1 | 25 | 85...264 | 120...370 | 24 | - | - | 1,04 | - | - | 82 | anti-surcharge OPP, anti-surtension OVP, contre court-circuit SCP | 3 | 70 | -20...70 | 96x40x28,5 | Graph.14. | <0,3 | - | pour le montage | - |
| ECL25US24-T | ECL | - | impulsions | - | trous de fixation, vis M3 | prise avec mécanisme à loquet | 1 | 25 | 85...264 | 120...370 | 24 | - | - | 1,04 | - | - | 82 | anti-surcharge OPP, anti-surtension OVP, contre court-circuit SCP | 3 | 70 | -20...70 | 87,9x34,6x25,4 | Graph.15. | <0,3 | - | ouvert | - |
| ECL30UD01-E | ECL | - | - | AC/DC | PCB | THT | 2 | 30 | - | - | 12 | -12 | - | 1,3 | 1,3 | - | 84 | anti-surcharge OPP, anti-surtension OVP, contre court-circuit SCP | 3 | 70 | -20...70 | 78,7x29,9x28,5 | Graph.16. | <0,3 | 85...264V AC, 120...370V DC | - | - |
| ECL30UD01-S | ECL | - | impulsions | - | pour rail DIN | vis de serrage | 2 | 30 | 85...264 | 120...370 | 12 | -12 | - | 1,3 | 1,3 | - | 84 | anti-surcharge OPP, anti-surtension OVP, contre court-circuit SCP | 3 | 70 | -20...70 | 96x40x28,5 | Graph.17. | <0,3 | - | pour le montage | - |
| ECL30UD01-T | ECL | - | impulsions | - | trous de fixation, vis M3 | prise avec mécanisme à loquet | 2 | 30 | 85...264 | 120...370 | 12 | -12 | - | 1,3 | 1,3 | - | 84 | anti-surcharge OPP, anti-surtension OVP, contre court-circuit SCP | 3 | 70 | -20...70 | 87,9x34,6x25,4 | Graph.18. | <0,3 | - | ouvert | - |
| ECL30UD02-E | ECL | - | - | AC/DC | PCB | THT | 2 | 30 | - | - | 15 | -15 | - | 1 | 1 | - | 83 | anti-surcharge OPP, anti-surtension OVP, contre court-circuit SCP | 3 | 70 | -20...70 | 78,7x29,9x28,5 | Graph.16. | <0,3 | 85...264V AC, 120...370V DC | - | - |
| ECL30UD02-P | ECL | - | impulsions | - | PCB | THT | 2 | 30 | 85...264 | 120...370 | 15 | -15 | - | 1 | 1 | - | 83 | anti-surcharge OPP, anti-surtension OVP, contre court-circuit SCP | 3 | 70 | -20...70 | 75,2x34,6x26,7 | Graph.19. | <0,3 | - | - | - |
| ECL30UD02-S | ECL | - | impulsions | - | pour rail DIN | vis de serrage | 2 | 30 | 85...264 | 120...370 | 15 | -15 | - | 1 | 1 | - | 83 | anti-surcharge OPP, anti-surtension OVP, contre court-circuit SCP | 3 | 70 | -20...70 | 96x40x28,5 | Graph.17. | <0,3 | - | pour le montage | - |
| ECL30UD02-T | ECL | - | impulsions | - | trous de fixation, vis M3 | prise avec mécanisme à loquet | 2 | 30 | 85...264 | 120...370 | 15 | -15 | - | 1 | 1 | - | 83 | anti-surcharge OPP, anti-surtension OVP, contre court-circuit SCP | 3 | 70 | -20...70 | 87,9x34,6x25,4 | Graph.18. | <0,3 | - | ouvert | - |
| ECL30UD03-E | ECL | - | - | AC/DC | PCB | THT | 2 | 30 | - | - | 5 | 12 | - | 3 | 1,3 | - | 81 | anti-surcharge OPP, anti-surtension OVP, contre court-circuit SCP | 3 | 70 | -20...70 | 78,7x29,9x28,5 | Graph.16. | <0,3 | 85...264V AC, 120...370V DC | - | - |
| ECL30UD03-P | ECL | - | impulsions | - | PCB | THT | 2 | 30 | 85...264 | 120...370 | 5 | 12 | - | 3 | 1,3 | - | 81 | anti-surcharge OPP, anti-surtension OVP, contre court-circuit SCP | 3 | 70 | -20...70 | 75,2x34,6x26,7 | Graph.19. | <0,3 | - | - | - |
| ECL30UD03-S | ECL | - | impulsions | - | pour rail DIN | vis de serrage | 2 | 30 | 85...264 | 120...370 | 5 | 12 | - | 3 | 1,3 | - | 81 | anti-surcharge OPP, anti-surtension OVP, contre court-circuit SCP | 3 | 70 | -20...70 | 96x40x28,5 | Graph.17. | <0,3 | - | pour le montage | - |
| ECL30UD03-T | ECL | - | impulsions | - | trous de fixation, vis M3 | prise avec mécanisme à loquet | 2 | 30 | 85...264 | 120...370 | 5 | 12 | - | 3 | 1,3 | - | 81 | anti-surcharge OPP, anti-surtension OVP, contre court-circuit SCP | 3 | 70 | -20...70 | 87,9x34,6x25,4 | Graph.18. | <0,3 | - | ouvert | - |
| ECL30UT02-S | ECL | - | impulsions | - | pour rail DIN | vis de serrage | 3 | 30 | 85...264 | 120...370 | 5 | 12 | -12 | 3 | 630m | 630 | 83 | anti-surcharge OPP, anti-surtension OVP, contre court-circuit SCP | 3 | 70 | -20...70 | 96x40x28,5 | Graph.17. | <0,3 | - | pour le montage | - |
| ECL30UT03-E | ECL | - | - | AC/DC | PCB | THT | 3 | 30 | - | - | 5 | 15 | -15 | 3 | 500m | 500 | 81 | anti-surcharge OPP, anti-surtension OVP, contre court-circuit SCP | 3 | 70 | -20...70 | 78,7x29,9x28,5 | Graph.16. | <0,3 | 85...264V AC, 120...370V DC | - | - |
| ECL30UT03-P | ECL | - | impulsions | - | PCB | THT | 3 | 30 | 85...264 | 120...370 | 5 | 15 | -15 | 3 | 500m | 500 | 81 | anti-surcharge OPP, anti-surtension OVP, contre court-circuit SCP | 3 | 70 | -20...70 | 75,2x34,6x26,7 | Graph.19. | <0,3 | - | - | - |
| ECL30UT03-S | ECL | - | impulsions | - | pour rail DIN | vis de serrage | 3 | 30 | 85...264 | 120...370 | 5 | 15 | -15 | 3 | 500m | 500 | 81 | anti-surcharge OPP, anti-surtension OVP, contre court-circuit SCP | 3 | 70 | -20...70 | 96x40x28,5 | Graph.17. | <0,3 | - | pour le montage | - |
| ECL30UT03-T | ECL | - | impulsions | - | trous de fixation, vis M3 | prise avec mécanisme à loquet | 3 | 30 | 85...264 | 120...370 | 5 | 15 | -15 | 3 | 500m | 500 | 81 | anti-surcharge OPP, anti-surtension OVP, contre court-circuit SCP | 3 | 70 | -20...70 | 87,9x34,6x25,4 | Graph.18. | <0,3 | - | ouvert | - |
| ECL15-DIN-CLIP | - | poignée de montage | - | - | pour rail DIN | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | ECL |
| ECL25/30-DIN-CLIP | - | poignée de montage | - | - | pour rail DIN | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | ECL |
