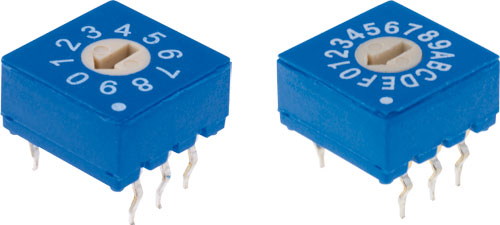

Encoding switches without knob
| Manufacturer | ECE |
| Type of switch | encoding switch |
| Manufacturer series | ERD |
| Output code | real code |
| Soldering temperature | 260°C / 5 s |
| Flammability rating | UL94V-0 |
| Switching torque | 4.9Ncm |
| Max. contact resistance: | 100mΩ |
| Min. insulation resistance | 1000MΩ |
| Contact material | copper alloy |
| Contact plating | gold-plated |
| Terminal pitch | 2.54mm |
| Operating temperature | -25...70°C |
| DC contacts rating @R* | 0.025A / 24V DC |
* at resistive load
| Symbol | Leads | Body dim. | Features | Mounting | Kind of encoding switch | Positions | Dimensions | Package |
|---|---|---|---|---|---|---|---|---|
| [mm] | ||||||||
| ERD108RFZ | for PCB, angled | 10x10x9.89 | without knob | THT | - | 8 | - | - |
| ERD108RMZ | for PCB | 10x10x5.4 | without knob; with seal tape | SMT | - | 8 | - | - |
| ERD108RSZ | for PCB | 10x10x5.4 | without knob | THT | - | 8 | - | - |
| ERD110RDZ | for PCB | 10x10x5.4 | without knob; with seal tape | SMT | DEC/BCD | 10 | - | reel |
| ERD110RMZ | for PCB | 10x10x5.4 | without knob; with seal tape | SMT | DEC/BCD | 10 | - | - |
| ERD110RSZ | for PCB | 10x10x5.4 | without knob | THT | DEC/BCD | 10 | Fig. 1. | - |
| ERD116RDZ | for PCB | 10x10x5.4 | without knob; with seal tape | SMT | HEX/BCD | 16 | - | reel |
| ERD116RSZ | for PCB | 10x10x5.4 | without knob | THT | HEX/BCD | 16 | Fig. 1. | - |
