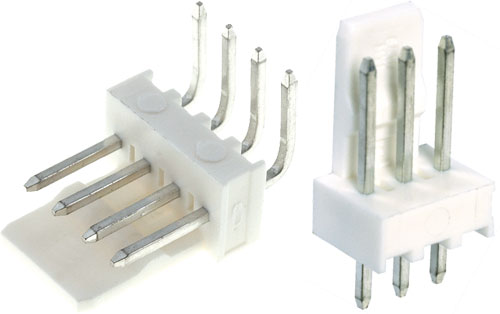

KK® male headers for PCB mounting, 2.54 mm pitch

KK<sup>®</sup> male headers for PCB mounting, 2.54 mm pitch, MX-171856-0002, MX-171856-0003 |EN|
ManufacturerMOLEX
Contacts pitch2.54mm
Electrical mountingTHT
Kindmale
Manufacturer seriesKK 254

Symbol Type of connector No. of pins Layout Connector Plating Orientation Imax Uoperating max Colour
[A] [V]
MX-171856-0002 wire-board 2 1x2 socket tinned straight - - black
MX-171856-0003 wire-board 3 1x3 socket tinned straight - - black
MX-171856-0004 wire-board 4 1x4 socket tinned straight - - black
MX-171856-0006 wire-board 6 1x6 socket tinned straight 4 250 black
MX-171857-0002 wire-board 2 1x2 socket tinned angled 90° 4 250 black
MX-171857-0003 wire-board 3 1x3 socket tinned angled 90° 4 250 black
MX-171857-0004 wire-board 4 1x4 socket tinned angled 90° 4 250 black
MX-171857-0006 wire-board 6 1x6 socket tinned angled 90° 4 250 black
MX-22-03-2021 pin strips 2 1x2 pin header tinned straight 4 250 white
MX-22-03-2031 pin strips 3 1x3 pin header tinned straight 4 250 white
MX-22-03-2041 pin strips 4 1x4 pin header tinned straight 4 250 white
MX-22-03-2051 pin strips 5 1x5 pin header tinned straight 4 250 white
MX-22-03-2061 pin strips 6 1x6 pin header tinned straight 4 250 white
MX-22-03-2101 pin strips 10 1x10 pin header tinned straight 4 250 white
MX-22-03-2121 pin strips 12 1x12 pin header tinned straight 4 250 white
MX-22-03-2151 pin strips 15 1x15 pin header tinned straight 4 250 white
MX-22-05-2021 wire-board 2 1x2 socket tinned angled 90° - - white
MX-22-05-2031 wire-board 3 1x3 socket tinned angled 90° - - white
MX-22-05-2051 wire-board 5 1x5 socket tinned angled 90° - - white
MX-22-05-2061 wire-board 6 1x6 socket tinned angled 90° - - white
MX-22-05-2071 wire-board 7 1x7 socket tinned angled 90° - - white
MX-22-05-2101 wire-board 10 1x10 socket tinned angled 90° - - white
MX-22-05-3021 wire-board 2 1x2 socket tinned angled 90° 4 250 white
MX-22-05-3031 wire-board 3 1x3 socket tinned angled 90° - - white
MX-22-05-3041 wire-board 4 1x4 socket tinned angled 90° - - white
MX-22-05-3061 wire-board 6 1x6 socket tinned angled 90° 4 500 white
MX-22-05-3071 wire-board 7 1x7 socket tinned angled 90° - - white
MX-22-05-3081 wire-board 8 1x8 socket tinned angled 90° 4 500 white
MX-22-05-3101 wire-board 10 1x10 socket tinned angled 90° - - white
MX-22-05-7098 wire-board 9 1x9 socket tinned angled 90° - - white
MX-22-05-7105 wire-board 10 1x10 socket tinned angled 90° - - white
MX-22-05-7108 wire-board 10 1x10 socket tinned angled 90° - - white
MX-22-05-7128 wire-board 12 1x12 socket tinned angled 90° - - white
MX-22-05-7148 wire-board 14 1x14 socket tinned angled 90° - - white
MX-22-11-1031 wire-board 3 1x3 socket gold-plated straight 4 500 white
MX-22-11-2022 wire-board 2 1x2 socket gold-plated straight 4 500 white
MX-22-11-2042 wire-board 4 1x4 socket gold-plated straight 4 500 white
MX-22-11-2052 wire-board 5 1x5 socket gold-plated straight 4 500 white
MX-22-11-2072 wire-board 7 1x7 socket gold-plated straight 4 500 white
MX-22-11-2082 wire-board 8 1x8 socket gold-plated straight 4 500 white
MX-22-11-2102 wire-board 10 1x10 socket gold-plated straight 4 500 white
MX-22-12-2024 wire-board 2 1x2 socket gold-plated angled 90° 4 500 white
MX-22-12-2031 wire-board 3 1x3 socket gold-plated angled 90° 4 500 white
MX-22-12-2034 wire-board 3 1x3 socket gold-plated angled 90° 4 500 white
MX-22-12-2044 wire-board 4 1x4 socket gold-plated angled 90° 4 500 white
MX-22-12-2054 wire-board 5 1x5 socket gold-plated angled 90° 4 500 white
MX-22-12-2064 wire-board 6 1x6 socket gold-plated angled 90° 4 500 white
MX-22-12-2084 wire-board 8 1x8 socket gold-plated angled 90° 4 500 white
MX-22-12-4092 wire-board 9 1x9 socket gold-plated angled 90° 4 500 white
MX-2214-2104 wire-board 10 1x10 socket tinned straight - - white
MX-22-23-2021 wire-board 2 1x2 socket tinned straight - - white
MX-22-23-2031 wire-board 3 1x3 socket tinned straight - - white
MX-22-23-2041 wire-board 4 1x4 socket tinned straight - - white
MX-22-23-2051 wire-board 5 1x5 socket tinned straight - - white
MX-22-23-2061 wire-board 6 1x6 socket tinned straight - - white
MX-22-23-2081 wire-board 8 1x8 socket tinned straight - - white
MX-22-23-2091 wire-board 9 1x9 socket tinned straight - - white
MX-22-23-2101 wire-board 10 1x10 socket tinned straight - - white
MX-22-27-2111 wire-board 11 1x11 socket tinned straight 4 500 white
MX-22-27-2131 wire-board 13 1x13 socket tinned straight 4 500 white
MX-22-28-4020 pin strips 2 1x2 socket tinned straight 4 500 black
MX-22-28-4027 pin strips 2 1x2 socket tinned straight 4 500 black
MX-22-28-4040 pin strips 4 1x4 socket tinned straight 4 500 black
MX-22-28-4160 pin strips 16 1x16 socket tinned straight 4 500 black
MX-22-28-4360 pin strips 36 1x36 socket tinned straight 4 500 black
MX-22-28-4361 pin strips 36 1x36 socket tinned straight 4 500 black
MX-22-28-4363 pin strips 36 1x36 socket tinned straight 4 500 black
MX-22-29-2031 wire-board 3 1x3 socket tinned, gold-plated straight 4 250 -
MX-22-29-2091 wire-board 9 1x9 socket gold-plated straight 4 500 white
MX-22-29-2161 wire-board 16 1x16 socket gold-plated straight 4 500 white
MX-38-00-1430 wire-board 10 1x10 socket tinned straight 2.5 500 -
MX-38-00-1432 wire-board 12 1x12 socket tinned straight 2.5 500 white
MX-38-00-1436 wire-board 16 1x16 socket tinned straight 2.5 500 white
MX-4030-07A-102 wire-board 7 1x7 socket tinned straight - - white
MX-47053-1000 wire-board 4 1x4 socket tinned straight 4 250 -
MX-6410-02A wire-board 2 1x2 socket tinned straight 4 250 white
MX-6410-02AG wire-board 2 1x2 socket gold-plated straight 4 250 white
MX-6410-03A wire-board 3 1x3 socket tinned straight 4 250 -
MX-6410-04A wire-board 4 1x4 socket tinned straight 4 250 -
MX-6410-04AG wire-board 4 1x4 socket gold-plated straight 4 250 -
MX-6410-05A wire-board 5 1x5 socket tinned straight 4 250 -
MX-6410-05AG wire-board 5 1x5 socket gold-plated straight - - white
MX-6410-06A wire-board 6 1x6 socket tinned straight 4 250 -
MX-6410-06AG wire-board 6 1x6 socket gold-plated straight - - white
MX-6410-07A wire-board 7 1x7 socket tinned straight 4 250 -
MX-6410-07AG wire-board 7 1x7 socket gold-plated straight - - -
MX-6410-08A wire-board 8 1x8 socket tinned straight 4 250 -
MX-6410-08AG wire-board 8 1x8 socket gold-plated straight - - white
MX-6410-09A wire-board 9 1x9 socket tinned straight - - white
MX-6410-10A wire-board 10 1x10 socket tinned straight 4 250 -
MX-6410-12A wire-board 12 1x12 socket tinned straight 4 250 -
MX-6410-14A wire-board 14 1x14 socket tinned straight 4 250 -
MX-6410-15A wire-board 15 1x15 socket tinned straight 4 250 -
MX-6410-16A wire-board 16 1x16 socket tinned straight 4 250 white
MX-7395-02B wire-board 2 1x2 socket tinned angled 90° 4 250 white
MX-7395-03B wire-board 3 1x3 socket tinned angled 90° 4 250 white
MX-7395-03BG wire-board 3 1x3 socket gold-plated angled 90° 4 250 white
MX-7395-04B wire-board 4 1x4 socket tinned angled 90° 4 250 white
MX-7395-04BG wire-board 4 1x4 socket gold-plated angled 90° 4 250 white
MX-7395-05B wire-board 5 1x5 socket tinned angled 90° 4 250 white
MX-7395-05BG wire-board 5 1x5 socket gold-plated angled 90° 4 250 white
MX-7395-06B wire-board 6 1x6 socket tinned angled 90° 4 250 white
MX-7395-06BG wire-board 6 1x6 socket gold-plated angled 90° 4 250 white
MX-7395-07B wire-board 7 1x7 socket tinned angled 90° 4 250 white
MX-7395-07BG wire-board 7 1x7 socket gold-plated angled 90° 4 250 white
MX-7395-08B wire-board 8 1x8 socket tinned angled 90° 4 250 white
MX-7395-08BG wire-board 8 1x8 socket gold-plated angled 90° 4 250 white
Symbol: (MX-17185xxx, MX-22-05-xxx, MX-22-11-xxx, MX-22-23-2021, MX-22-23-2031, MX-22-23-2041, MX-22-23-2051, MX-22-23-2061, MX-22-23-2081, MX-22-29-2091, MX-6410-02A, MX-6410-02AG, MX-6410-05AG, MX-6410-06AG, MX-6410-08AG, MX-6410-09A, MX-6410-16A, MX-7395-0xxx)
Connector variantsnapped-in
Related frames:
Plug; wire-board; MOLEX
