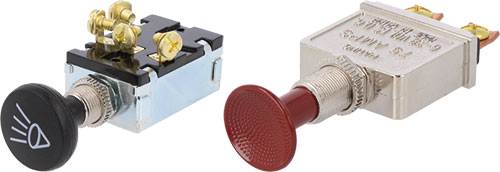

Switch: push-pull; on panel; SCI
| Manufacturer | SCI |
| Type of switch | push-pull |
| Mounting | on panel |
| Operating temperature | -25...70°C |
| Button shape | round, prominent |
| Symbol: (A3-20BA-07) | |
|---|---|
| Leads | M4 screws |
| Mounting hole diameter | Ø12.2mm |
| Manufacturer series | A3-20 |
| Symbol: (A3-30L, A3-30L2) | |
| Leads | M4 screws |
| Mounting hole diameter | Ø12.2mm |
| Manufacturer series | A3-30 |
| Symbol: (A3-30L3B-01) | |
| Leads | connectors |
| Mounting hole diameter | Ø14.2mm |
| Manufacturer series | A3-30 |
| Leads dimensions | 6.3x0.8mm |
| Symbol: (A3-32-B-14, A3-32-R-14) | |
| Leads | M4 screws |
| Mounting hole diameter | Ø12.2mm |
| Manufacturer series | A3-32 |
| Symbol: (A3-5BA-06, A3-5BB-06) | |
| Leads | M3 screws |
| Mounting hole diameter | Ø8.5mm |
| Manufacturer series | A3-5 |
| Symbol | DC load rating @R* | Body dimensions | Panel thickness | Dimensions | Actuator colour | Backlight colour | Illumination | Positions | Switch. method** |
|---|---|---|---|---|---|---|---|---|---|
| [mm] | [mm] | ||||||||

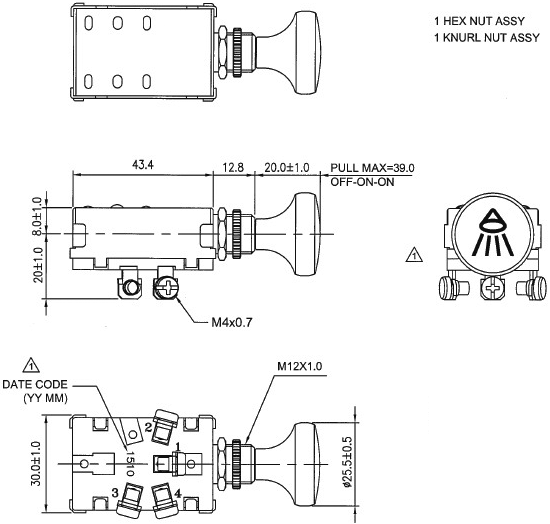

| A3-20BA-07 | 30A / 12V DC | 30x16x43.4 | max. 6 | Fig. 1. | black | - | none | 3 | OFF-ON-ON |

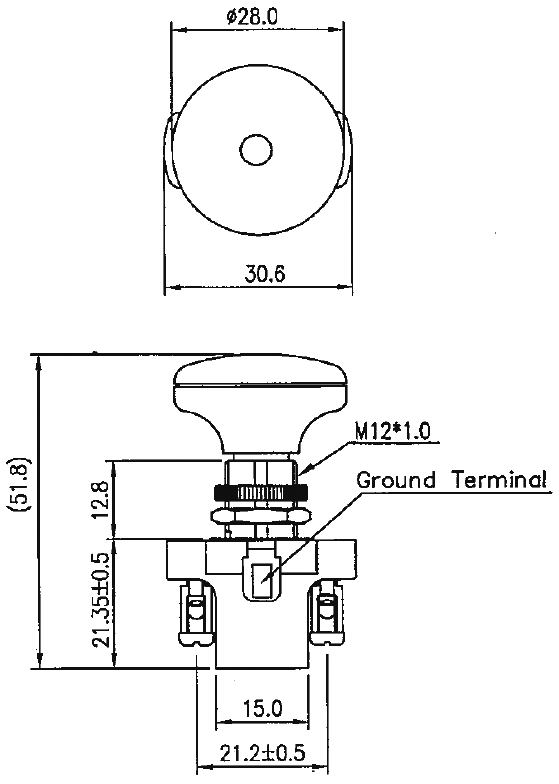

| A3-30L | 10A / 14V DC | - | max. 6 | Fig. 2. | black | red | LED | 2 | OFF-ON |

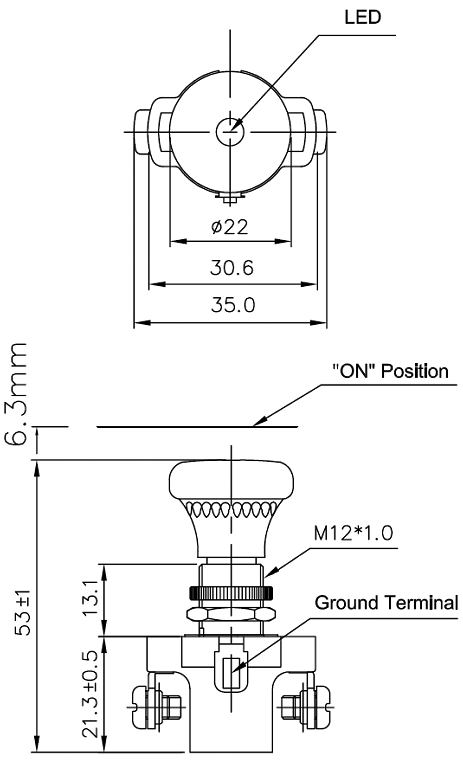

| A3-30L2 | 10A / 14V DC | - | max. 6 | Fig. 3. | black | green | LED | 2 | OFF-ON |

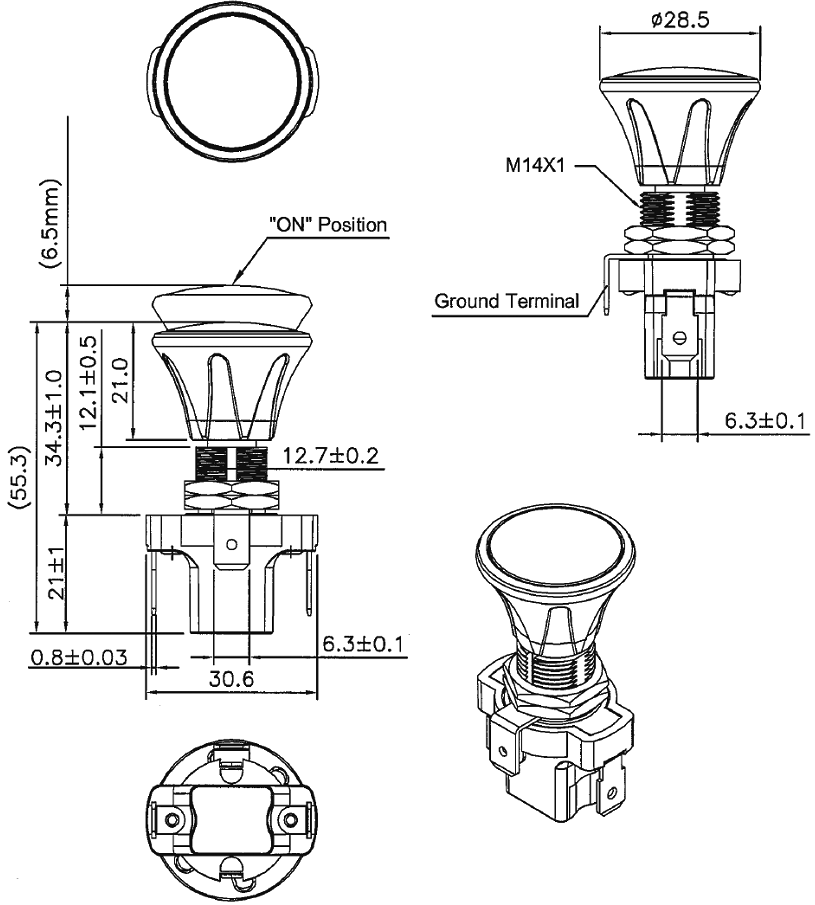

| A3-30L3B-01 | 10A / 14V DC | - | max. 6 | Fig. 4. | green | green | LED | 2 | OFF-ON |

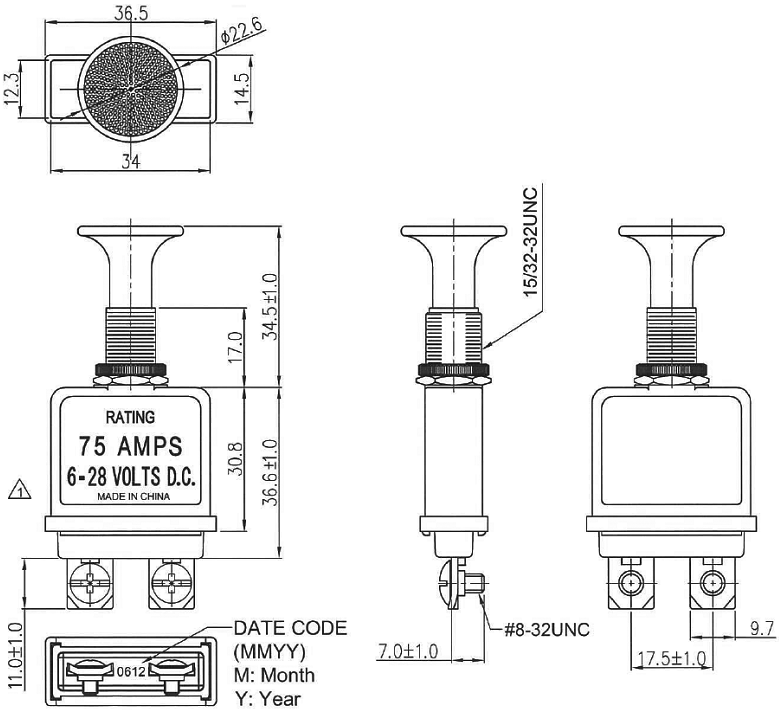

| A3-32-B-14 | 75A / 12V DC | 12.3x36.5x36.6 | max. 10 | Fig. 5. | red | - | none | 2 | OFF-ON |
| A3-32-R-14 | 75A / 12V DC | 12.3x36.5x36.6 | max. 10 | Fig. 5. | black | - | none | 2 | OFF-ON |

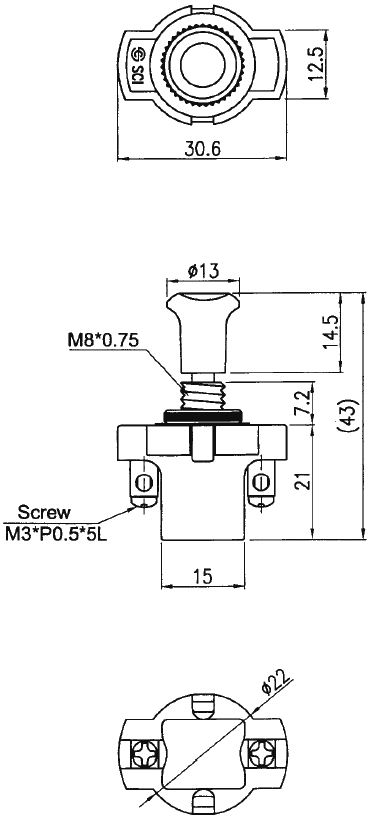

| A3-5BA-06 | 10A / 12V DC | 12.5x30.6x21 | max. 15.7 | Fig. 6. | black | - | none | 2 | OFF-ON |
| A3-5BB-06 | 10A / 12V DC | 12.5x30.6x21 | max. 2.2 | Fig. 6. | black | - | none | 2 | OFF-ON |
* at resistive load
** the position in bracket indicates momentary position.
** the position in bracket indicates momentary position.
