Solid state relays, LH series


Equipped with current limiting circuit.
Solid state relays, LH series, LH1503AB, LH1500AAB, LH1500AABTR, LH1500AT, LH1505AAC |EN|
ManufacturerVISHAY
Type of relaysolid state
Icntrl max50mA
Operating temperature-40...85°C
Manufacturer seriesLH
Symbol Case Ioper. max Switched voltage Rds(on) toff ton/off Output configuration
[mA] [V] [Ω] [s] [s]

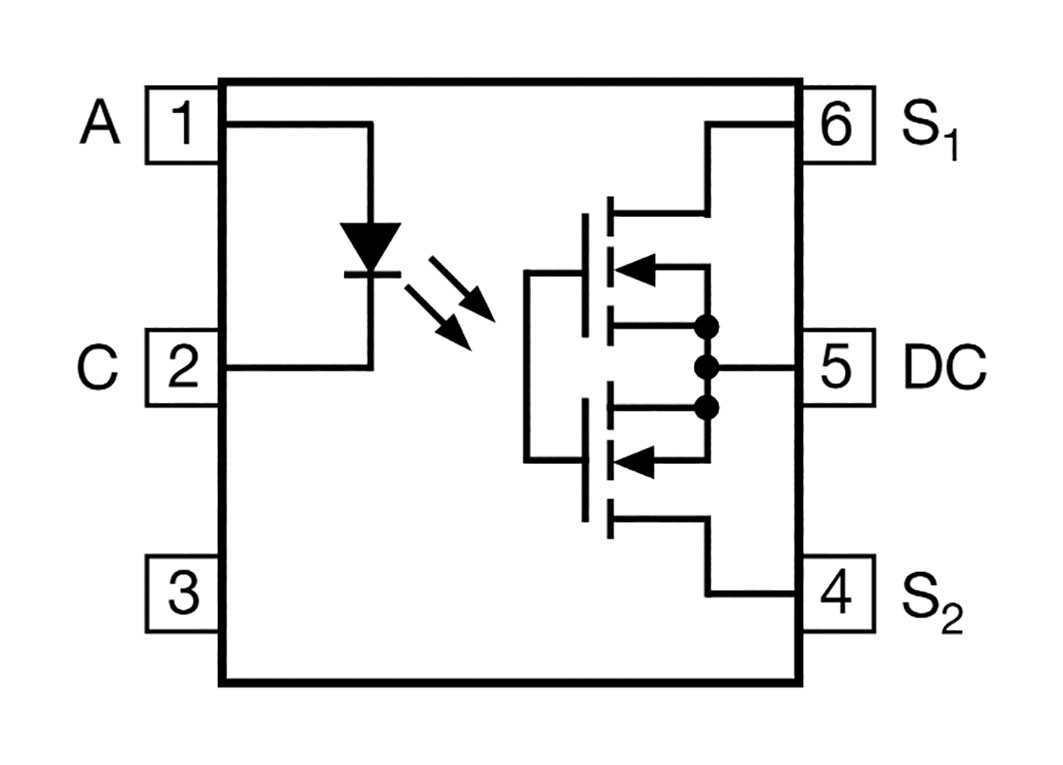

LH1500AABTR SMD6 140 max. 350 22 50µ 130µ Fig. 1.
LH1500AT DIP6 140 max. 350 22 50µ 130µ Fig. 1.

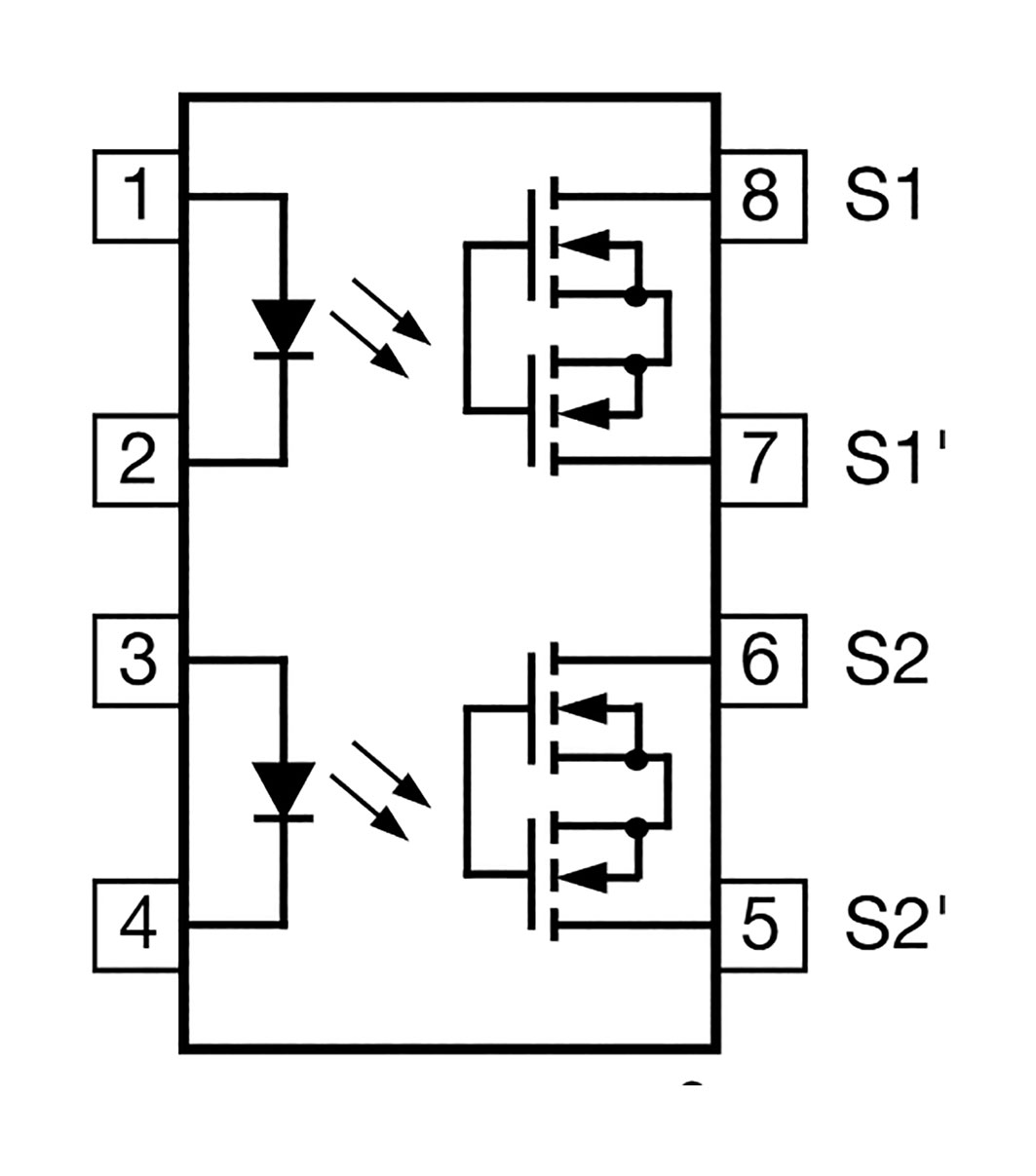

LH1505AACTR SMD8 120 max. 250 12 30µ 200µ Fig. 2.
LH1505AB DIP8 120 max. 250 12 30µ 200µ Fig. 2.

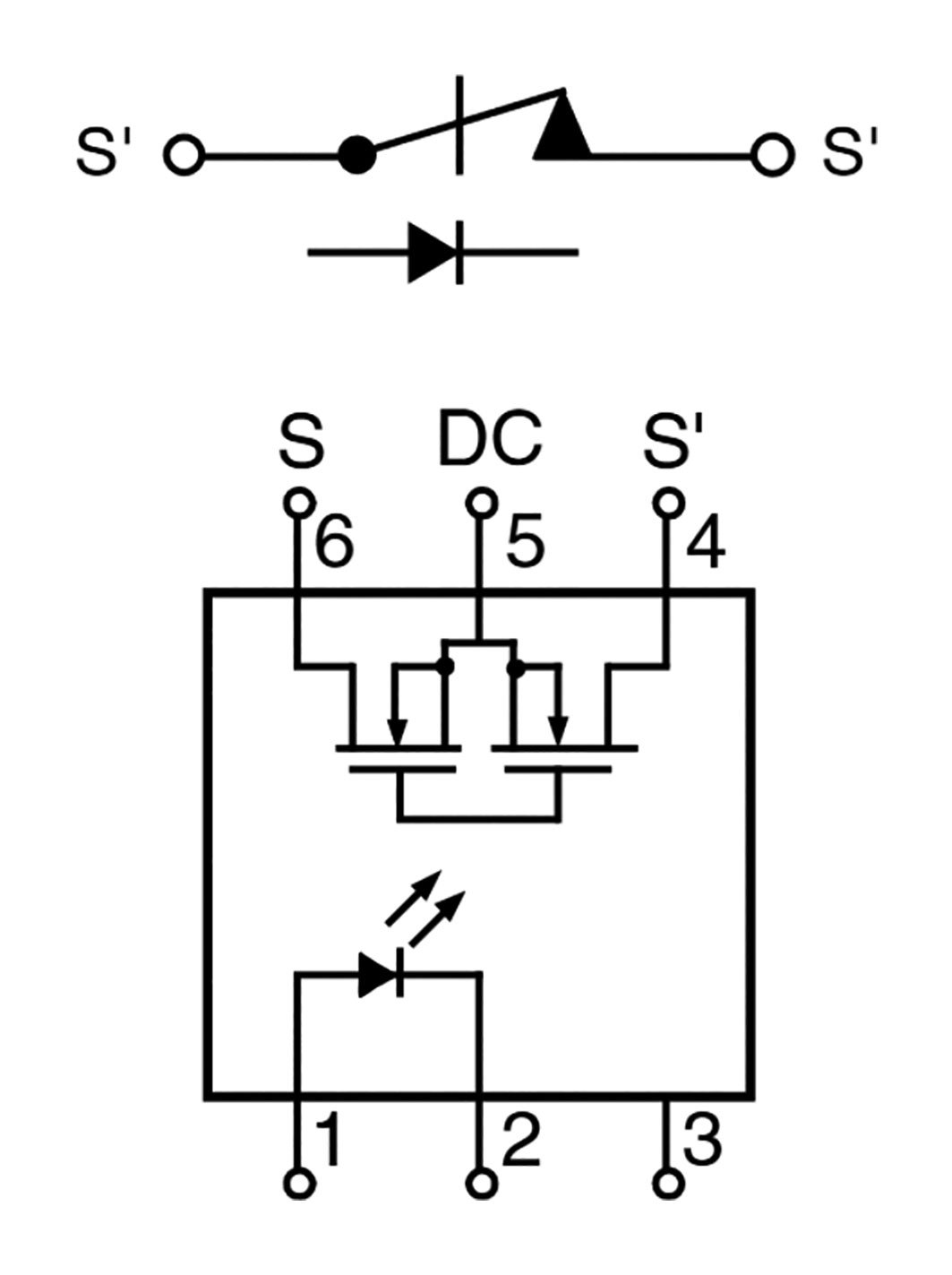

LH1501BAB SMD6 150 max. 350 20 1m 2m Fig. 3.
LH1501BABTR SMD6 150 max. 350 20 1m 2m Fig. 3.
LH1501BT DIP6 150 max. 350 20 1m 2m Fig. 3.

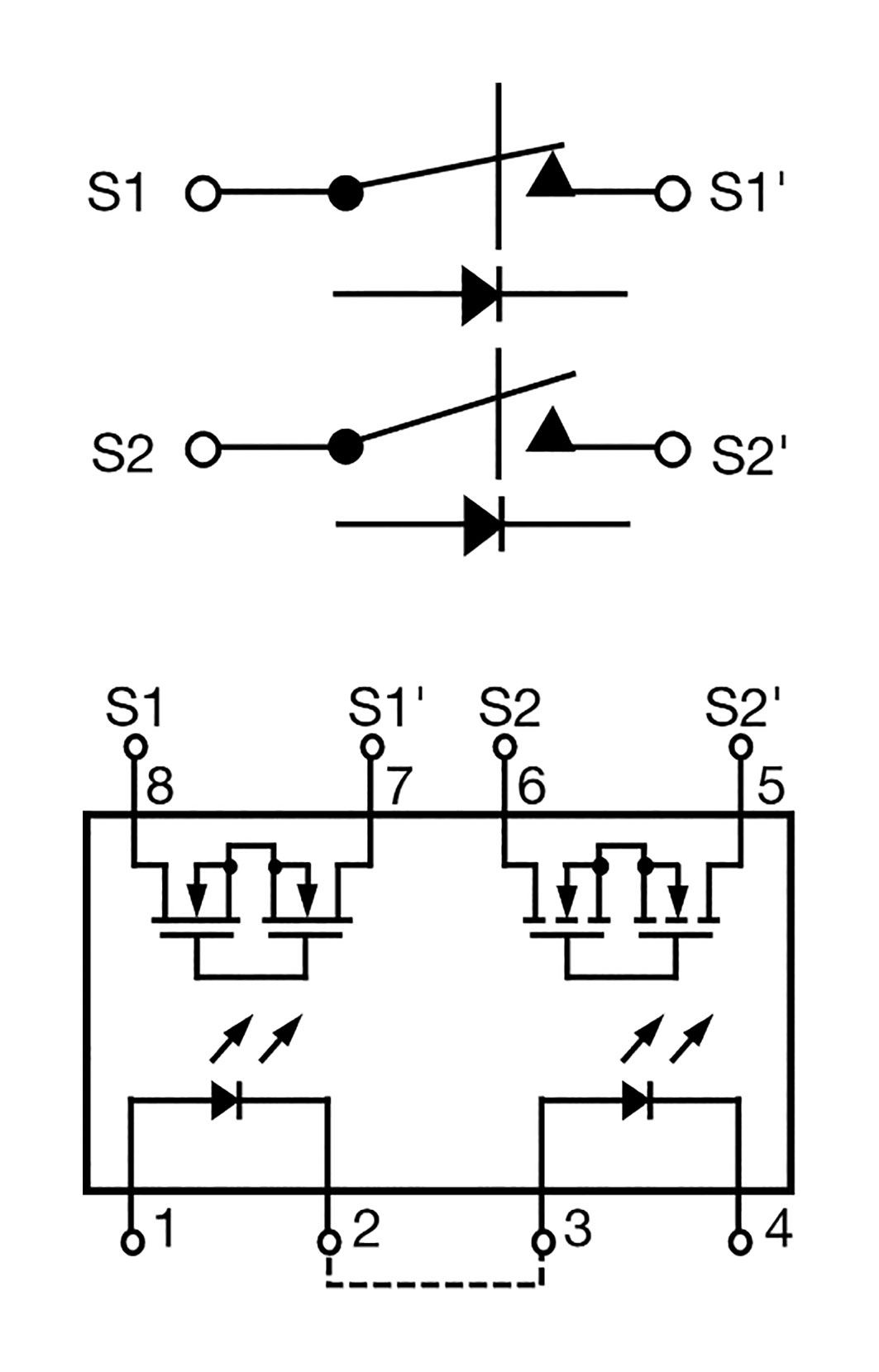

LH1502BAC SMD8 150 max. 350 20 - - Fig. 4.
LH1502BACTR SMD8 150 max. 350 20 - - Fig. 4.
LH1502BB DIP8 150 max. 350 20 - - Fig. 4.
LH1510AAB SMD6 200 max. 200 12 30µ 200µ Fig. 1.
LH1510AABTR SMD6 200 max. 200 12 30µ 200µ Fig. 1.
LH1510AT DIP6 200 max. 200 12 30µ 200µ Fig. 1.

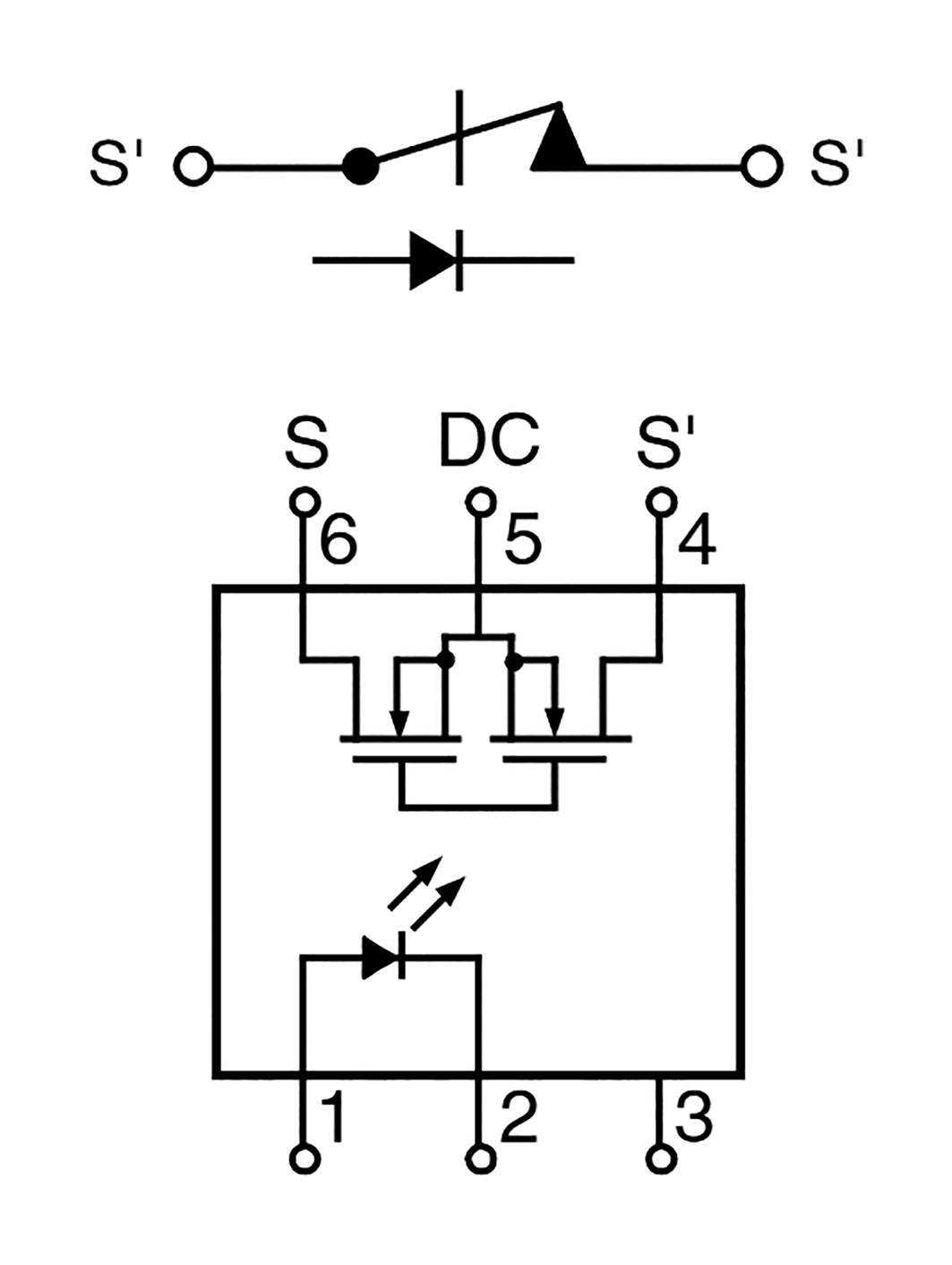

LH1511BAB SMD6 200 max. 200 10 1m 1.2m Fig. 5.
LH1511BABTR SMD6 200 max. 200 10 1m 1.2m Fig. 5.
LH1511BT DIP6 200 max. 200 10 1m 1.2m Fig. 5.
LH1512BAC SMD8 200 max. 200 10 - - Fig. 4.
LH1512BACTR SMD8 200 max. 200 10 - - Fig. 4.
LH1512BB DIP8 200 max. 200 10 - - Fig. 4.
LH1518AAB SMD6 155 max. 250 12 30µ 200µ Fig. 1.
LH1518AABTR SMD6 155 max. 250 12 30µ 200µ Fig. 1.
LH1518AT DIP6 155 max. 250 12 30µ 200µ Fig. 1.
LH1520AAC SMD8 100 max. 350 22 50µ 130µ Fig. 2.
LH1520AACTR SMD8 100 max. 350 22 50µ 130µ Fig. 2.
LH1520AB DIP8 100 max. 350 22 50µ 130µ Fig. 2.

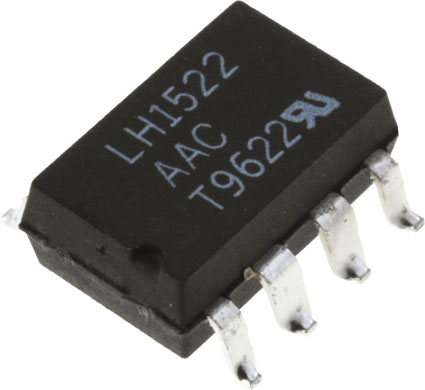

LH1522AAC SMD8 140 max. 200 12 40µ 200µ Fig. 2.
LH1522AACTR SMD8 140 max. 200 12 40µ 200µ Fig. 2.
LH1522AB DIP8 140 max. 200 12 40µ 200µ Fig. 2.
LH1525AAB SMD6 125 max. 400 22 - - Fig. 1.
LH1525AABTR SMD6 125 max. 400 22 - - Fig. 1.
LH1525AT DIP6 125 max. 400 22 - - Fig. 1.
LH1526AAC SMD8 100 max. 400 22 - - Fig. 2.
LH1526AACTR SMD8 100 max. 400 22 - - Fig. 2.
LH1526AB DIP8 100 max. 400 22 - - Fig. 2.
LH1540AAB SMD6 120 max. 350 22 50µ 130µ Fig. 1.
LH1540AABTR SMD6 120 max. 350 22 50µ 130µ Fig. 1.
LH1540AT DIP6 120 max. 350 22 50µ 130µ Fig. 1.
LH1546AABTR SMD6 120 max. 350 22 50µ 130µ Fig. 1.
LH1546AT DIP6 120 max. 350 22 50µ 130µ Fig. 1.
LH1546ADFTR SMD4 120 max. 350 22 50µ 130µ Fig. 1.
LH1546ADF DIP4 120 max. 350 22 50µ 130µ Fig. 1.
LH1546AEFTR SOP4 120 max. 350 22 50µ 200µ Fig. 1.
LH1546AEF SOP4 120 max. 350 22 50µ 200µ Fig. 1.
Mounting:
Insulation voltage:
Control voltage:
