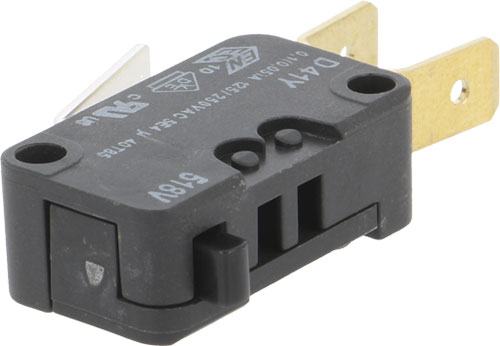

Microswitch SNAP ACTION; Manufacturer: ZF; Manufacturer series: D4
| Manufacturer | ZF |
| Type of switch | microswitch SNAP ACTION |
| Positions | 2 |
| Manufacturer series | D4 |
| Contacts layout | SPDT |
| Body dimensions | 27.8x10.3x15.9mm |
| Switch. method* | ON-(ON) |
| IP rating | IP40 |
* the position in bracket indicates momentary position.
| Symbol | Operating temperature | Body col. | AC load rating @R* | Operating Force | Leads | Features | Mechanical durability | Elect. life | Contact material | Leads dimensions |
|---|---|---|---|---|---|---|---|---|---|---|
| [°C] | [N] | [mm] | ||||||||
| D413-V1RA | -40...85 | - | 0.1A / 250V AC | 1.7 | connectors | with lever (with roller) | 1000000 cycles | 50000 cycles | AuAgPt | 6.3x0.8 |
| D413-V3AA | -40...85 | black | 0.1A / 250V AC | 1.7 | connectors | without lever | 1000000 cycles | 50000 cycles | AuAgPt | 6.3x0.8 |
| D413-V3LD | -40...85 | - | 0.1A / 250V AC | 1.7 | connectors | with lever | 1000000 cycles | 50000 cycles | AuAgPt | 6.3x0.8 |
| D413-V3RD | -40...85 | - | 0.1A / 250V AC | 1.7 | connectors | with lever (with roller) | 1000000 cycles | 50000 cycles | AuAgPt | 6.3x0.8 |
| D419-Q1AA | -40...85 | - | 0.1A / 250V AC | 0.45 | connectors | without lever | 1000000 cycles | 50000 cycles | AuAgPt | 4.8x0.8 |
| D419-Q1LD | -40...85 | - | 0.1A / 250V AC | 0.45 | connectors | with lever | 1000000 cycles | 50000 cycles | AuAgPt | 4.8x0.8 |
| D419-V3AA | -40...85 | black | 0.1A / 250V AC | 0.45 | connectors | without lever | 1000000 cycles | 50000 cycles | AuAgPt | 6.3x0.8 |
| D41R-V1AA | -40...125 | - | 0.1A / 250V AC | 0.45 | connectors | without lever | 1000000 cycles | 50000 cycles | AuAgPt | 6.3x0.8 |
| D439-V3AA | -40...85 | - | 6A / 250V AC | 0.45 | connectors | without lever | 250000 cycles | 50000 cycles | AgNi | 6.3x0.8 |
| D443-V3LD | -40...85 | - | 10A / 250V AC | 2.85 | connectors | with lever (with roller) | 1000000 cycles | 50000 cycles | AgNi | 6.3x0.8 |
| D449-V3AA | -40...85 | black | 10A / 250V AC | 0.75 | connectors | without lever | 250000 cycles | 50000 cycles | AgNi | 6.3x0.8 |
| D44M-V1RD | -40...125 | - | 10A / 250V AC | 0.75 | connectors | with lever (with roller) | 250000 cycles | 50000 cycles | AgNi | 6.3x0.8 |
| D453-B8AA | -40...85 | black | 16A / 250V AC | 4 | for soldering | without lever | 1000000 cycles | 50000 cycles | AgNi | - |
| D453-P4AA | -40...85 | - | 16A / 250V AC | 4 | for PCB | without lever | 1000000 cycles | 50000 cycles | AgNi | - |
| D453-V1AA | -40...85 | - | 16A / 250V AC | 4 | connectors | without lever | 1000000 cycles | 50000 cycles | AgNi | 6.3x0.8 |
| D453-V1RA | -40...85 | black | 16A / 250V AC | 4 | connectors | with lever (with roller) | 1000000 cycles | 50000 cycles | AgNi | 6.3x0.8 |
| D453-V3LL | -40...85 | black | 16A / 250V AC | 4 | connectors | with lever | 1000000 cycles | 50000 cycles | AgNi | 6.3x0.8 |
| D459-B8AA | -40...85 | black | 16A / 250V AC | 1 | for soldering | without lever | 250000 cycles | 50000 cycles | AgNi | - |
| D459-B8LD | -40...85 | - | 16A / 250V AC | 1 | for soldering | with lever | 250000 cycles | 50000 cycles | AgNi | - |
| D459-PAAA | -40...85 | - | 16A / 250V AC | 1 | for PCB | without lever | 250000 cycles | 50000 cycles | AgNi | - |
| D459-PBAA | -40...85 | - | 16A / 250V AC | 1 | for PCB | without lever | 250000 cycles | 50000 cycles | AgNi | - |
| D459-V3AA | -40...85 | black | 16A / 250V AC | 1 | connectors | without lever | 250000 cycles | 50000 cycles | AgNi | 6.3x0.8 |
| D459-V3LD | -40...85 | black | 16A / 250V AC | 1 | connectors | with lever | 250000 cycles | 50000 cycles | AgNi | 6.3x0.8 |
| D459-V3LL | -40...85 | black | 16A / 250V AC | 1 | connectors | with lever | 250000 cycles | 50000 cycles | AgNi | 6.3x0.8 |
| D459-V3RA | -40...85 | black | 16A / 250V AC | 1 | connectors | with lever (with roller) | 250000 cycles | 50000 cycles | AgNi | 6.3x0.8 |
| D459-V3RD | -40...85 | black | 16A / 250V AC | 1 | connectors | with lever (with roller) | 250000 cycles | 50000 cycles | AgNi | 6.3x0.8 |
| D45U-V3LD | -40...150 | - | 16A / 250V AC | 1 | connectors | with lever | 250000 cycles | 50000 cycles | AgNi | 6.3x0.8 |
| D45U-V3LL | -40...150 | - | 16A / 250V AC | 1 | connectors | with lever | 250000 cycles | 50000 cycles | AgNi | 6.3x0.8 |
| D45U-V3RA | -40...150 | black | 16A / 250V AC | 1 | connectors | with lever (with roller) | 250000 cycles | 50000 cycles | AgNi | 6.3x0.8 |
| D489-S1AA | -40...85 | - | 21A / 250V AC | 1.5 | for soldering | without lever | 250000 cycles | 10000 cycles | AgNi | - |
| D489-V3AA | -40...85 | black | 21A / 250V AC | 1.5 | connectors | without lever | 250000 cycles | 10000 cycles | AgNi | 6.3x0.8 |
| D489-V3LD | -40...85 | black | 21A / 250V AC | 1.5 | connectors | with lever | 250000 cycles | 10000 cycles | AgNi | 6.3x0.8 |
| D489-V3RA | -40...85 | - | 21A / 250V AC | 1.5 | connectors | with lever (with roller) | 250000 cycles | 10000 cycles | AgNi | 6.3x0.8 |
| D489-V3RD | -40...85 | - | 21A / 250V AC | 1.5 | connectors | with lever (with roller) | 250000 cycles | 10000 cycles | AgNi | 6.3x0.8 |
* at resistive load
