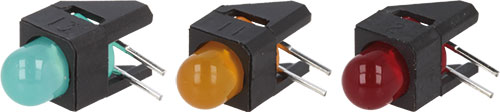

Broadcom LED indicators
| Manufacturer | BROADCOM (AVAGO) |
| Type of diode | LED |
| Mounting | THT |
| Symbol | ØLED | Lens | Current | Operating voltage | View. angle |
|---|---|---|---|---|---|
| [mm] | [mA] | [V DC] | [°] | ||
| HLMP-1301-E00A1 | 3 | red, diffused | 10 | 1.5...2.4 | 60 |
| HLMP-1301-E00A2 | 3 | red, diffused | 10 | 1.5...2.4 | 60 |
| HLMP-1401-D00A1 | 3 | diffused, yellow | 10 | 1.5...2.4 | 60 |
| HLMP-1401-D00A2 | 3 | diffused, yellow | 10 | 2 | 60 |
| HLMP-1503-C00A1 | 3 | diffused, green | 10 | 1.5...2.7 | 60 |
| HLMP-1503-C00A2 | 3 | diffused, green | 10 | 1.5...2.7 | 60 |
| HLMP-1540-H00A1 | 3 | transparent | 20 | 1.5...3 | 45 |
| HLMP-1640-B00A1 | 3 | diffused, green | 10...20 | 5 | 60 |
| HLMP-1700-B00A1 | - | red, diffused | 2 | 1.7 | 50 |
| HLMP-1700-B00A2 | - | red, diffused | 2 | 1.7 | - |
| HLMP-1719-A00A2 | 3 | diffused, yellow | 2 | 1.8...2.5 | 50 |
| HLMP-1790-A00A2 | 3 | diffused, green | 2 | 1.9...2.2 | 50 |
| HLMP-3962-F00B2 | 5 | diffused, green | 10 | 2.1...2.7 | 60 |
| HLMP-4700-C00B2 | 5 | red, diffused | 2 | 1.7...2 | 50 |
| HLMP-4740-A00B2 | 5 | diffused, green | 2 | 1.9...2.2 | 50 |
| HLMP-6720-F0010 | 1.8 | diffused, yellow | 3.5...5 | 5...5 | 90 |
| Symbol | Variant | Front | Number of diodes | Colour | λd | Luminosity | Case | Operating temperature | Shape |
|---|---|---|---|---|---|---|---|---|---|
| [nm] | [mcd] | [°C] | |||||||
| HLMP-1301-E00A1 | in housing | convex | 1 | red | 626 | 3.4 | - | - | - |
| HLMP-1301-E00A2 | in housing | convex | 1 | red | 626 | 3.4 | - | - | - |
| HLMP-1401-D00A1 | in housing | convex | 1 | yellow | 585 | 2.2 | - | - | - |
| HLMP-1401-D00A2 | - | - | - | yellow | 585 | 10 | T1 | -40...100 | round |
| HLMP-1503-C00A1 | in housing | convex | 1 | green | 569 | 1 | - | - | - |
| HLMP-1503-C00A2 | in housing | convex | 1 | green | 569 | 1 | - | - | - |
| HLMP-1540-H00A1 | in housing | convex | 1 | green | 569 | 27.3...45 | - | - | - |
| HLMP-1640-B00A1 | in housing | convex | 1 | green | 569 | 1.6 | - | - | - |
| HLMP-1700-B00A1 | - | - | - | red | 626 | 2.1 | T1 | - | round |
| HLMP-1700-B00A2 | - | - | - | red | 626 | 2.1 | T1 | - | round |
| HLMP-1719-A00A2 | in housing | convex | 1 | yellow | 585 | 0.9...2.1 | - | - | - |
| HLMP-1790-A00A2 | in housing | convex | 1 | green | 569 | 1...2.3 | - | - | - |
| HLMP-3962-F00B2 | in housing | convex | 1 | green | 569 | 12 | - | - | - |
| HLMP-4700-C00B2 | in housing | convex | 1 | red | 626 | 1.5...2.3 | - | - | - |
| HLMP-4740-A00B2 | in housing | convex | 1 | green | 569 | 1...2.3 | - | - | - |
| HLMP-6720-F0010 | in housing | convex | 1 | yellow | 585 | 0.9...2 | - | - | - |
