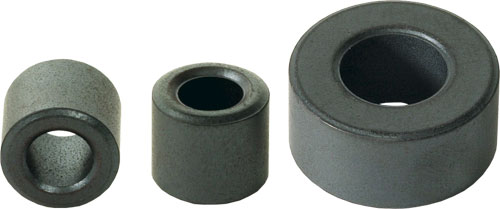

Toroidal core ferrites, RI-RT series, RI-RT09-05-08, RI-RT13-07-05, RI-RT20-12-10 |EN|

Symbol	Dimensions	Imp. @ 25MHz	Imp. @ 100MHz	Out. diam.	Int. dia.	L.
		[Ω]	[Ω]	[mm]	[mm]	[mm]
RI-RT20-12-10	Fig. 1.	40	68	20	12	10
RT-100-50-50	-	34	73	10	5	5
RT-100-60-40	-	20	42	10	6	4
RT-100-60-50	-	22	41	10	6	5
RT-100-60-62	-	25	49	10	6	6.2
RT-100-60-80	-	33	60	10	6	8
RT-100-70-70	-	22	44	10	7	7
RT-100-70-75	-	25	46	10	7	7.5
RT-103-58-102	-	40	67	10.3	5.8	10.2
RT-120-60-40	-	24	48	12	6	4
RT-120-60-60	-	34	58	12	6	6
RT-120-60-80	-	46	77	12	6	8
RT-120-70-55	-	26	49	12	7	5.5
RT-120-70-60	-	28	48	12	7	6
RT-125-80-120	-	36	58	12.5	8	12
RT-125-80-64	-	24	46	12.5	8	6
RT-130-70-30	-	17	39	13	7	3
RT-130-70-55	-	27	50	13	7	5.5
RT-130-70-60	-	28	51	13	7	6
RT-130-70-70	-	32	56	13	7	7
RT-140-80-50	-	26	50	14	8	5
RT-140-80-70	-	28	50	14	8	7
RT-140-90-50	-	19	37	14	9	5
RT-142-64-135	-	75	125	14.2	6.35	13.5
RT-142-80-120	-	49	76	14.2	8	12
RT-145-102-80	-	29	69	14.5	10.2	8
RT-150-105-120	-	37	62	15	10.5	12
RT-159-79-143	-	79	121	15.88	7.87	14.27
RT-160-100-100	-	43	85	16	10	10
RT-160-100-80	-	29	55	16	10	8
RT-160-120-150	-	33	58	16	12	15
RT-160-120-80	-	26	48	16	12	8
RT-160-80-120	-	59	95	16	8	12
RT-165-82-130	-	70	125	16.5	8.2	13
RT-165-82-160	-	83	140	16.5	8.2	16
RT-175-107-80	-	33	60	17.5	10.7	8
RT-175-95-135	-	63	115	17.5	9.5	14
RT-175-95-150	-	70	113	17.5	9.5	15
RT-175-95-50	-	22	44	17.5	10	5
RT-175-95-64	-	31	53	17.5	9.5	6
RT-180-100-100	-	47	77	18	10	10
RT-180-100-150	-	69	123	18	10	15
RT-180-100-60	-	31	55	18	10	6
RT-187-102-143	-	70	119	18.67	10.16	14.27
RT-187-102-170	-	75	125	18.67	10.16	17.02
RT-190-100-100	-	54	102	19	10	10
RT-190-120-100	-	37	78	19	12	10
RT-190-120-80	-	32	72	19	12	8
RT-200-100-100	-	50	82	20	10	10
RT-200-100-50	-	28	68	20	10	5
RT-200-120-100	-	40	68	20	12	10
RT-205-102-100	-	53	86	20.5	10.2	10
RT-212-127-60	-	27	52	21.2	12.7	6
RT-220-135-64	-	28	53	22	13.5	6.35
RT-220-135-80	-	37	78	22	13.5	8
RT-220-140-100	-	42	90	22	14	10
RT-220-140-120	-	40	85	22	14	12
RT-220-140-65	-	28	68	22	14	7
RT-220-140-80	-	33	73	22	14	8
RT-225-138-64	-	25	47	22.5	13.8	6.4
RT-236-114-140	-	80	133	23.6	11.4	14
RT-236-150-114	-	43	85	23.6	15	11
RT-236-150-60	-	26	70	23.6	15	6
RT-250-150-100	-	44	87	25	15	10
RT-250-150-120	-	53	97	25	15	12
RT-250-150-150	-	61	105	25	15	15
RT-254-127-64	-	39	80	25.4	12.7	6.35
RT-259-128-213	-	106	174	25.91	12.8	21.3
RT-260-130-127	-	74	125	26	13	12.7
RT-280-160-130	-	55	100	28	16	13
RT-280-160-170	-	71	120	28	16	17
RT-280-160-200	-	85	155	28	16	20
RT-280-160-75	-	33	59	28	16	8
RT-290-190-138	-	46	94	29	19	13.8
RT-290-190-75	-	26	70	29	19	7.5
RT-290-190-77	-	33	76	29	19	7.7
RT-30-10-20	-	20	42	3	1	2
RT-30-12-20	-	17	38	3	1.2	2
RT-310-190-160	-	68	115	31	19	16
RT-310-190-222	-	88	146	31	19	22
RT-310-190-70	-	35	77	31	19	7
RT-310-190-80	-	30	55	31	19	8
RT-35-10-30	-	29	50	3.5	1	3
RT-35-13-30	-	26	47	3.5	1.3	3
RT-35-13-33	-	27	48	3.5	1.3	3.25
RT-35-14-30	-	22	48	3.5	1.4	3
RT-35-14-33	-	26	49	3.5	1.4	3
RT-35-15-15	-	15	36	3.5	1.5	1.54
RT-35-15-30	-	21	42	3.5	1.5	3
RT-35-15-33	-	21	43	3.5	1.5	3.3
RT-35-17-30	-	17	38	3.5	1.7	3
RT-360-250-127	-	39	84	36	25	13
RT-360-250-70	-	23	63	36	25	7
RT-39-23-25	-	15	36	3.94	2.29	2.54
RT-40-20-30	-	20	41	4	2	3
RT-406-274-150	-	55	106	40.6	27.4	15
RT-41-16-40	-	31	55	4.1	1.6	4
RT-43-28-25	-	13	35	4.3	2.8	2.5
RT-45-25-32	-	18	37	4.5	2.5	3.2
RT-50-15-40	-	30	51	5	1.5	4
RT-50-20-40	-	30	46	5	2	4
RT-50-23-30	-	19	39	5	2.3	3
RT-594-348-128	-	58	118	59.4	34.8	12.8
RT-60-30-15	-	10	31	6	3	1.5
RT-60-30-20	-	15	35	6	3	2
RT-60-30-30	-	21	40	6	3	3
RT-60-30-38	-	22	43	6	3	3.8
RT-60-30-40	-	24	44	6	3	4
RT-60-30-55	-	31	51	6	3	5.5
RT-65-43-60	-	21	42	6.5	4.3	6
RT-70-35-40	-	23	46	7	3.5	4
RT-70-35-60	-	34	59	7	3.5	6
RT-76-52-62	-	21	40	7.6	5.2	6.2
RT-80-40-30	-	17	37	8	4	3
RT-80-40-60	-	33	57	8	4	6
RT-80-60-50	-	15	36	8	6	5
RT-85-50-30	-	16	34	8.5	5	3
RT-90-50-30	-	16	37	9	5	3
RT-90-50-80	-	38	64	9	5	8
RT-95-50-48	-	22	47	9.5	5	4.8

Type of ferrite	toroidal
Features	rounded edges
